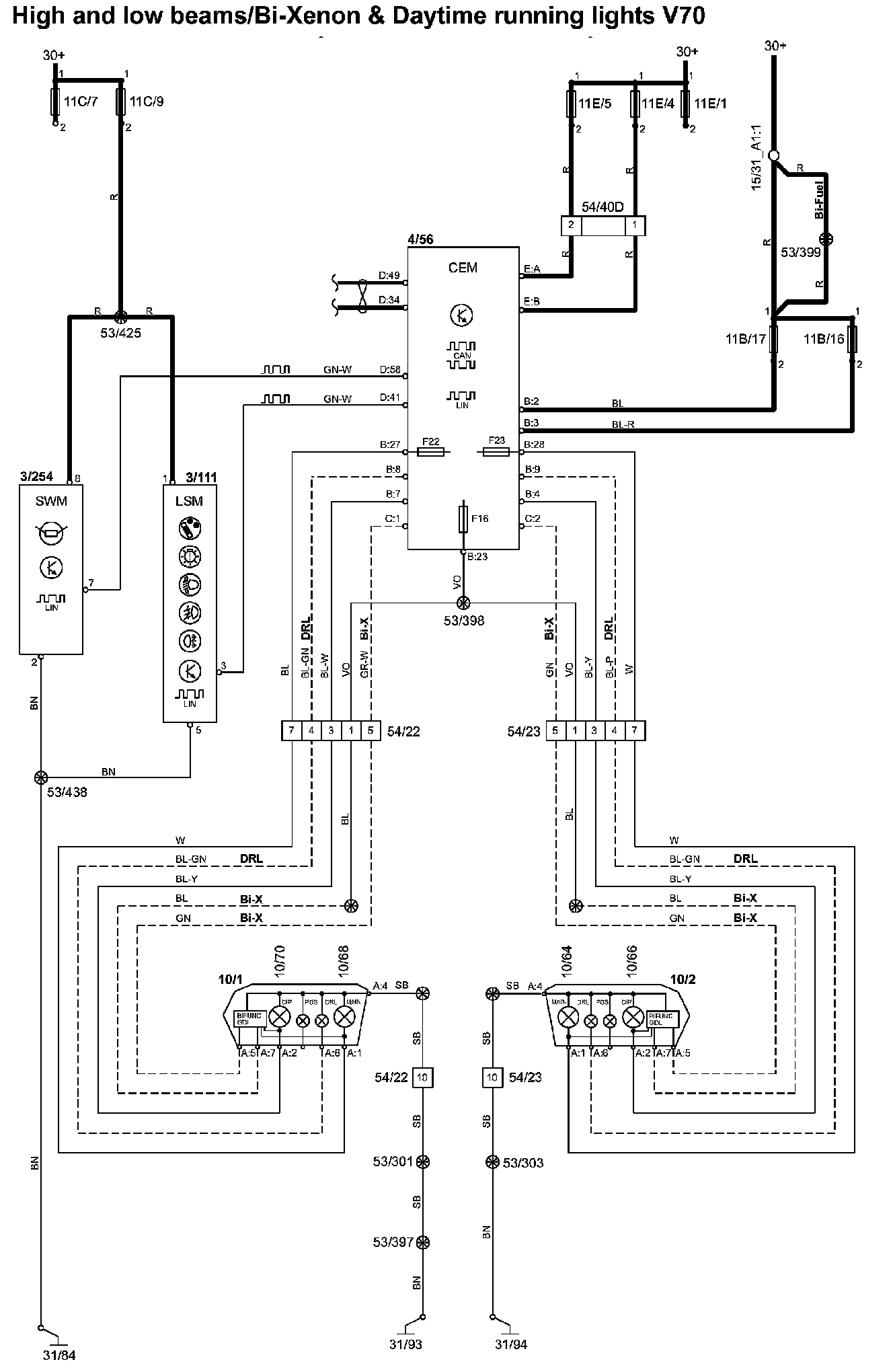

High and Low Beams/Bi-Xenon & Daytime Running Lights



High And Low Beams/Bi-Xenon & Daytime Running Lights


High And Low Beams/Bi-Xenon & Daytime Running Lights:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
