High and Low Beams/Bi-Xenon and Daytime Running Lights

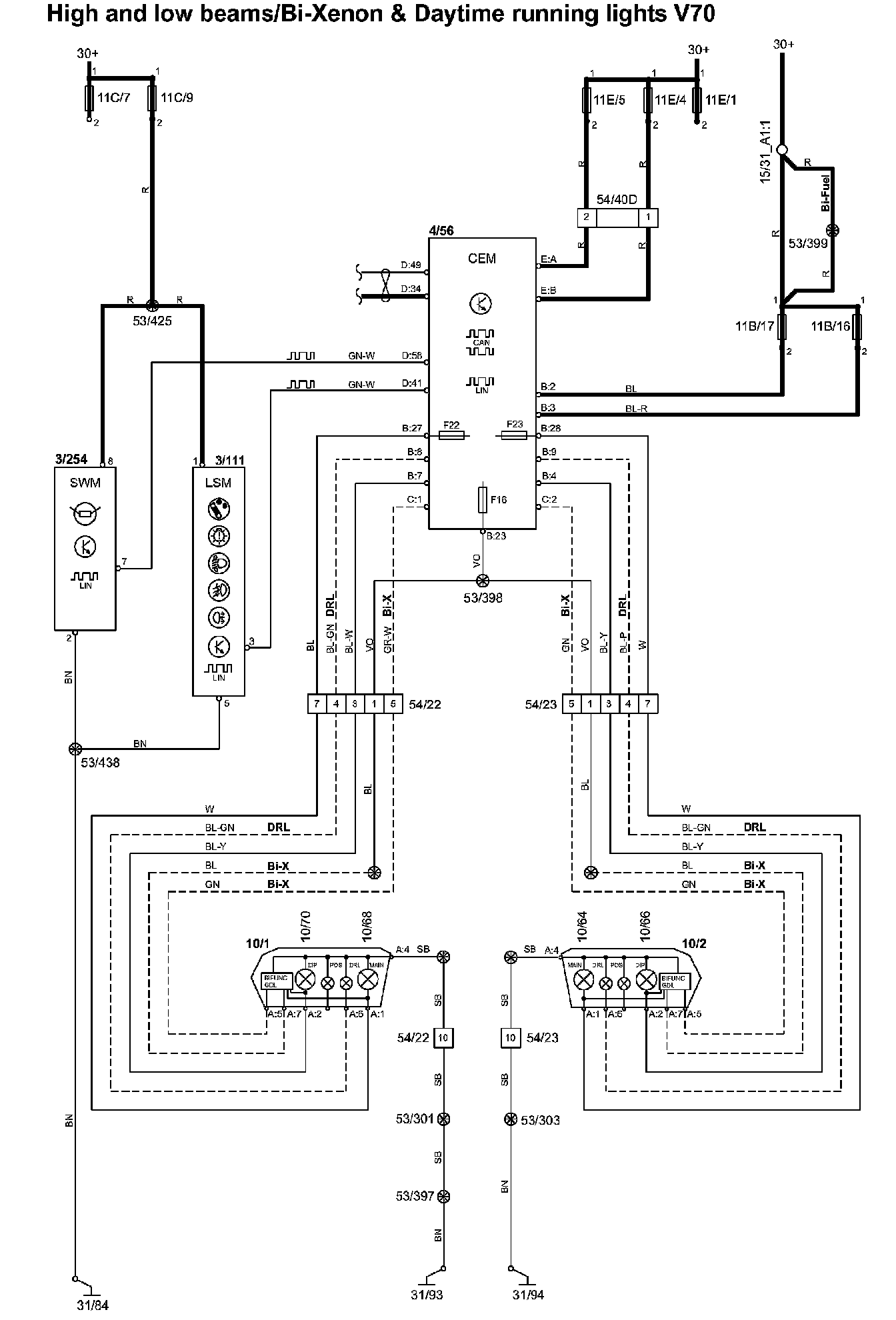

High And Low Beam/Bi-Xenon And Daytime Running Lights V70

High And Low Beams/Bi-Xenon & Daytime Running Lights:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and the Other Abbreviations

List of Components By Component Number: List of Components By Component Number
