Interior Lighting

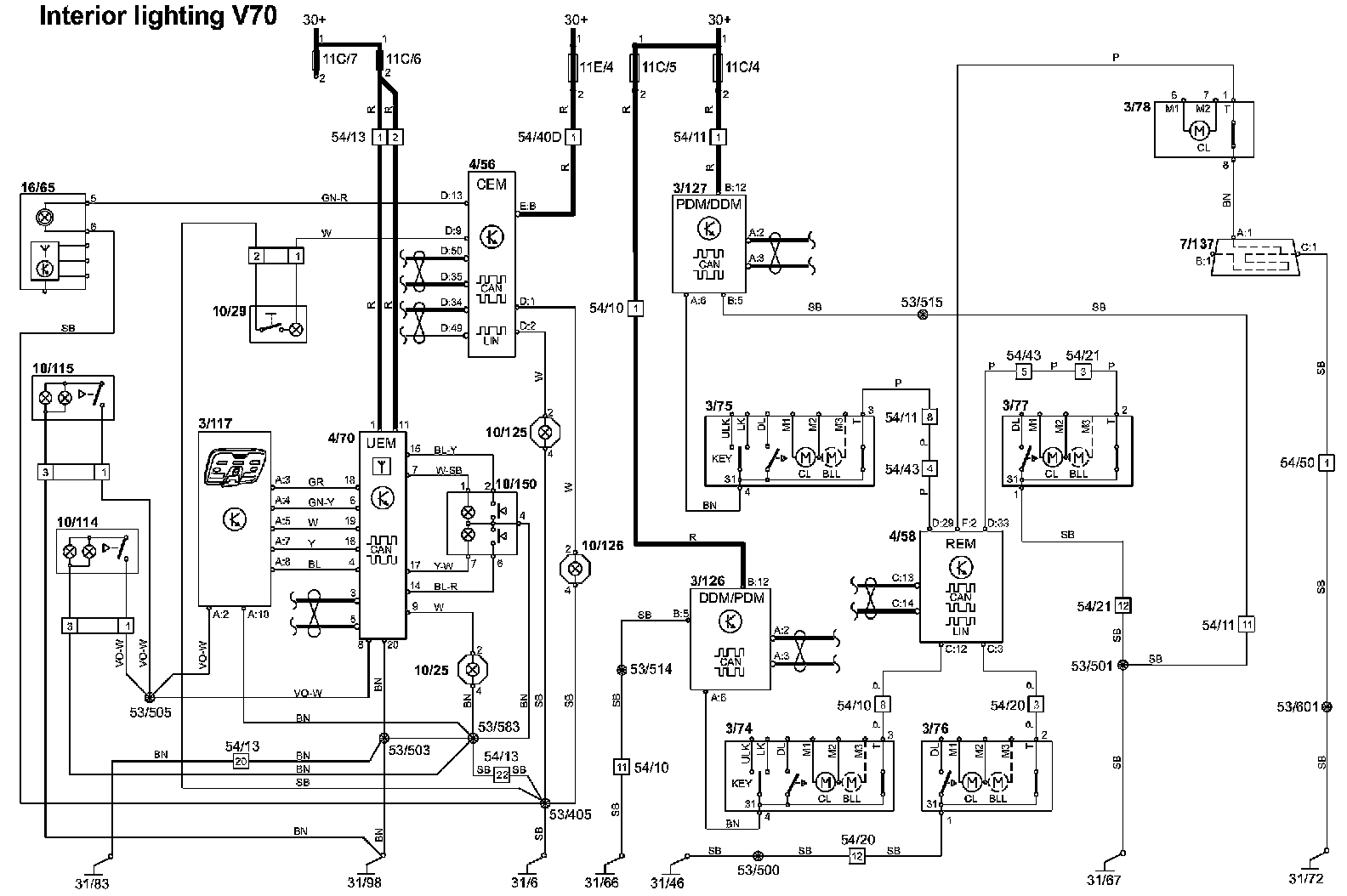

Interior Lighting V70


Interior Lighting:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and the Other Abbreviations

List of Components By Component Number: List of Components By Component Number
