Wiper/Washer Headlights

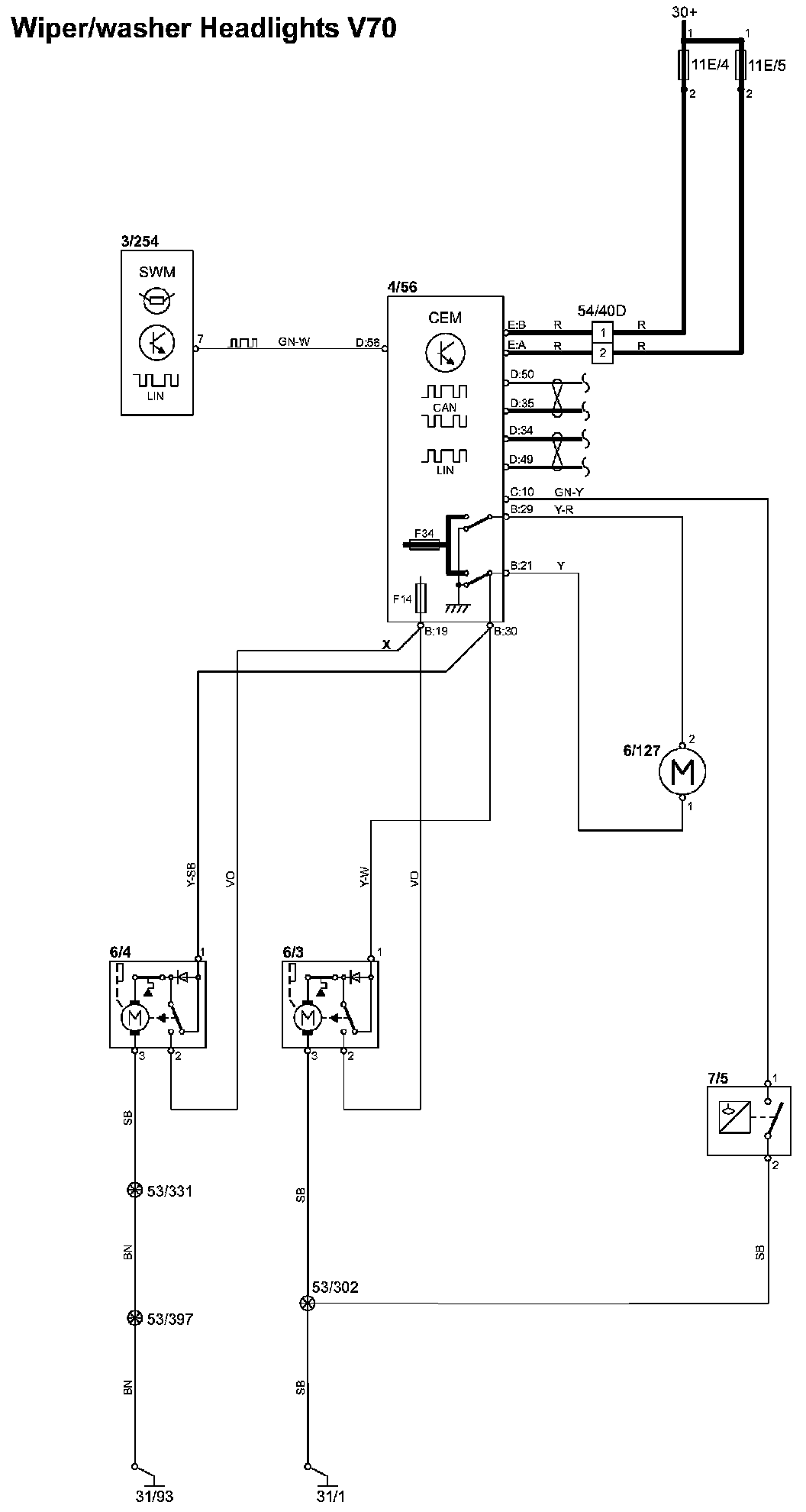

Wiper/Washer Headlights V70


Wiper/Washer Headlights:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and the Other Abbreviations

List of Components By Component Number: List of Components By Component Number
