Changes Introduced Up to and Including April 2006

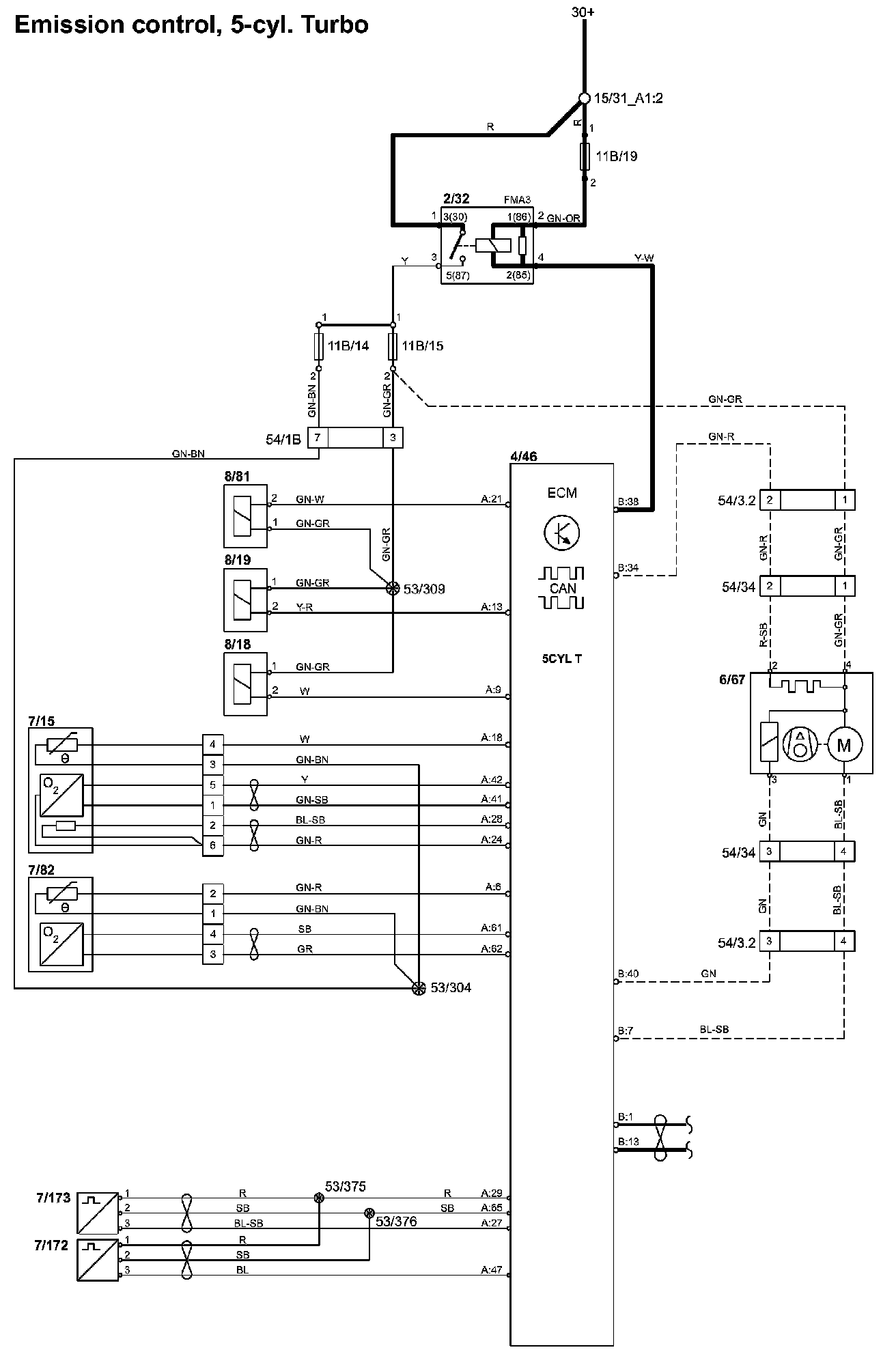

Emission Control, 5-cyl. Turbo


Emission Control:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and the Other Abbreviations

List of Components By Component Number: List of Components By Component Number
