Data Communication Low Speed CAN

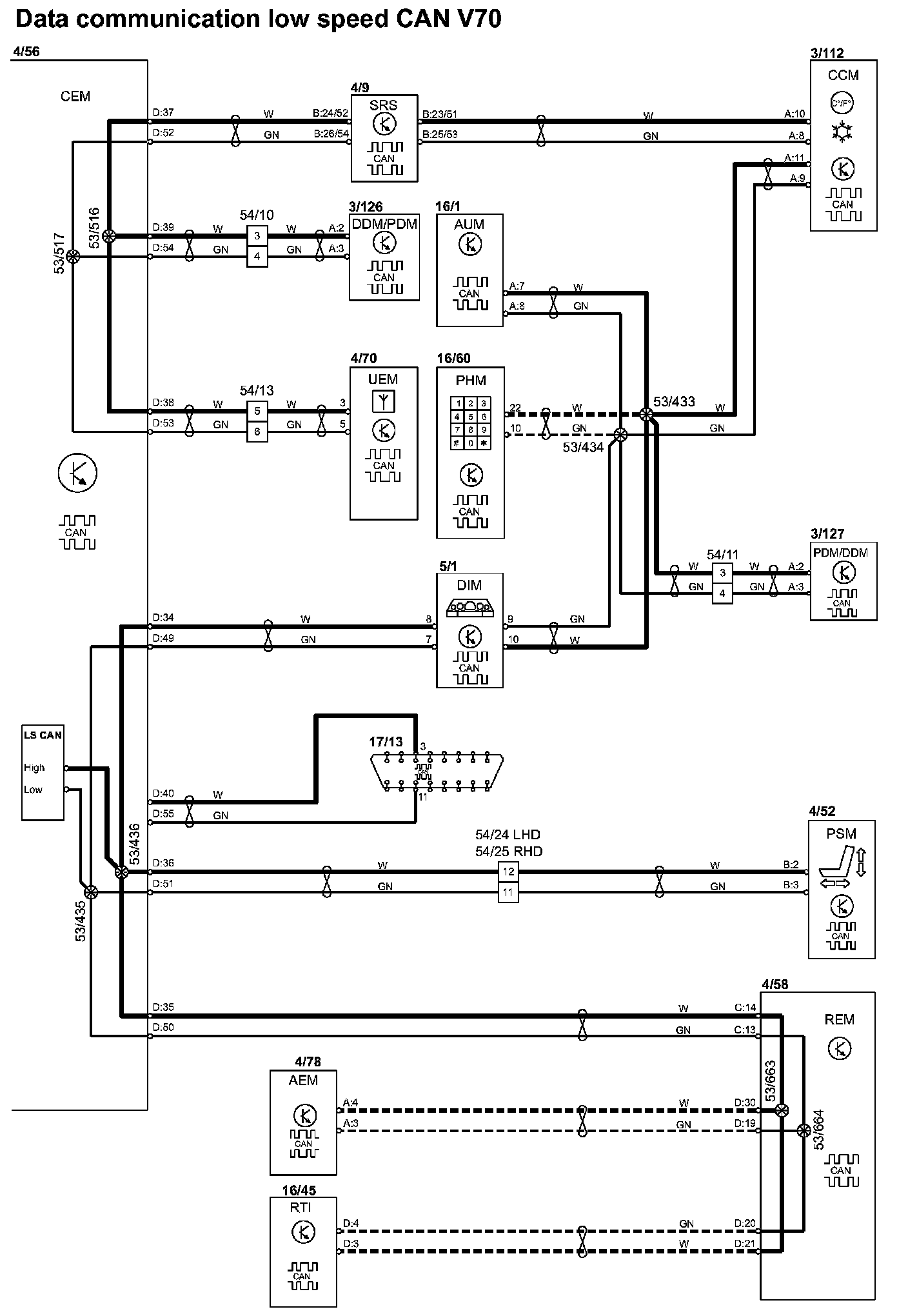

Data Communication Low Speed CAN V70


Data Communication Low Speed CAN:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
