Data Communication LIN



Data Communication LIN

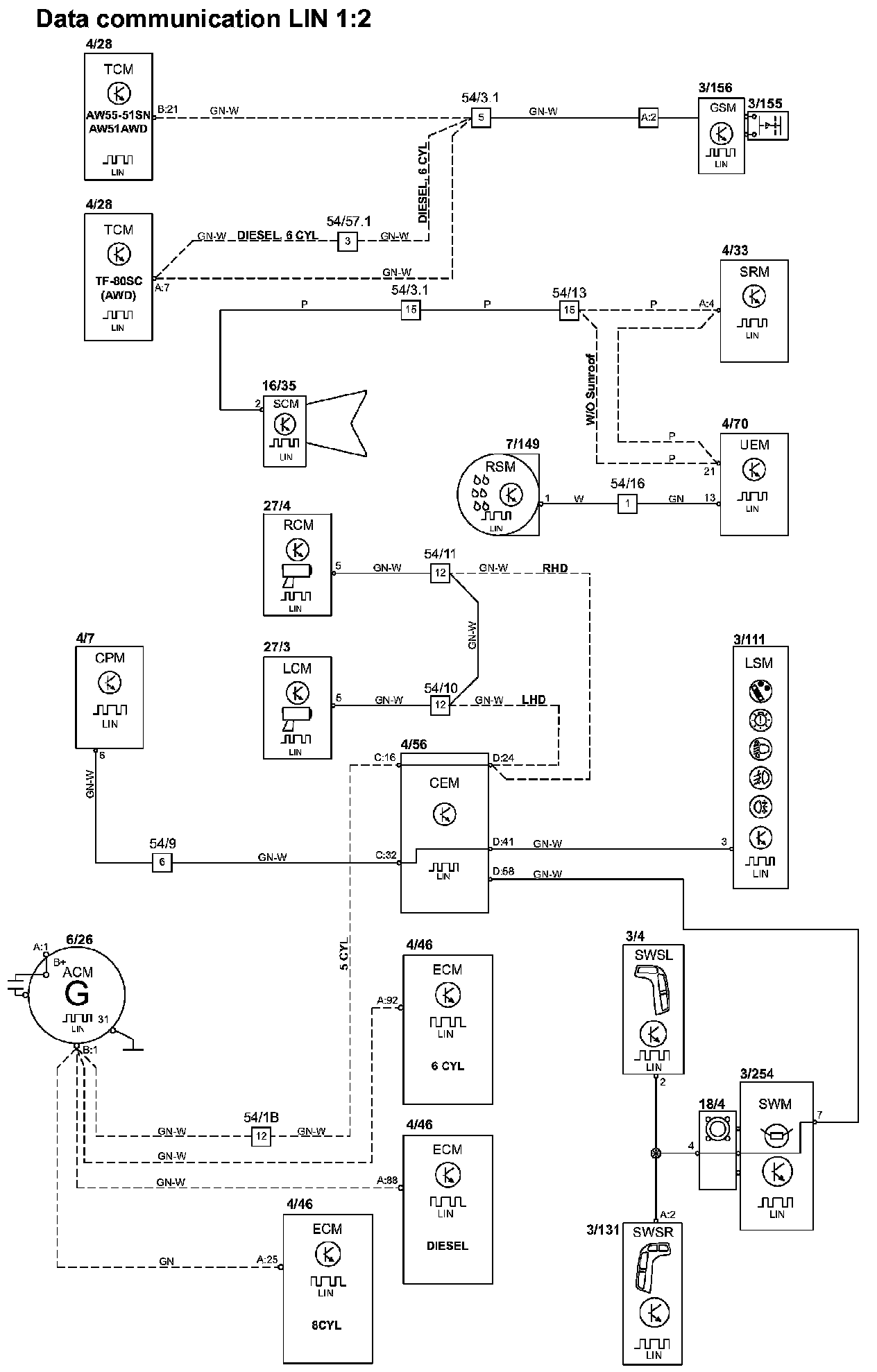

Data Communication LIN 1:2:

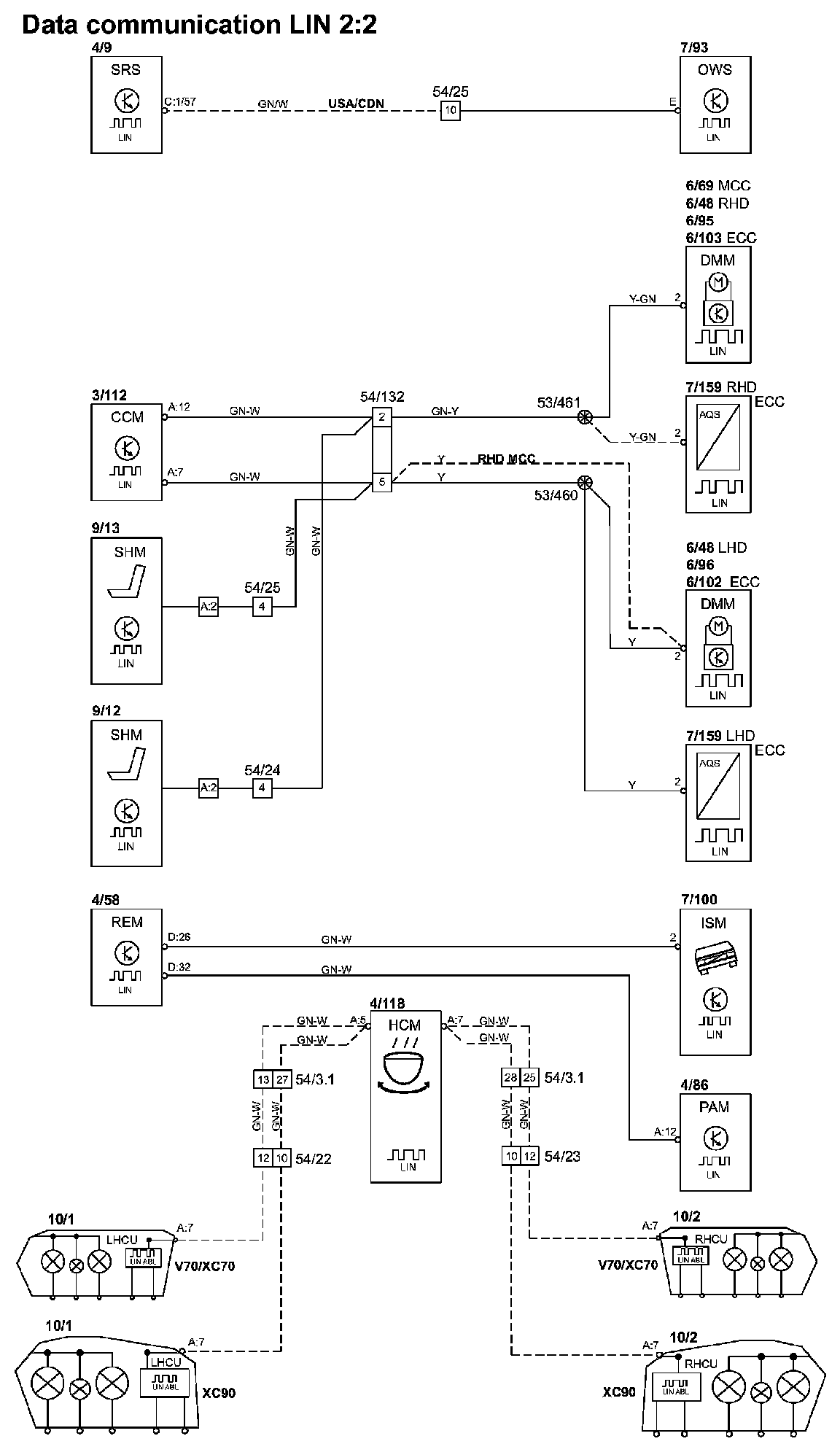

Data Communication LIN 2:2:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and the Other Abbreviations

List of Components By Component Number: List of Components By Component Number
