Home >> Volvo >> 2007 >> V70R L5-2.5L Turbo VIN 52 B5254T4 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Auxiliary Power Outlet >> Changes Introduced Up to and Including April 2006

Changes Introduced Up to and Including April 2006

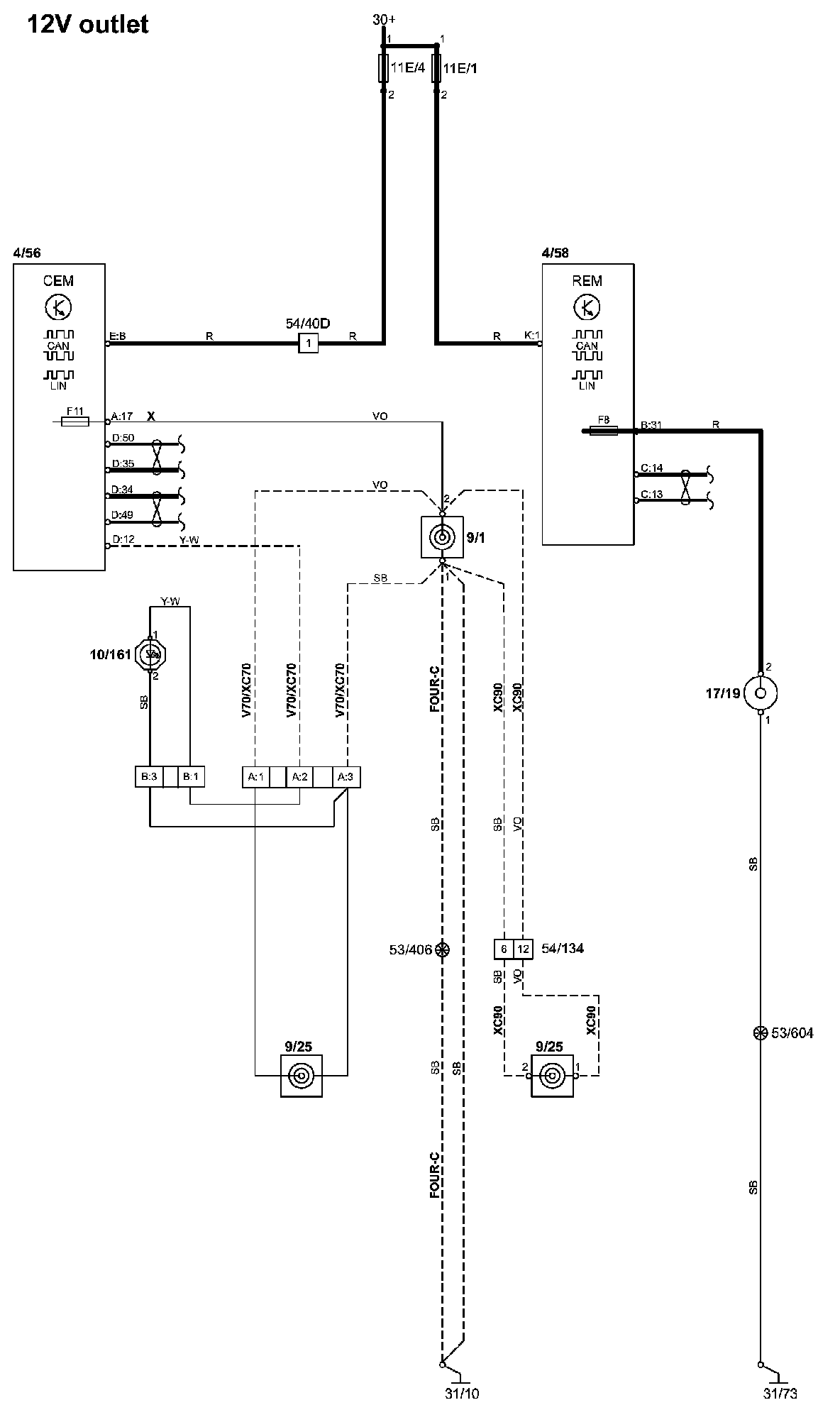

12V Outlet


12V Outlet:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and the Other Abbreviations

List of Components By Component Number: List of Components By Component Number
