Changes Introduced Up to and Including April 2006

Driver Information Module

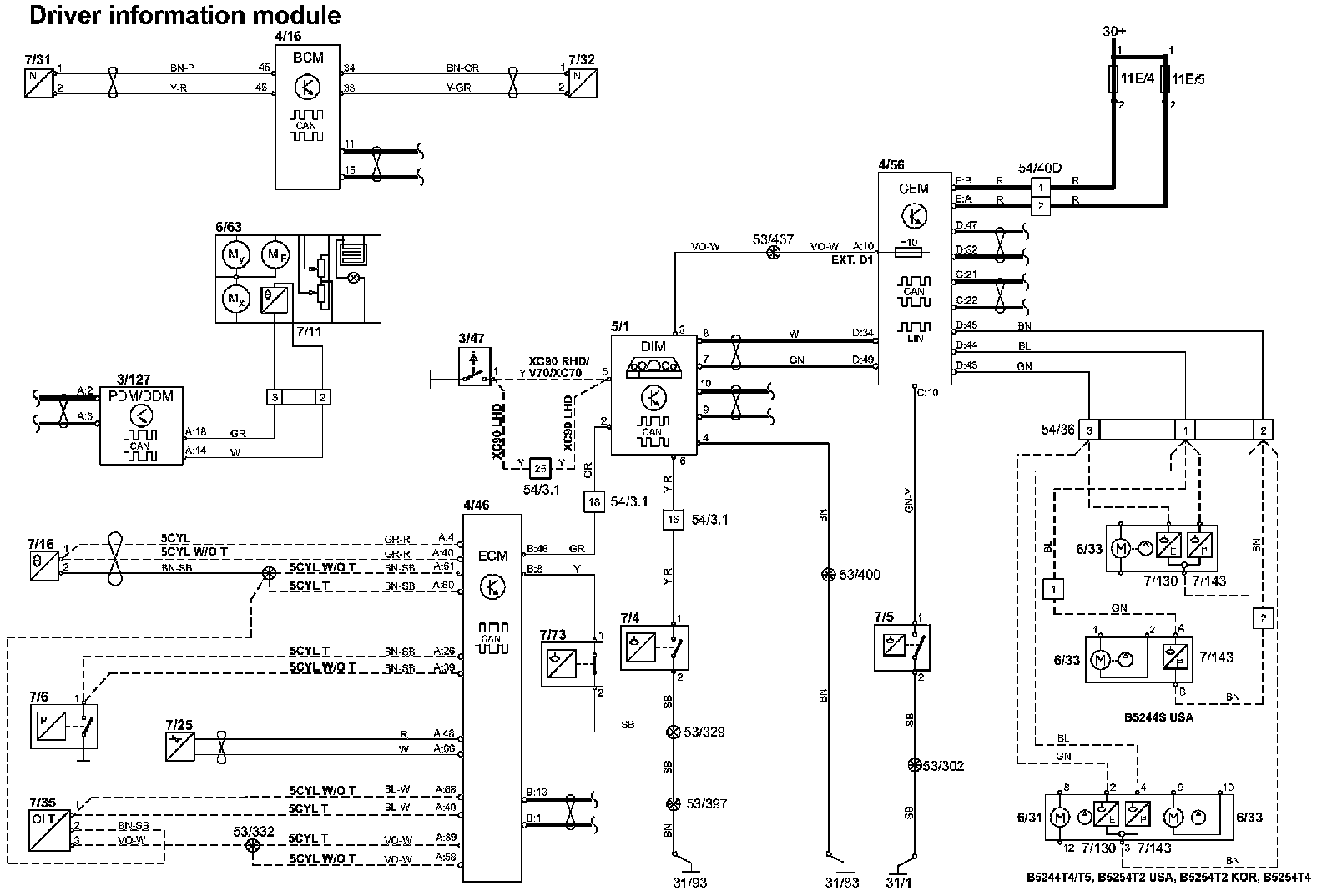

Driver Information Module:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and the Other Abbreviations

List of Components By Component Number: List of Components By Component Number
