Changes Introduced Up to and Including April 2007

Rear Seat Entertainment

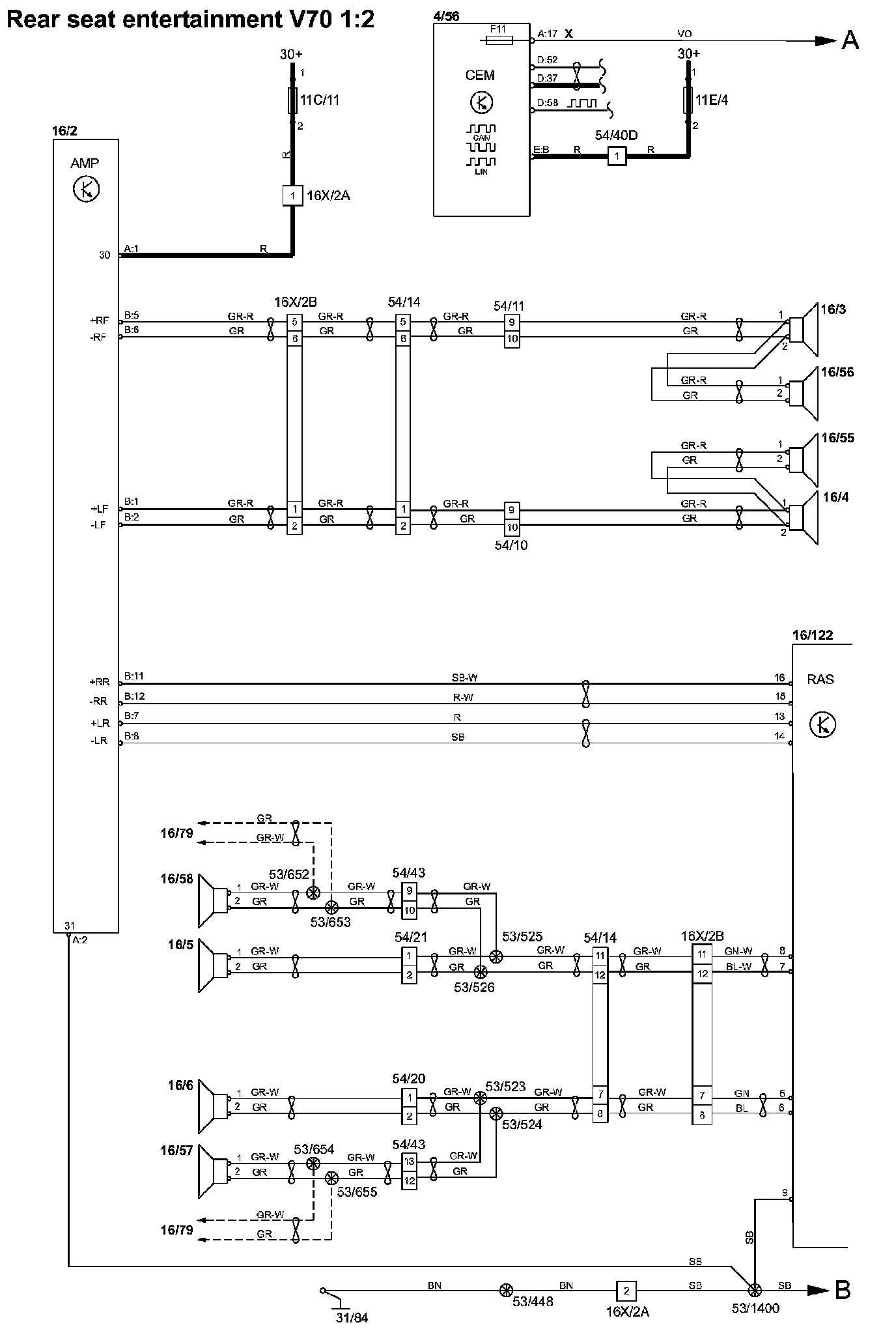

Rear Seat Entertainment 1:2:

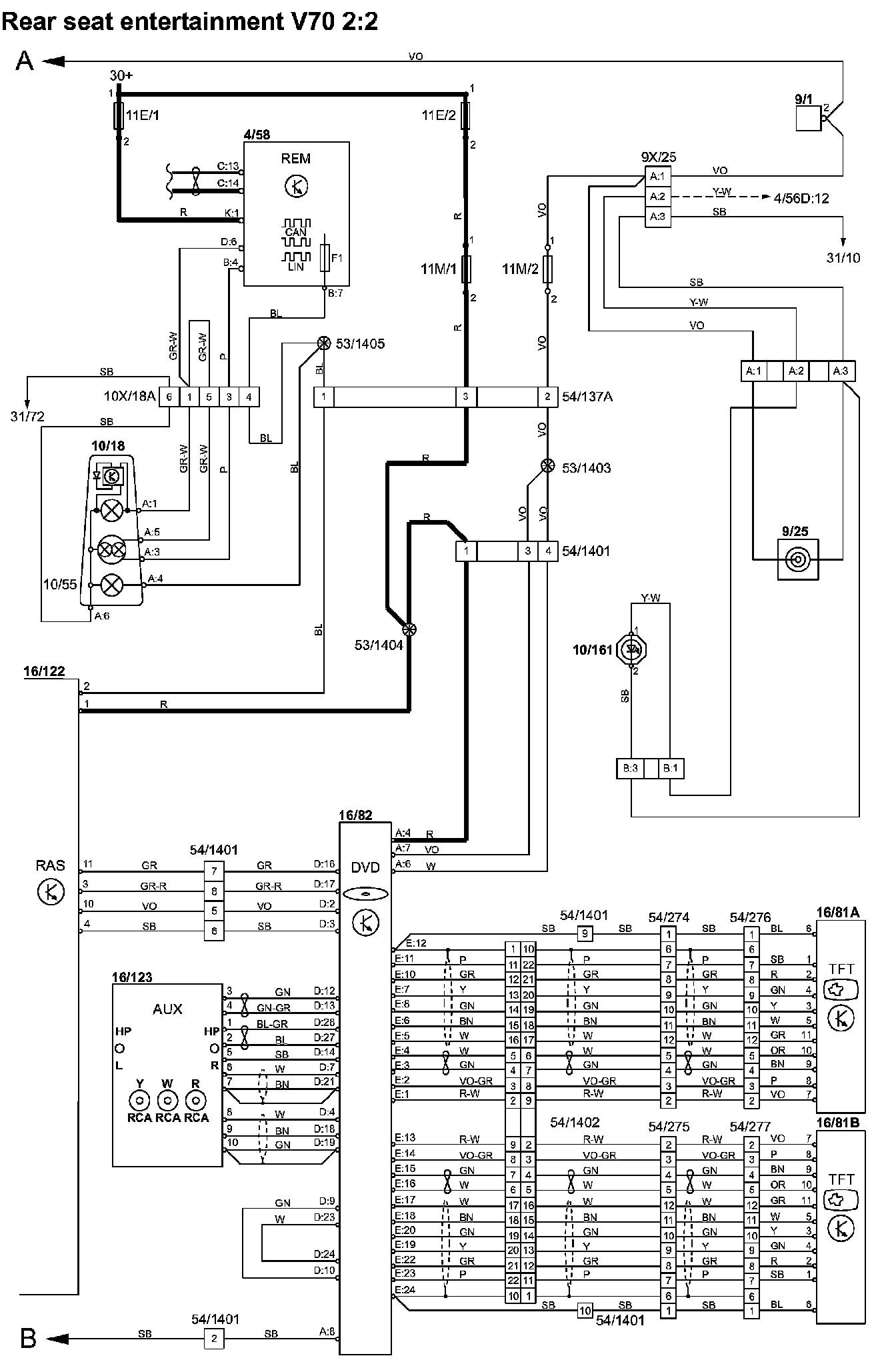

Rear Seat Entertainment 2:2:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
