Changes Introduced Up to and Including April 2007

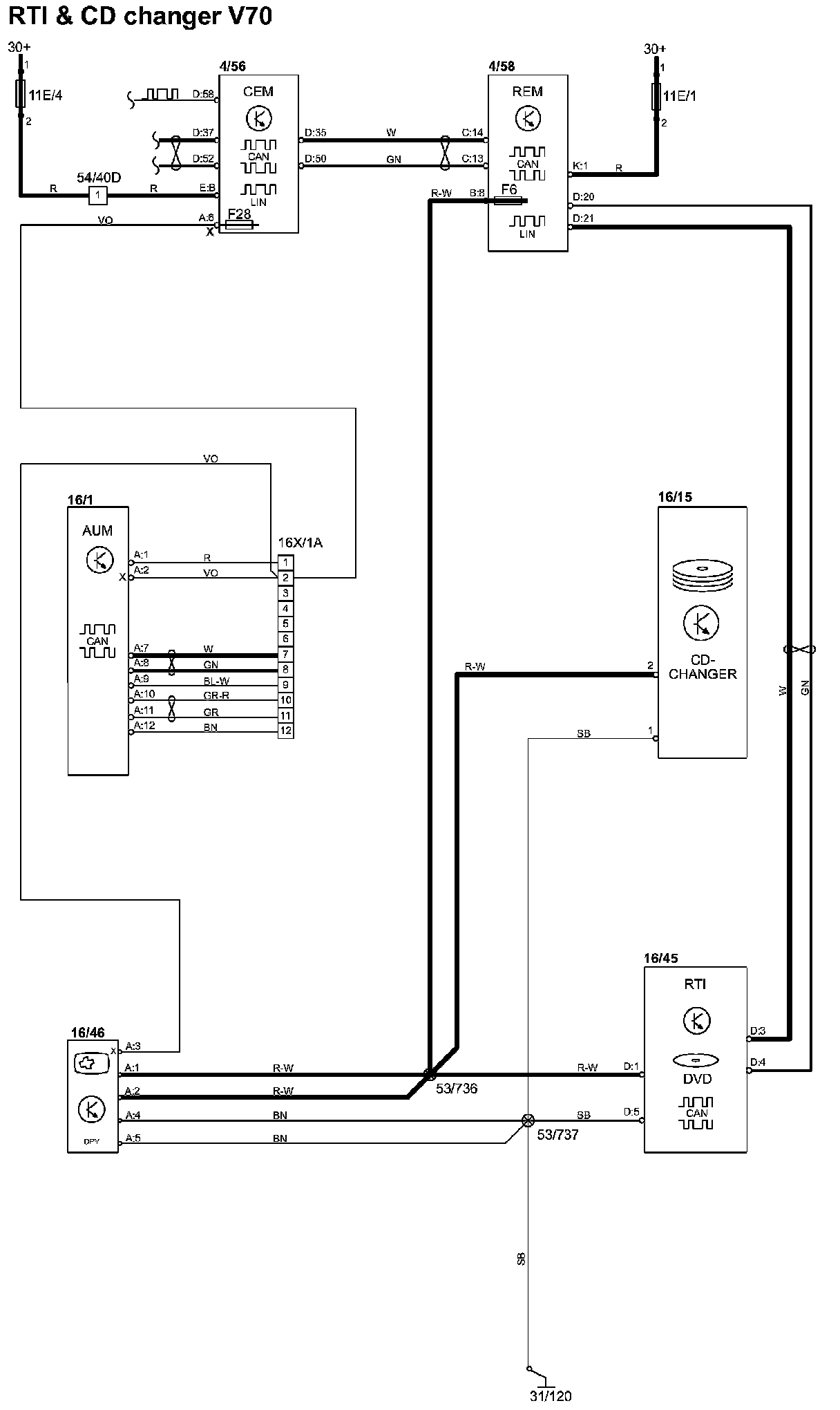

RTI & CD changer


RTI & CD Charger:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
