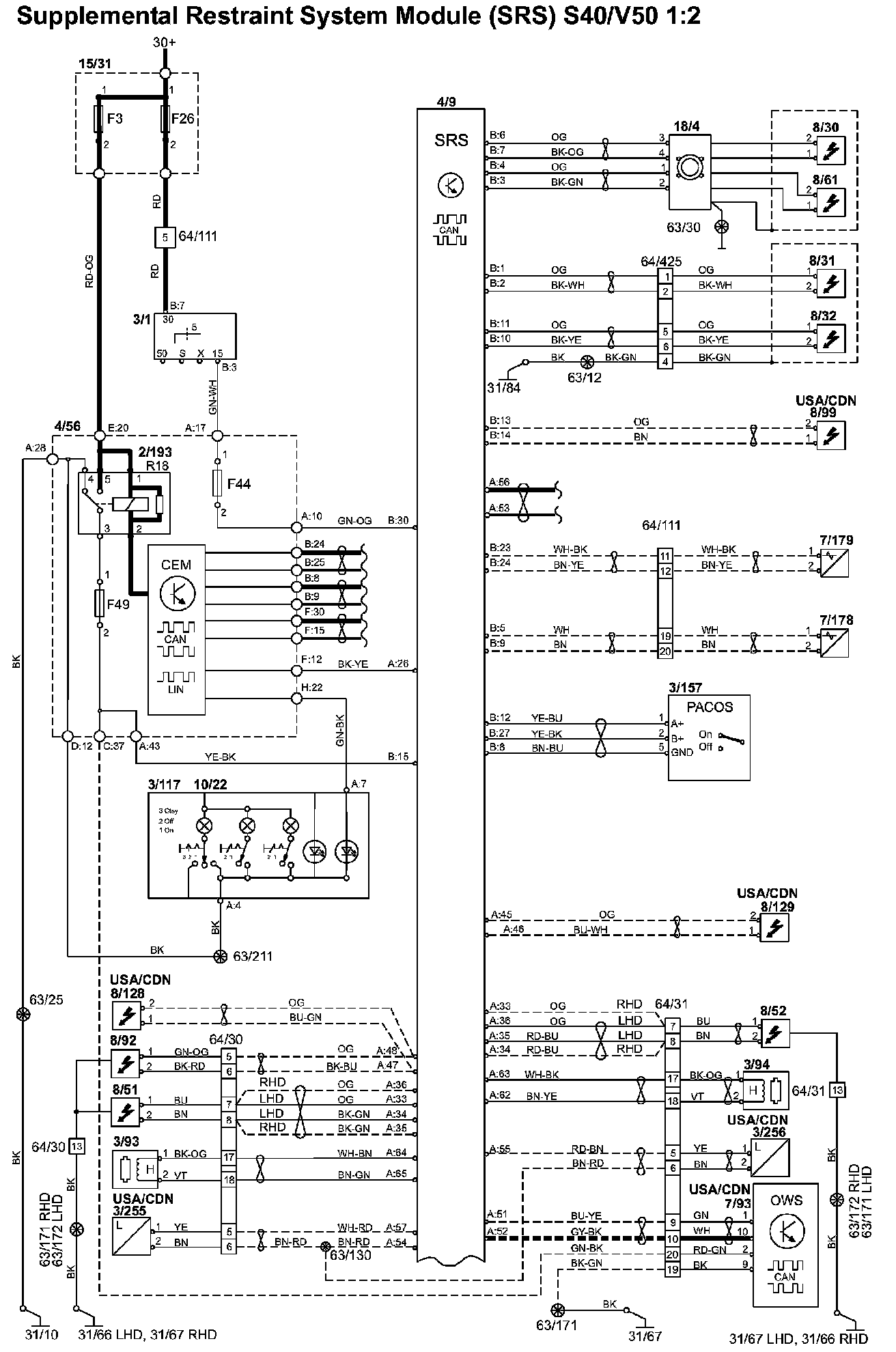

Supplemental Restraint System Module (SRS) 1:2

Supplemental Restraint System Module (SRS) S40/V50

Supplemental Restraint System Module (SRS), 1:2:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
