R.H.D

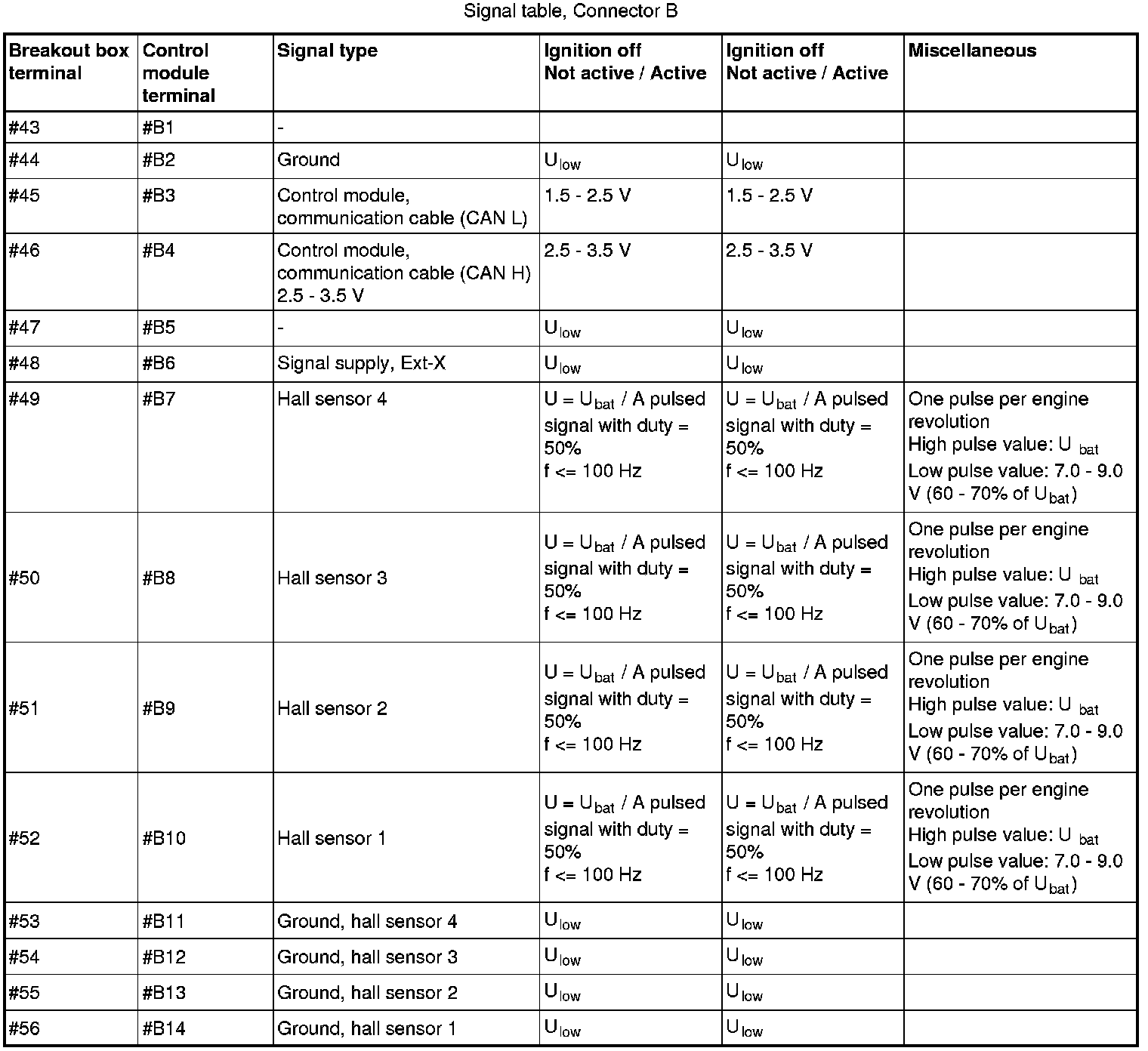

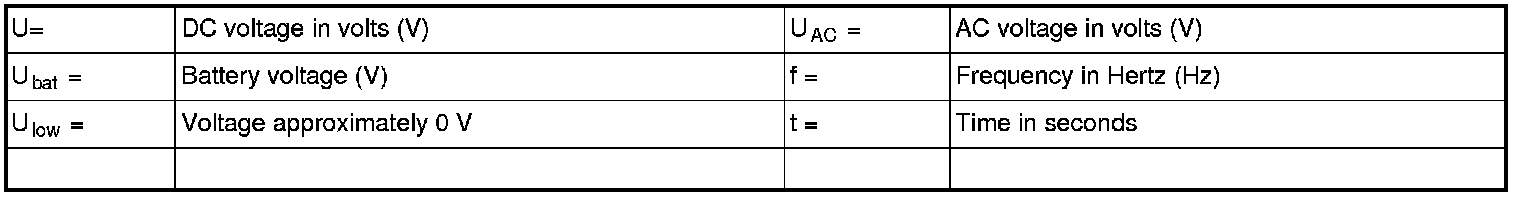

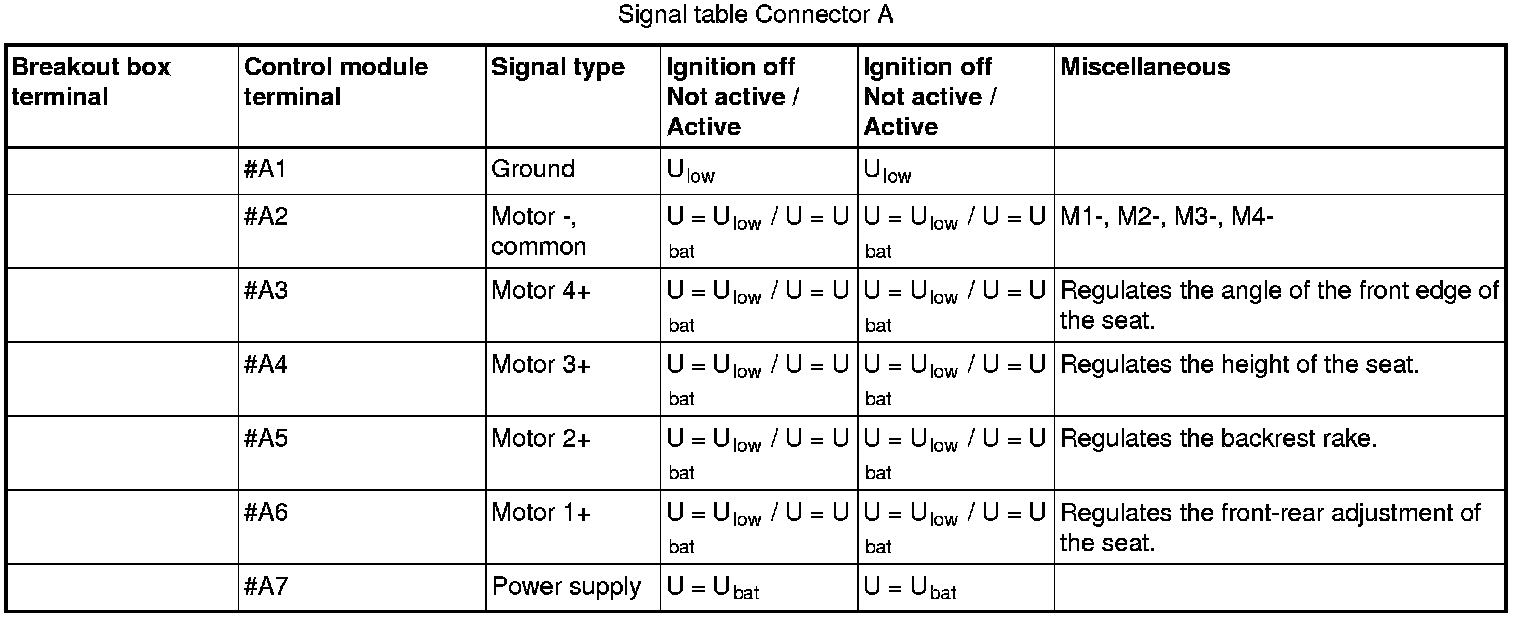

Signal specification

Connecting the breakout box and checking the ground terminals
Before taking readings, the breakout box and ground terminal must be checked.
Checking the voltage / ground terminal, R.H.D Component Tests and General Diagnostics
