Cover, Control System

Cover, control system

Operation number: 43748-2











Removal

Note! Removal steps in this procedure may contain installation details.

Remove the air filter housing Refer to: Air cleaner housing, B8444S Service and Repair

Remove oil transmission Transaxle Oil




Torque: M8, 24 Nm





Warning! Make sure that the component is clean, free of foreign material and lubricant.

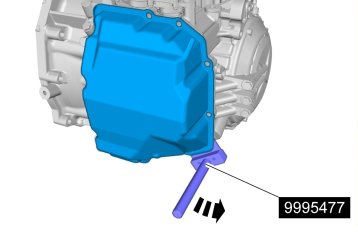

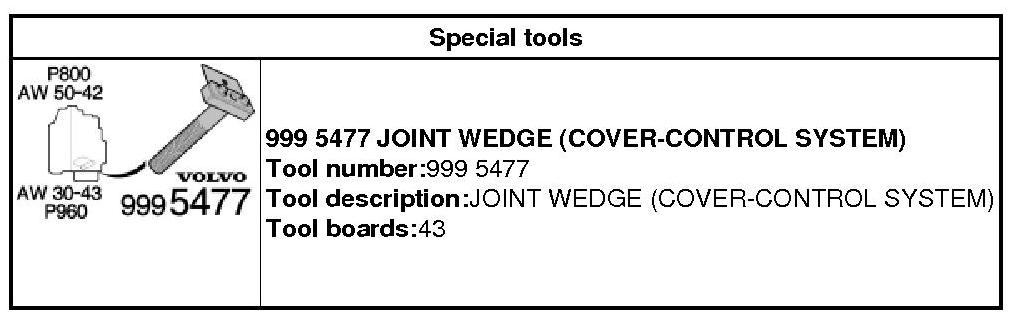

999 5477 JOINT WEDGE 999 5477 Joint Wedge

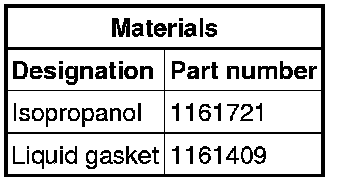

Use: Cleaning agent, 1161721

Installation





Use: Liquid gasket, 1161409

To install, reverse the removal procedure.
