Power Steering Fluid Cooler: Service and Repair

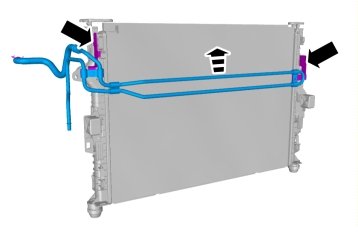

Oil cooler, power steering

Operation number: 64525-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.






Removal

Note! Removal steps in this procedure may contain installation details.

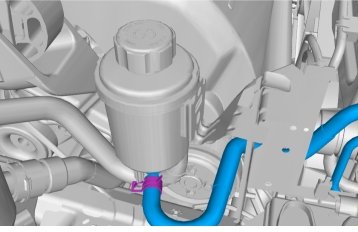

Warning! Be prepared to collect escaping fluid.





Remove the radiator. Removal and Replacement

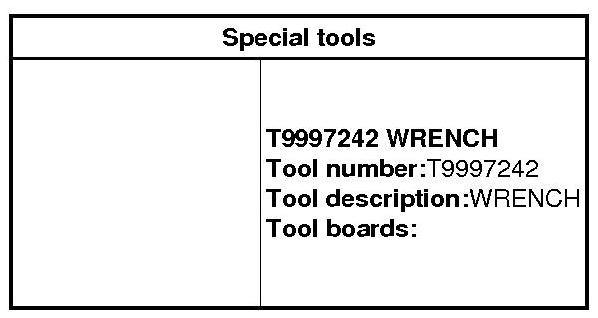

999 7242 Wrench 999 7242 Wrench





Installation

To install, reverse the removal procedure

Bleed the system. Refer to: Power steering system, bleeding Service and Repair
