Starter Motor: Service and Repair

Starter motor

Operation number: 33118-2

Removal

Note! Removal steps in this procedure may contain installation details.

Perform draining. Refer to: Service and Repair

Remove the following items:
- battery Removal and Replacement
- air cleaner (ACL) Service and Repair

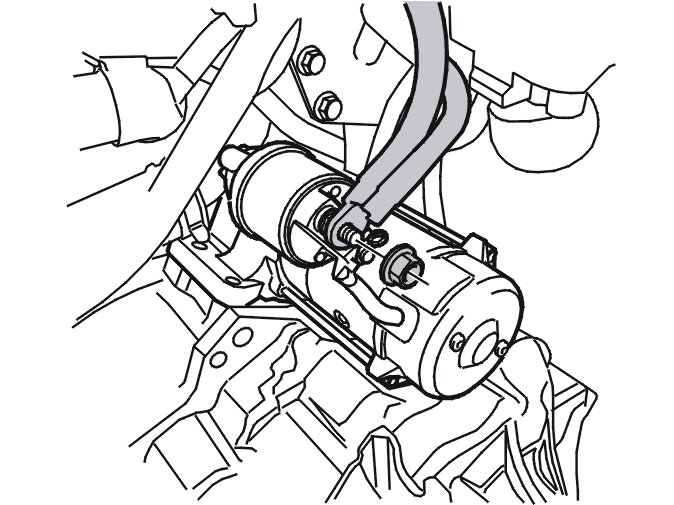

Torque: M6, 10 Nm

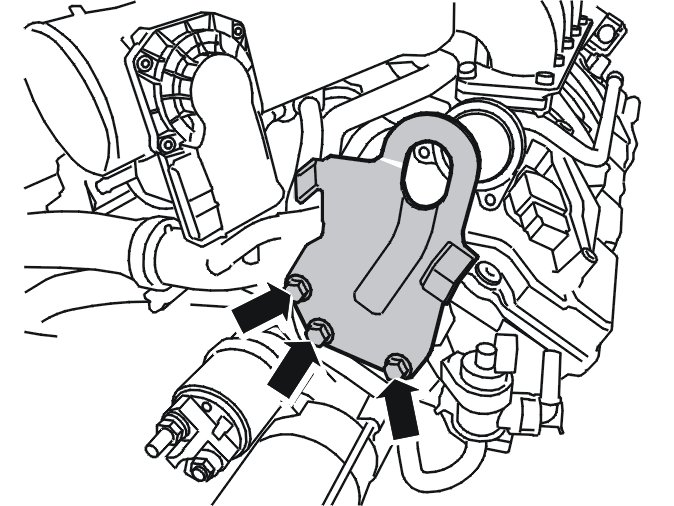

Torque: M8, 24 Nm

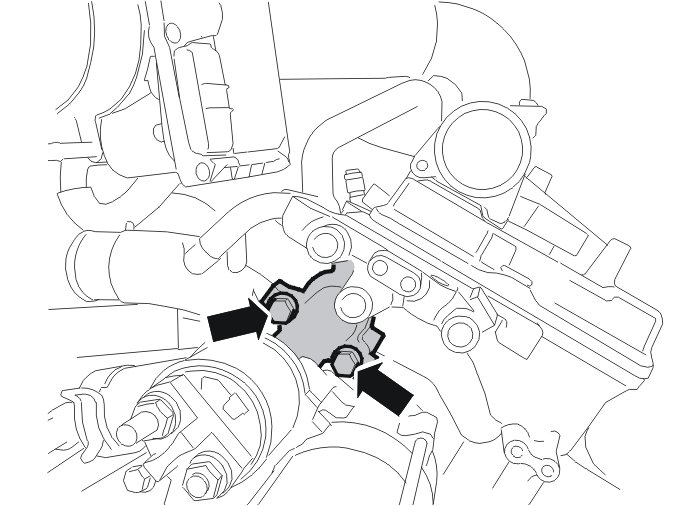

Torque: M8, 24 Nm








Torque: M8, 24 Nm

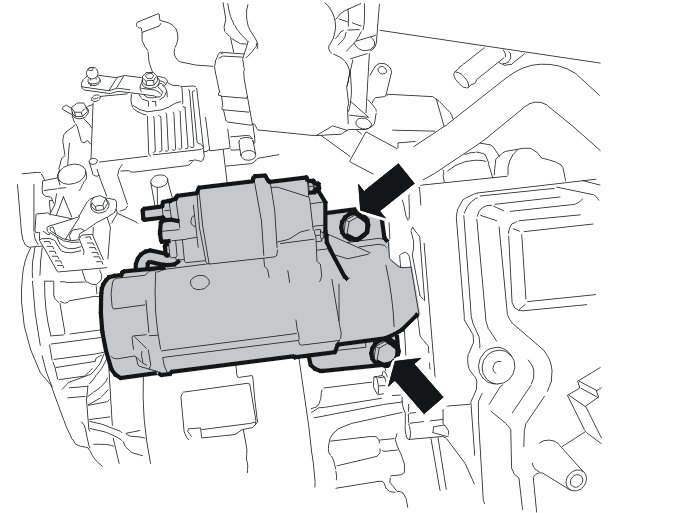

Torque: M10, 50 Nm

Installation

To install, reverse the removal procedure.
