Changes Introduced Up to October 2006

Rear Electrical Center FA1-FA11:



Rear Electrical Center FB1-FB12:

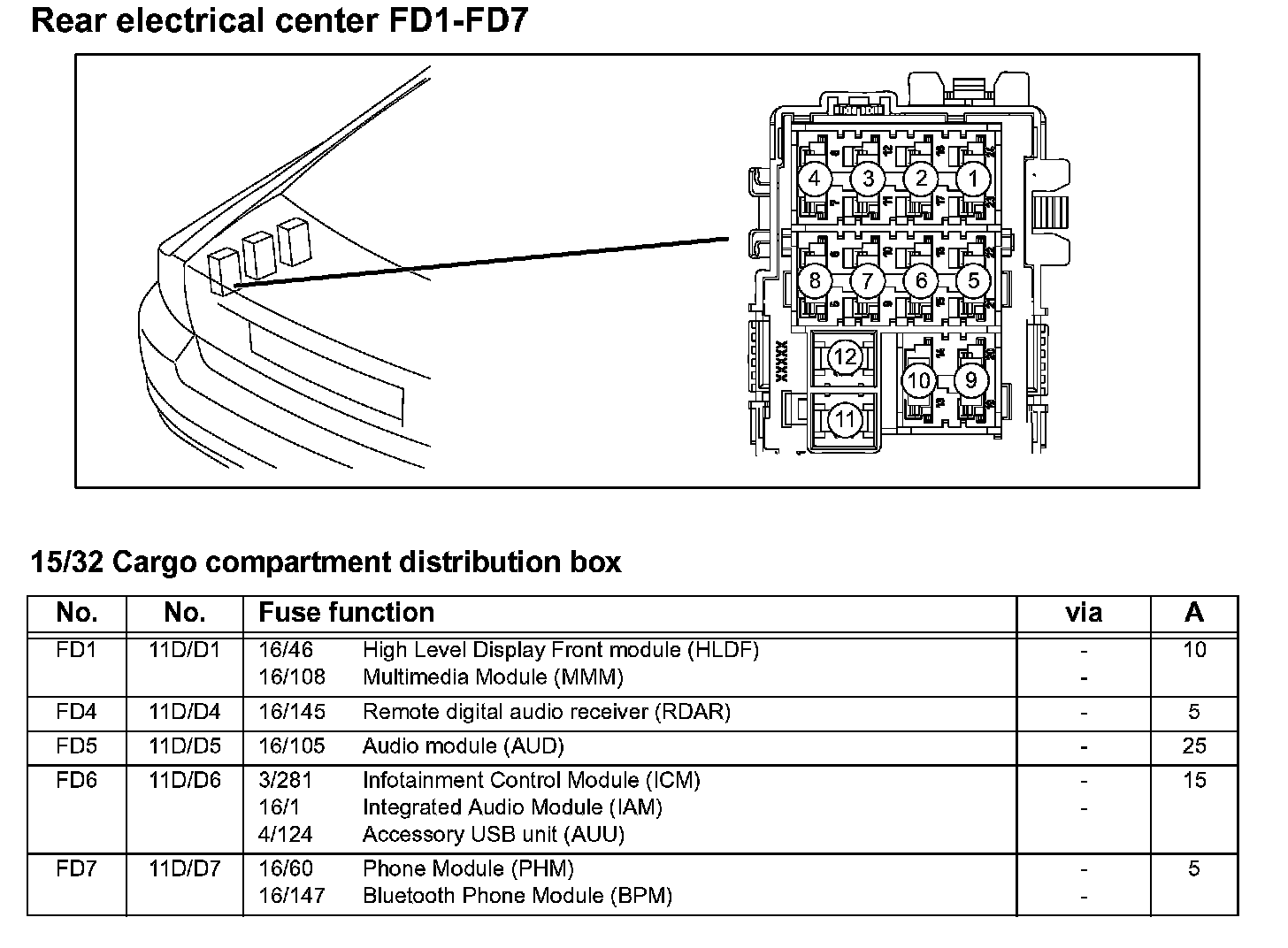

Rear Electrical Center FD1-FD7:
