Changes Introduced Up to April 2006

Rear Electrical Center FA1-FA11:



Rear Electrical Center FB1-FB7:

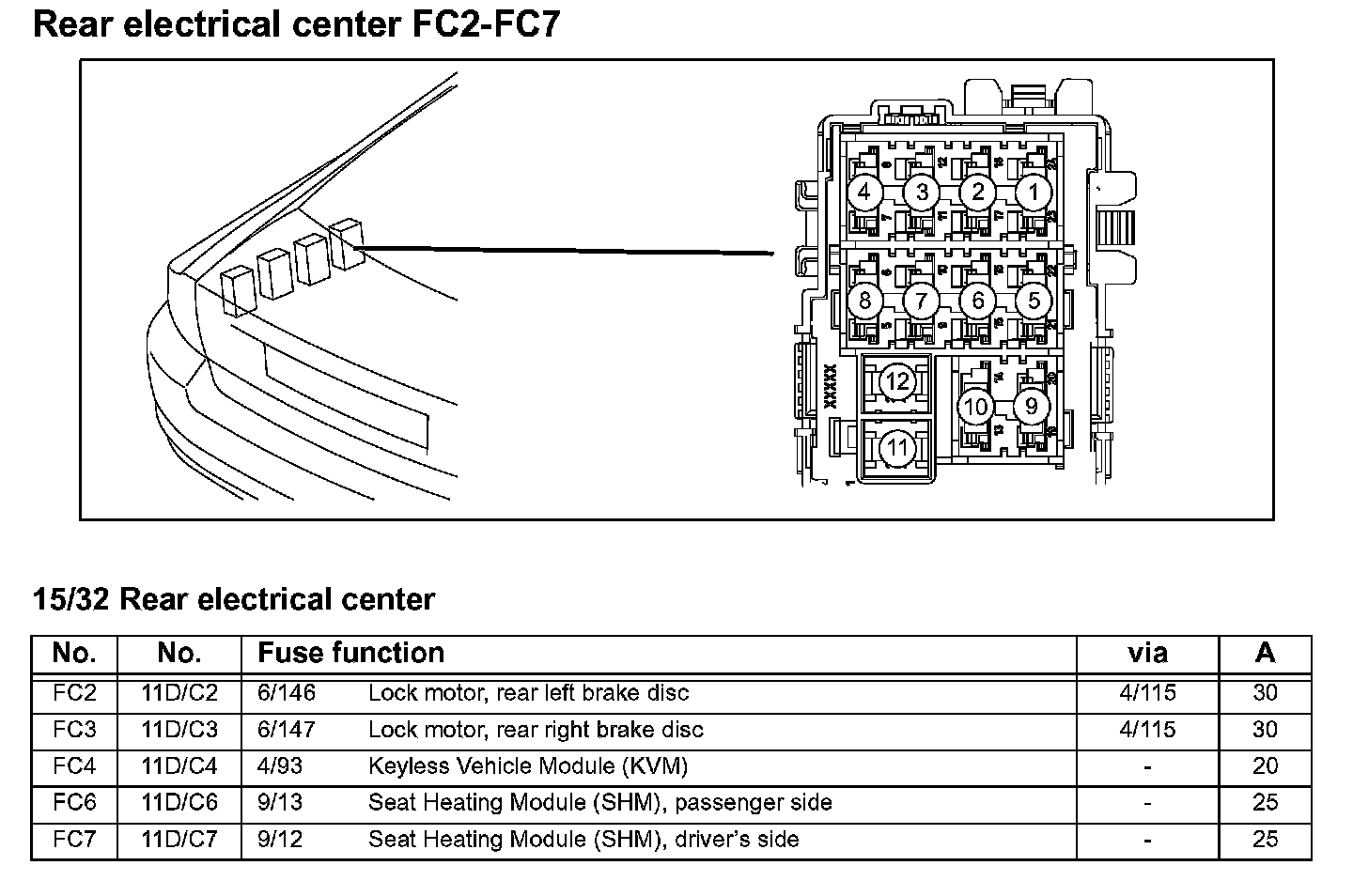

Rear Electrical Center FC2-FC7:

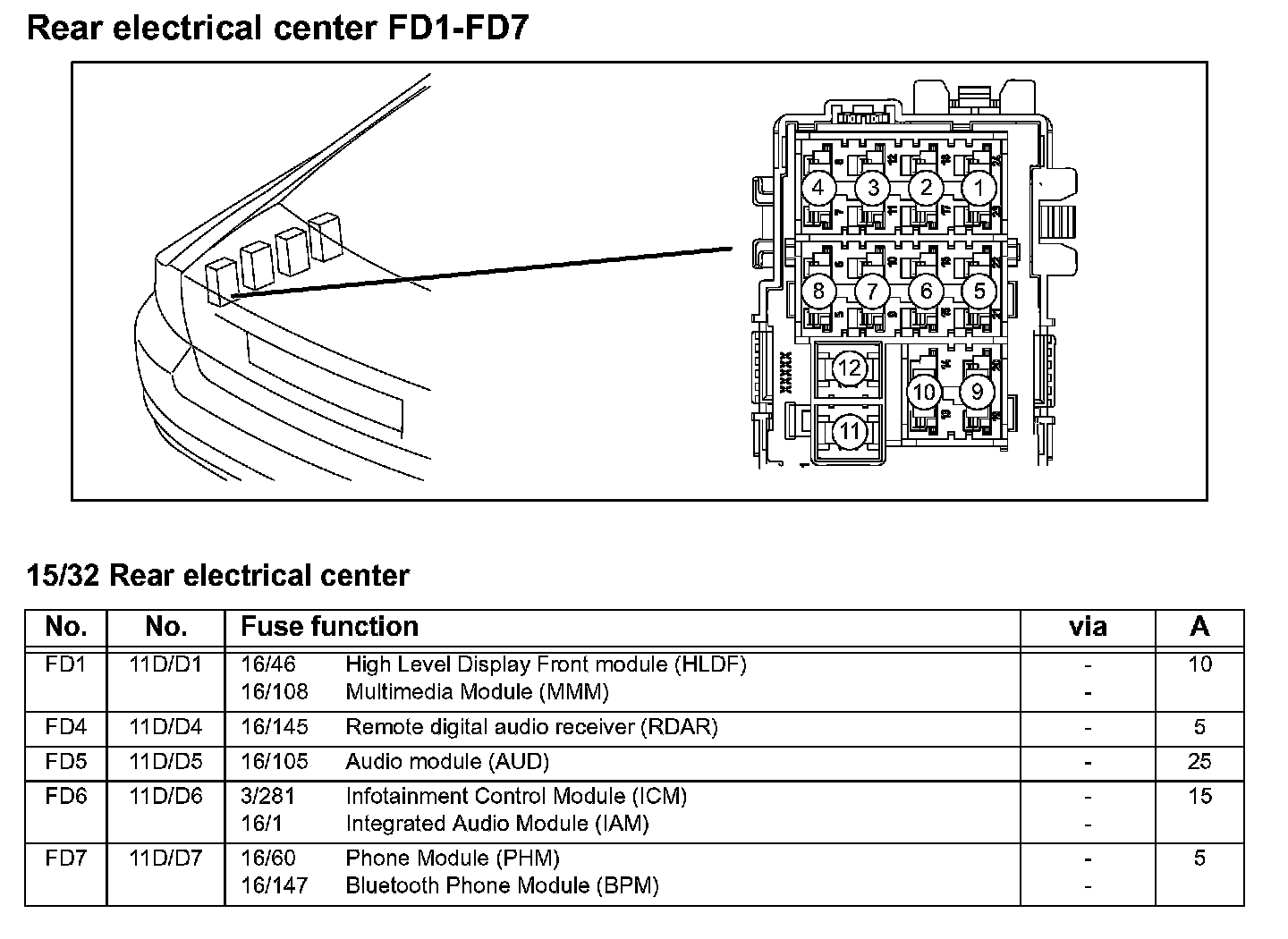

Rear Electrical Center FD1-FD7:
