Home >> Volvo >> 2007 >> S80 AWD V8-4.4L VIN 85 B8444S >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Locations >> Engine Compartment Electrical Center

Engine Compartment Electrical Center

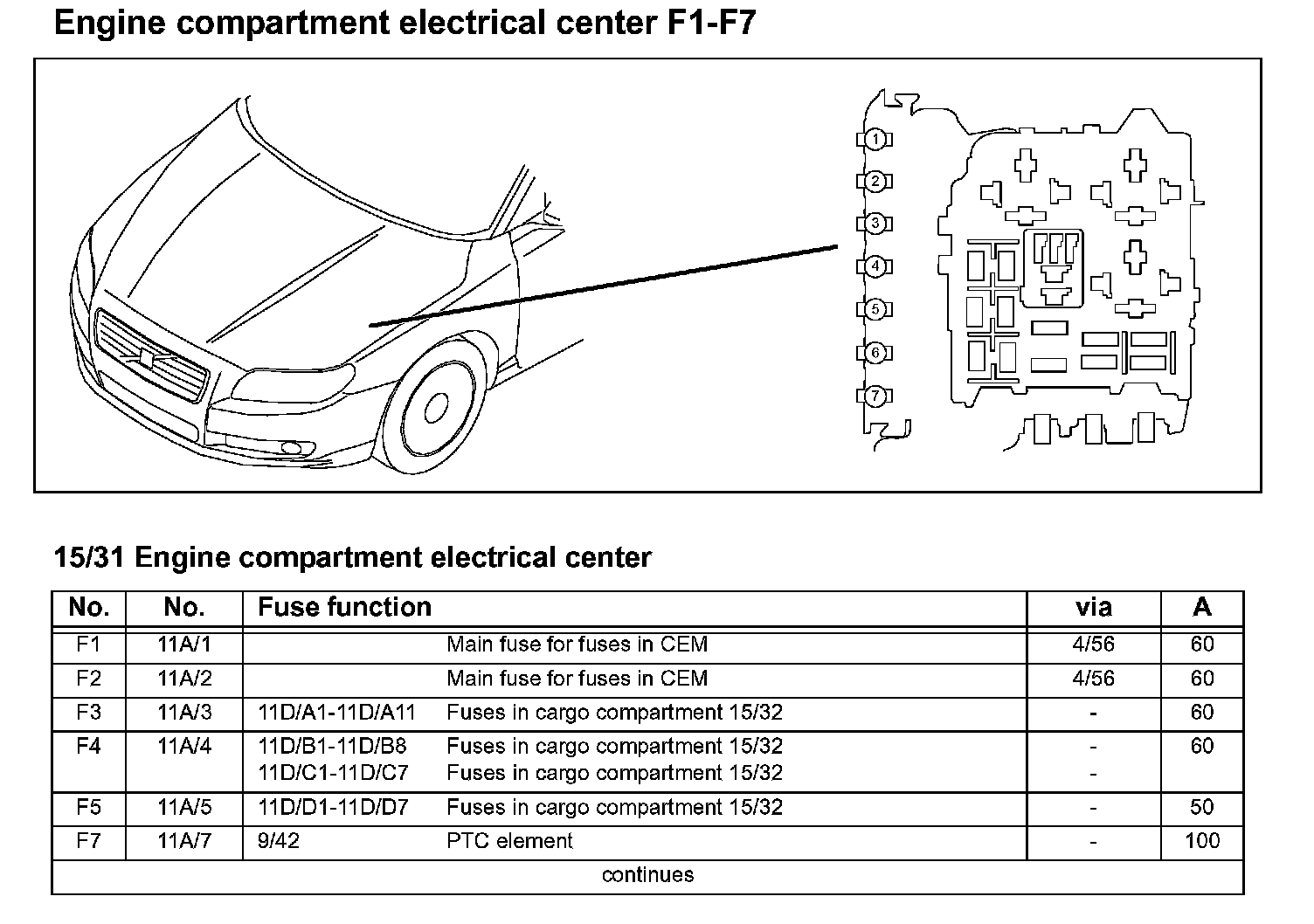

Engine Compartment Electrical Center F1-F7:

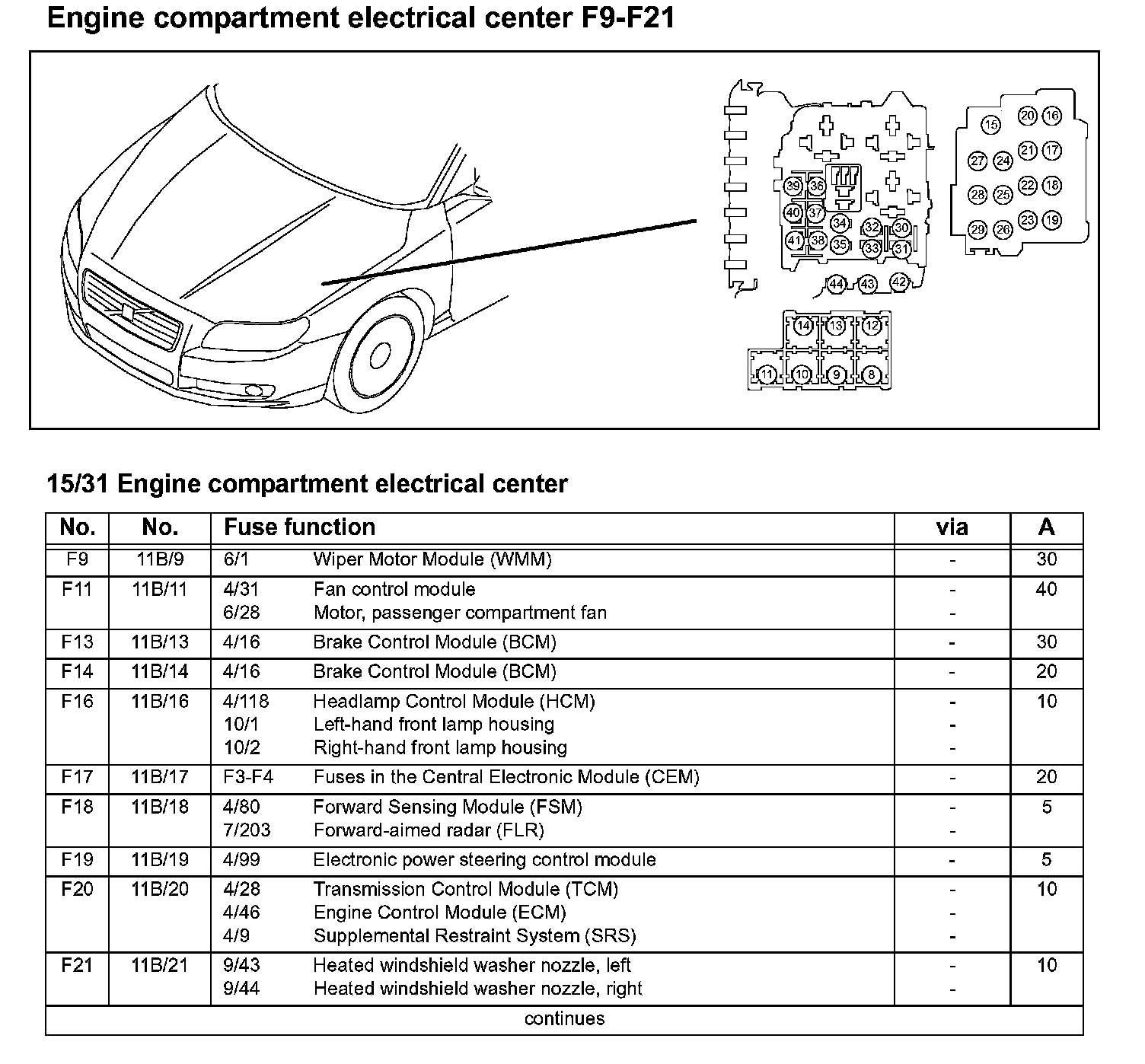

Engine Compartment Electrical Center F9-F21:

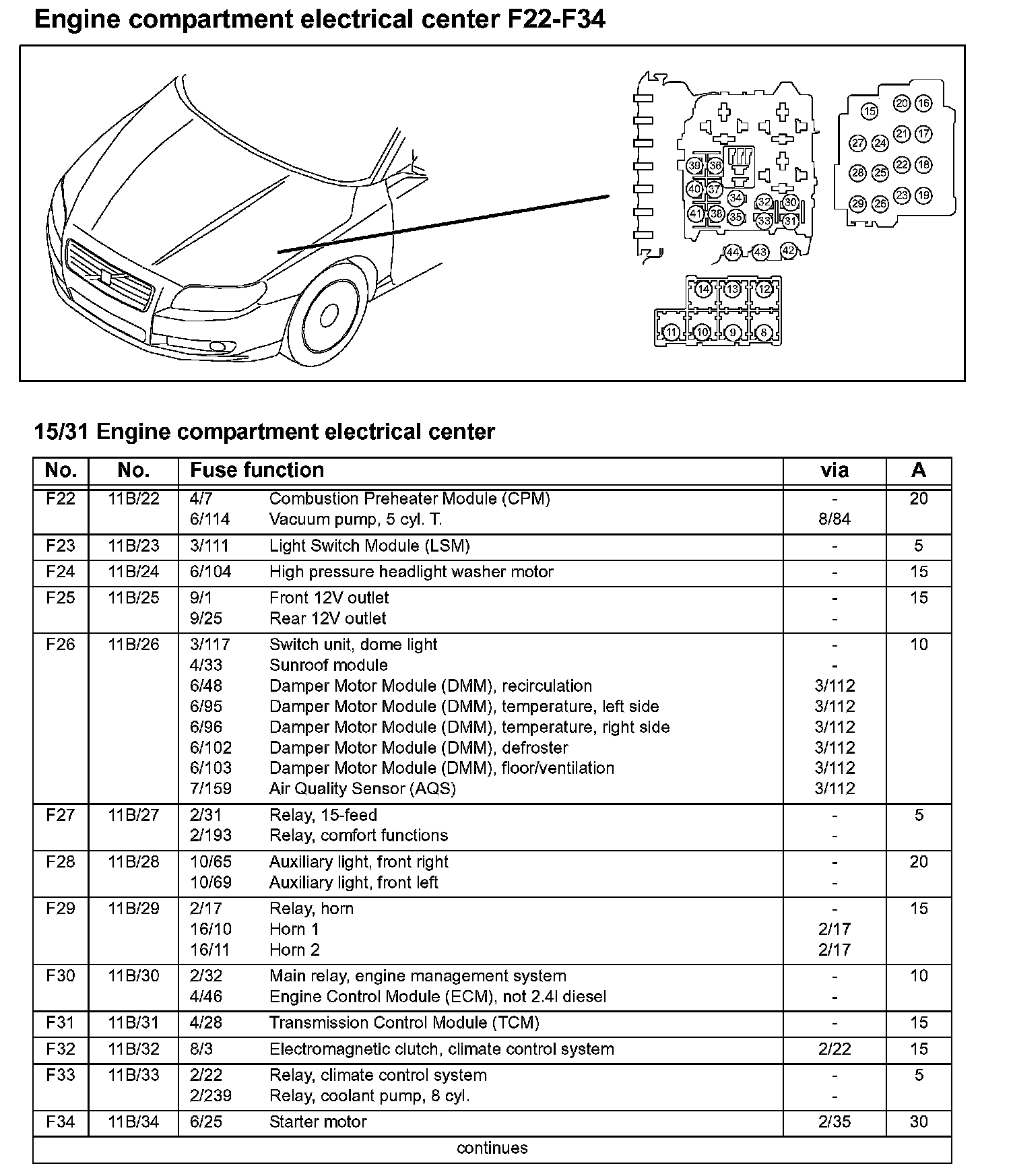

Engine Compartment Electrical Center F22-F34:

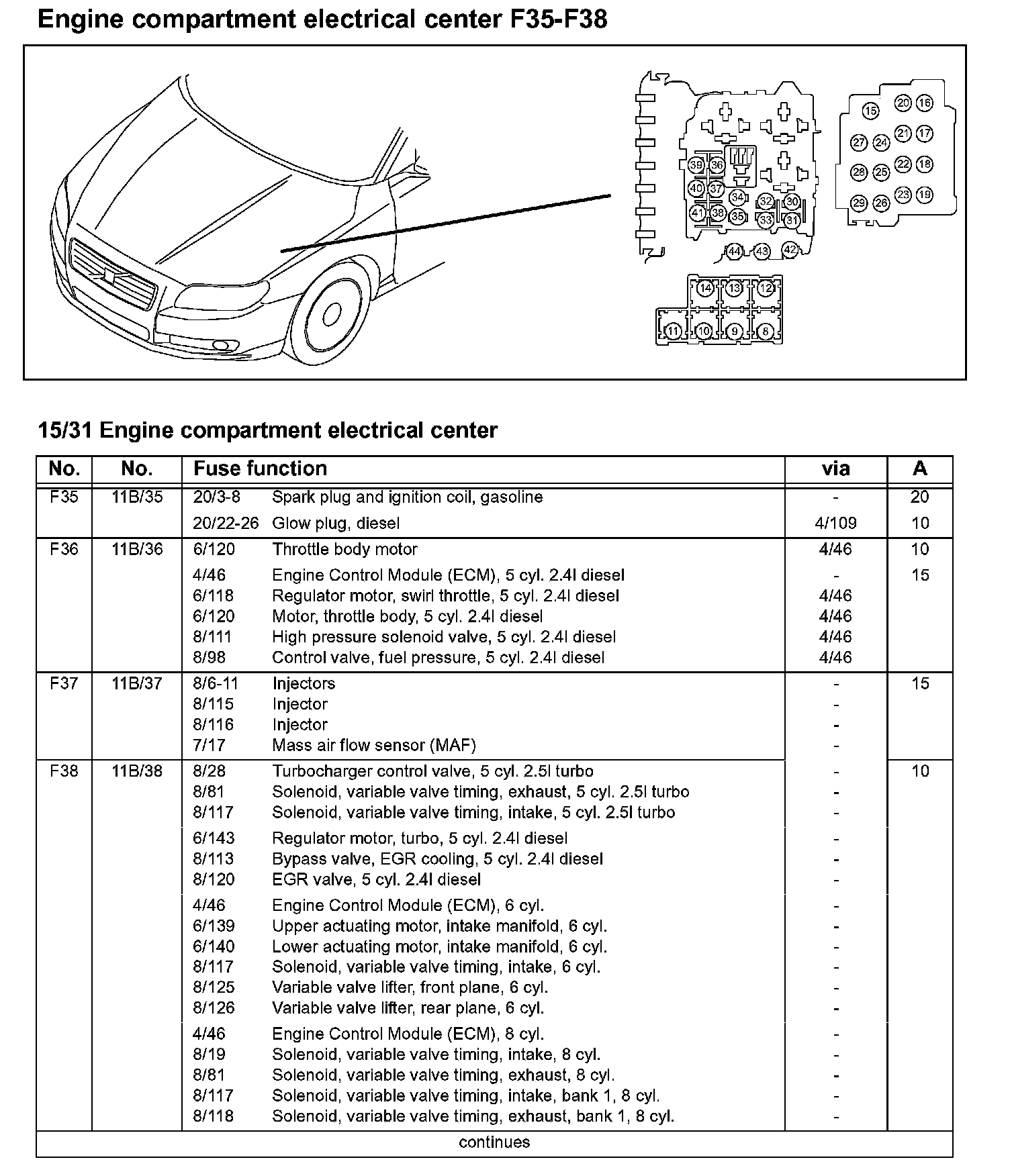

Engine Compartment Electrical Center F35-F38:

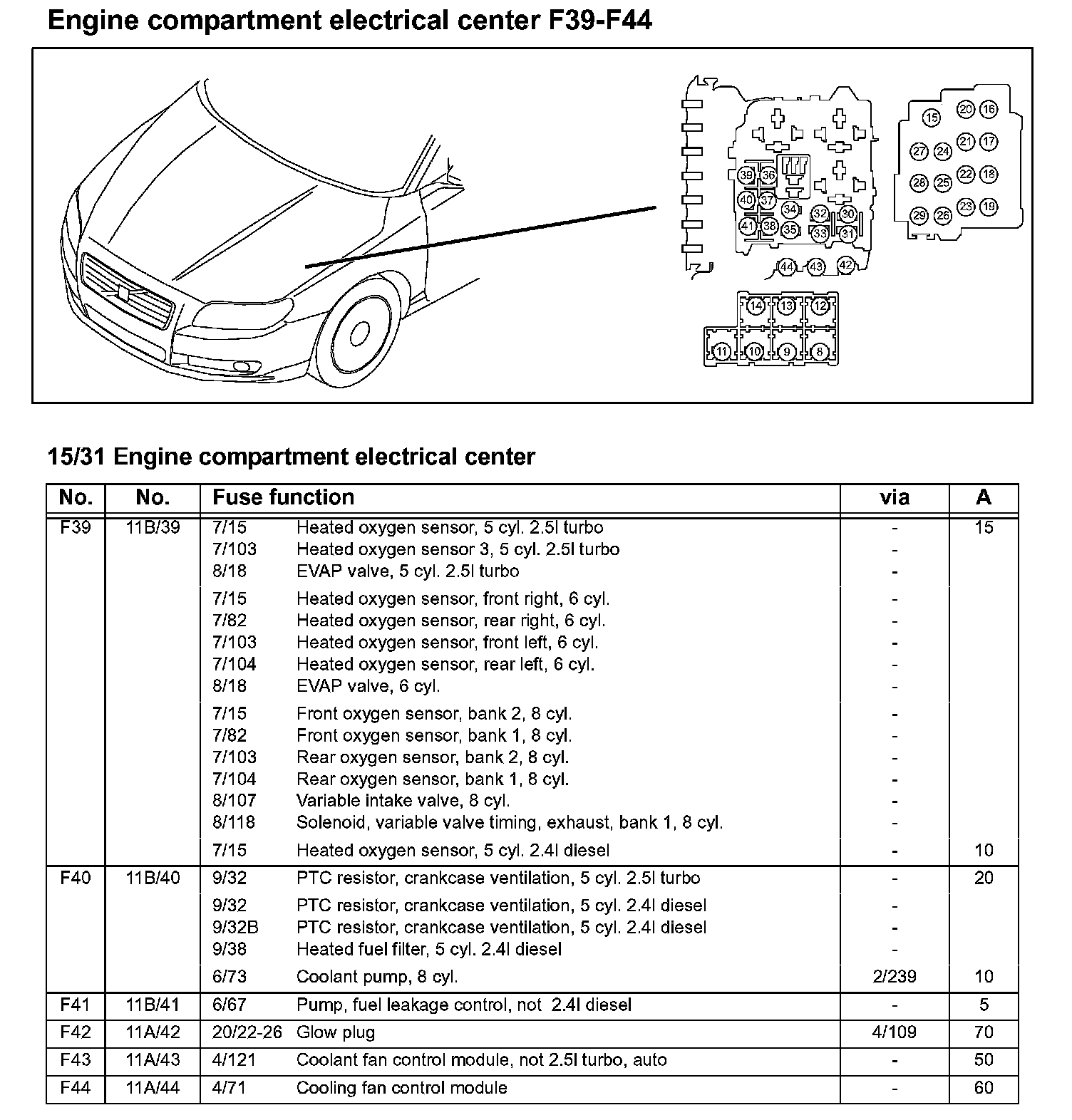

Engine Compartment Electrical Center F39-F44:
