System Specifications

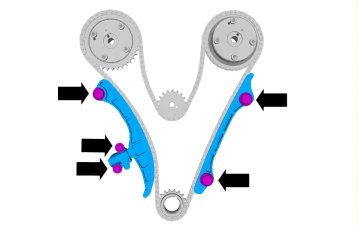

Chain Tensioner





Torque M6 10 Nm
Torque M8 24 Nm

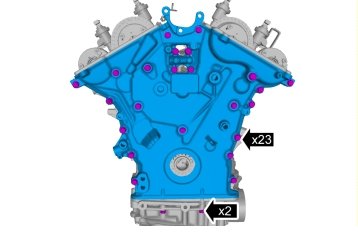

Cover





Torque M8 24 Nm

Vibration damper (crankshaft)

Stage 1 120 Nm
Stage 2 Loosen the screw 360 degree
Stage 3 50 Nm
Stage 4 90 degree
