Engine Speed Sensor: Locations

Location of components

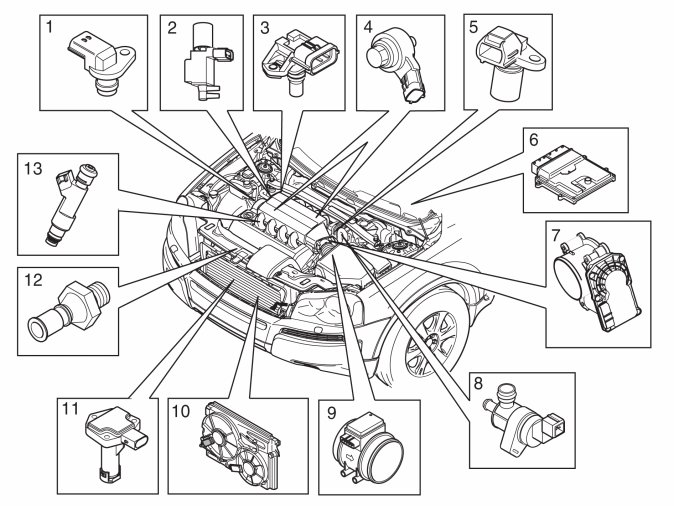

Location Of Components:

Location of components
1. Camshaft sensors, 4 pcs.
2. Variable inlet, solenoid valve (TST)
3. Air pressure sensor inlet
4. Knock sensor (KS)
5. Engine speed (RPM) sensor
6. Engine control module (ECM)
7. Throttle unit
8. EVAP-valve
9. Mass airflow sensor/air temperature sensor
10. Engine cooling fan (FC)
11. Oil level sensor
12. Oil pressure monitor
13. Injector
