Body - Trunk Lid Hard to Open/Won't Open
NO: 83-41DATE: 8-1-2007
MODEL: S80
MODEL YEAR: 2007
CHASSIS 000000 - 050892
SUBJECT:
Trunk Lid Chrome Trim Strip and Handle Assembly
REFERENCE
VIDA
DESCRIPTION:
It has been reported that the trunk lid may be hard to open / may not open from the exterior handle. This may be due to a non-functioning touch pad / micro switch assembly due to a torn handle assembly. The solution is to replace the handle assembly. It will also be necessary to replace the chrome trim strip on the trunk lid.

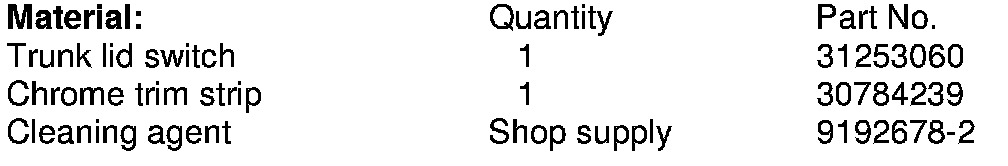

Materials
Tools
SERVICE:
As noted above it will be necessary to replace both the chrome trim and the handle assembly. The order of the replacement should be as follows;
- Remove the Chrome Trip Strip
- Remove the Handle Assembly
- Install the Handle Assembly
- Install the Chrome Trip Strip
Note:
Currently the instructions are in VIDA 2006B separately, from 2007C forward they will be combined into one procedure.
Verify the condition
Check the operation of the exterior trunk lid switch. If you do not hear a clicking from the micro switch the handle assembly will need to be replaced.

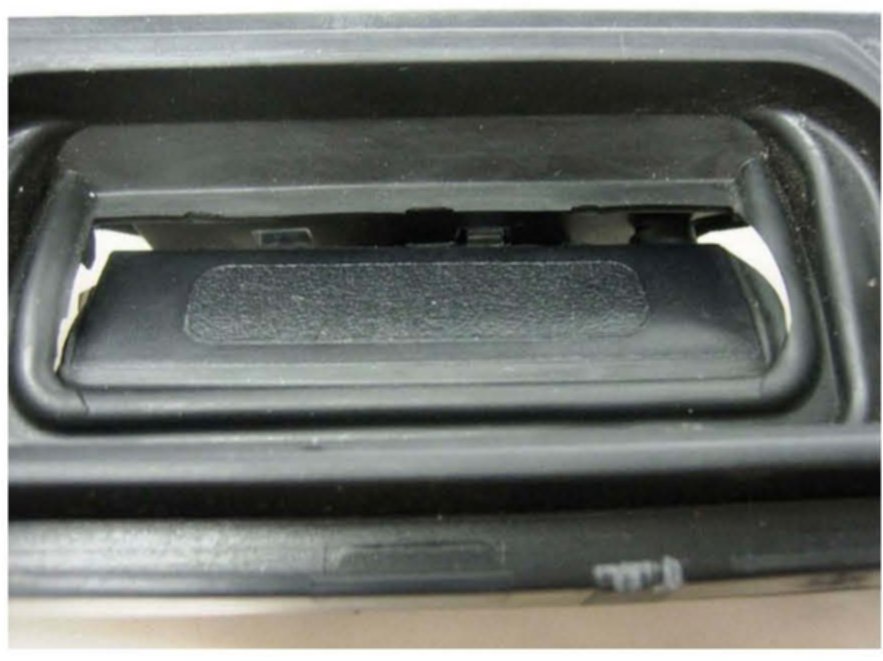

You can also inspect the rubber cover to see if it is torn. See the picture.
NOTE:
This is an extreme case.
Remove Trim Strip
See VIDA 2007B
- Removal, replacement and installation
- Body and interior
- Exterior trim, glass, weatherstrips
- Outside trim parts, emblem, reflector
- External trim components, glass, weatherstrips
- Trim strip luggage compartment lid
Remove Trunk Switch assembly
See VIDA 2007B
- Removal, replacement and installation
- Body and interior
- Lock handle
- Lock handle
- External handle, luggage compartment lid
Install Trunk Switch assembly
- Install the trunk lid switch in the reverse order of step 2.
Install Trim Strip
- Install the trim strip in the reverse order of step 1.
NOTE:
Be sure the trunk lid panel area for the chrome trim is cleaned and pressure is applied to the trim strip to ensure good adhesion to the trunk.

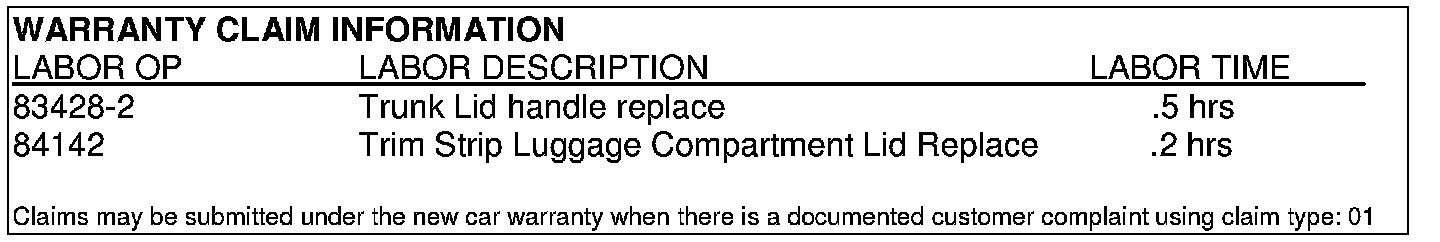

Warranty Information
