Fuel Pump Control Unit: Service and Repair

Fuel pump driver module

Operation number: 28411-2

Removal

Note! Removal steps in this procedure may contain installation details.

Perform draining. Service and Repair

Perform draining. Refer to Fuel System Pressure Release. Fuel System Pressure Release

Battery, disconnection Battery Disconnecting

Remove the front muffler. Muffler, Front





Remove the propeller shaft. Propeller Shaft

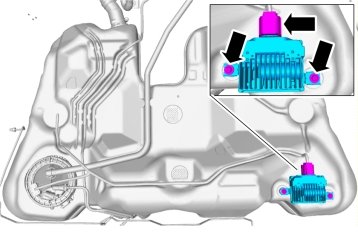

Torque: M8, 24 Nm













Warning! Fuel may still be present in the fuel tank after draining.

Warning! Be prepared to collect escaping fluid.








Torque: M8, 24 Nm





Note! Make sure that no components catch.

Installation

To install, reverse the removal procedure.
