Balance Shaft Bearing: Service and Repair

Balance Shaft Bearing

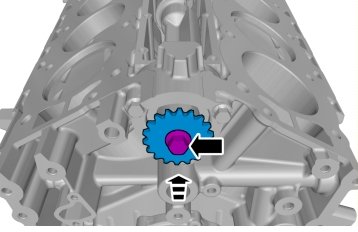

Removal

Remove cylinder head, left. Cylinder Head, Left




















999 7245 Screw 999 7245 Screw
999 7246 Press tool 999 7246 Press Tool













Vehicles with engine serial number up to 6833.





Vehicles with engine serial number up to 6833.





All vehicles

Installation





Caution! Make sure that the area around the component is clean and free of foreign material.








999 7248 Position setter 999 7248 Position Setter
999 7025 Drift Haldex coupling 999 7025 Drift Haldex Coupling












999 7247 Drift 999 7247 Drift








Torque: M10, 50 Nm




Torque: M8, 24 Nm




Torque: M6, 10 Nm

Install cylinder head, left Refer to: Cylinder head, left, B8444S Cylinder Head, Left
