Rear Door: Service and Repair

Side door rear

Operation number: 83112-2

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the following items:
- Lift mechanism, rear door Refer to:
- Side window fixed, rear Refer to: Side window fixed, rear Service and Repair
- Door stop front side door Refer to: Door stop front side door Service and Repair
- Window, rear door Refer to: Window, rear door Service and Repair

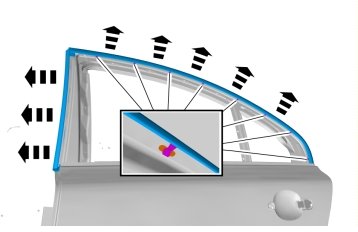

- lower trim strip, rear door Refer to: Lower trim strip, rear door

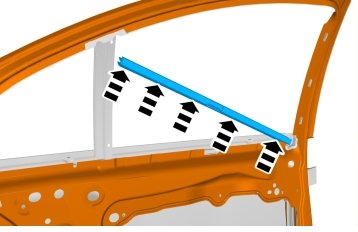

- weatherstrip, side door, rear Refer to: Seal strip side door rear Service and Repair

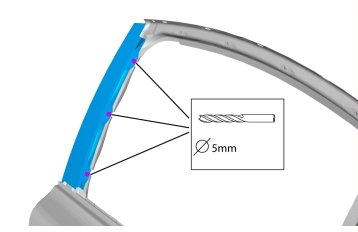

Caution! Make sure that the component is not bent.

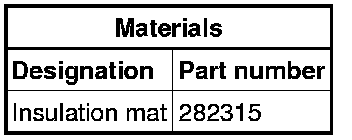

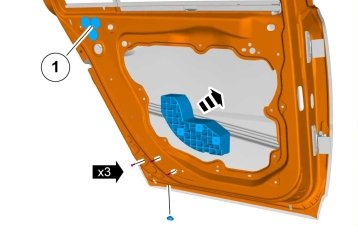

Use: Insulation mat, 282315

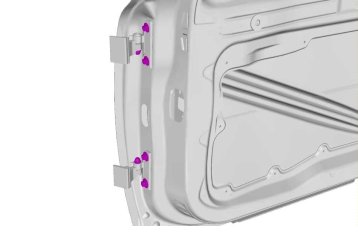

Torque: M8, 24 Nm

Installation

To install, reverse the removal procedure.

Follow the instructions regarding corrosion protection Refer to: Rustproofing
