Engine - Oil Leak From Unused Bolt Hole
Technical JournalTITLE:
Oil Leak from Unused Bolt Hole
CAR MARKET:
United States
ISSUING DEPARTMENT:
Technical Service
REF NO:
TJ 26765
ISSUE DATE:
YEAR
2012
MONTH
10
DAY
02
PARTNER:
3 US 7510 Volvo Cars North America
FUNC DESC:
Cylinder block
FUNC GROUP:
2120
"Fixed Right - First Time"
Attachment

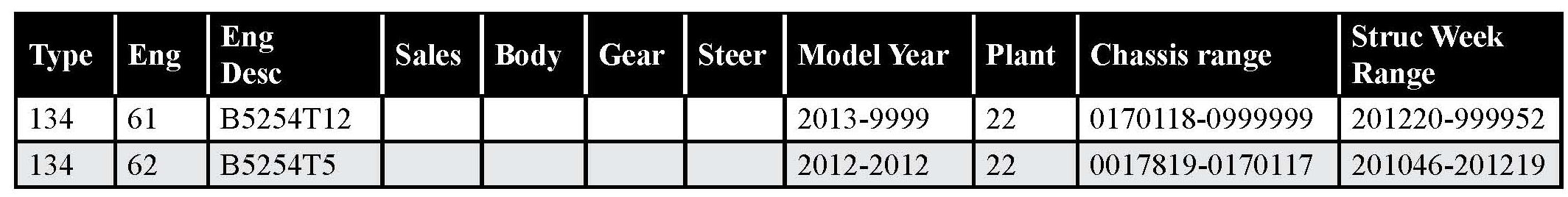

Vehicle Type

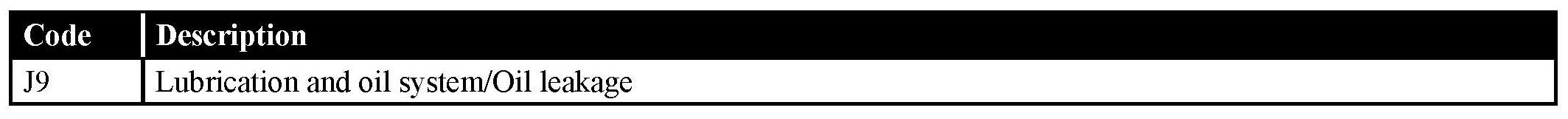

CSC Customer Symptom Codes
DTC Diagnostic Trouble Codes
Text
Note! If using a printed copy of this Technical Journal, first check for the latest online version.
DESCRIPTION:
An oil leak may occur from an unused bolt hole, located in the intermediate section in front of the engine block.
PRODUCT MODIFICATION:
Investigation ongoing at engine plant to delete the drilling of this hole.
SERVICE:

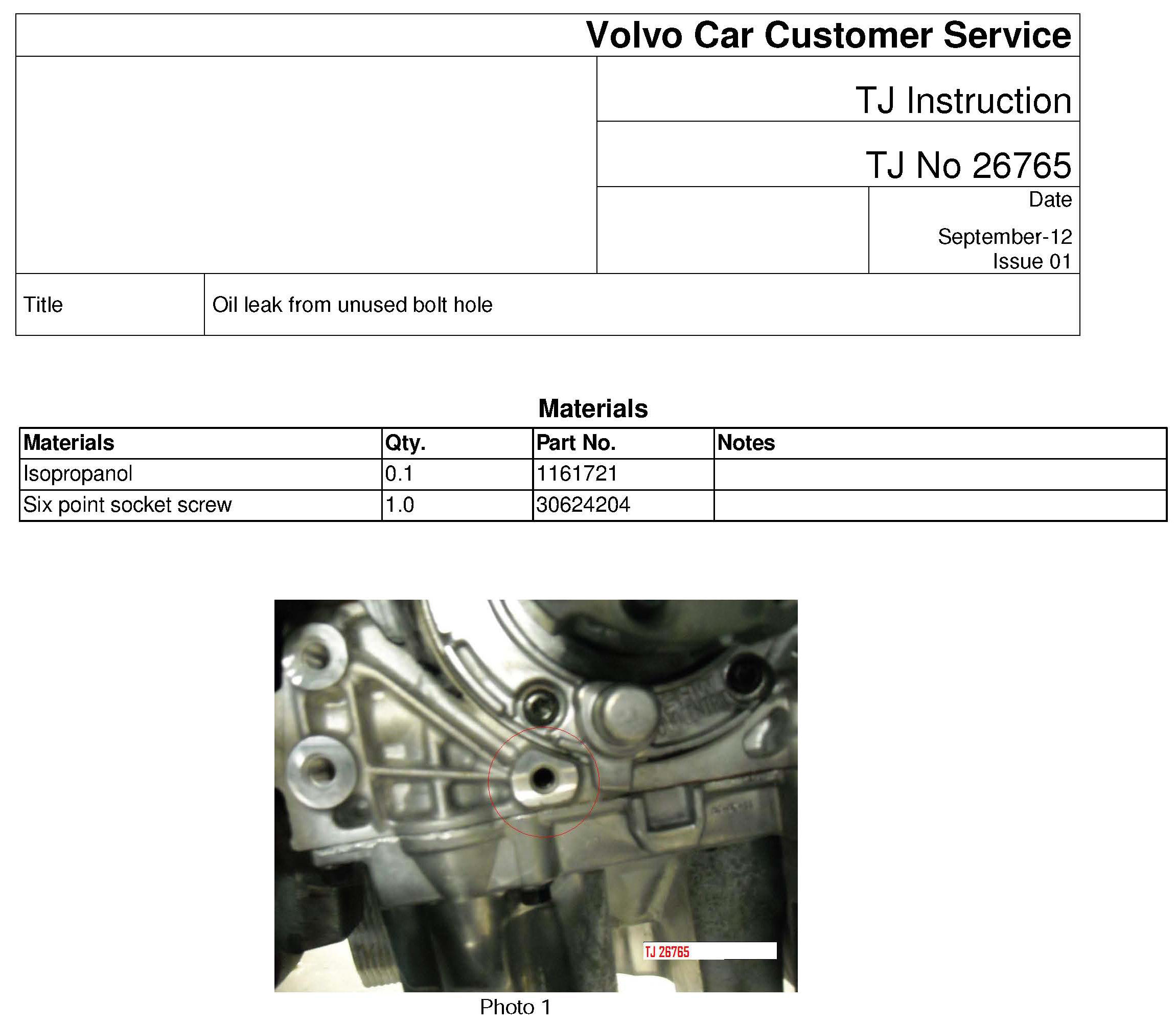

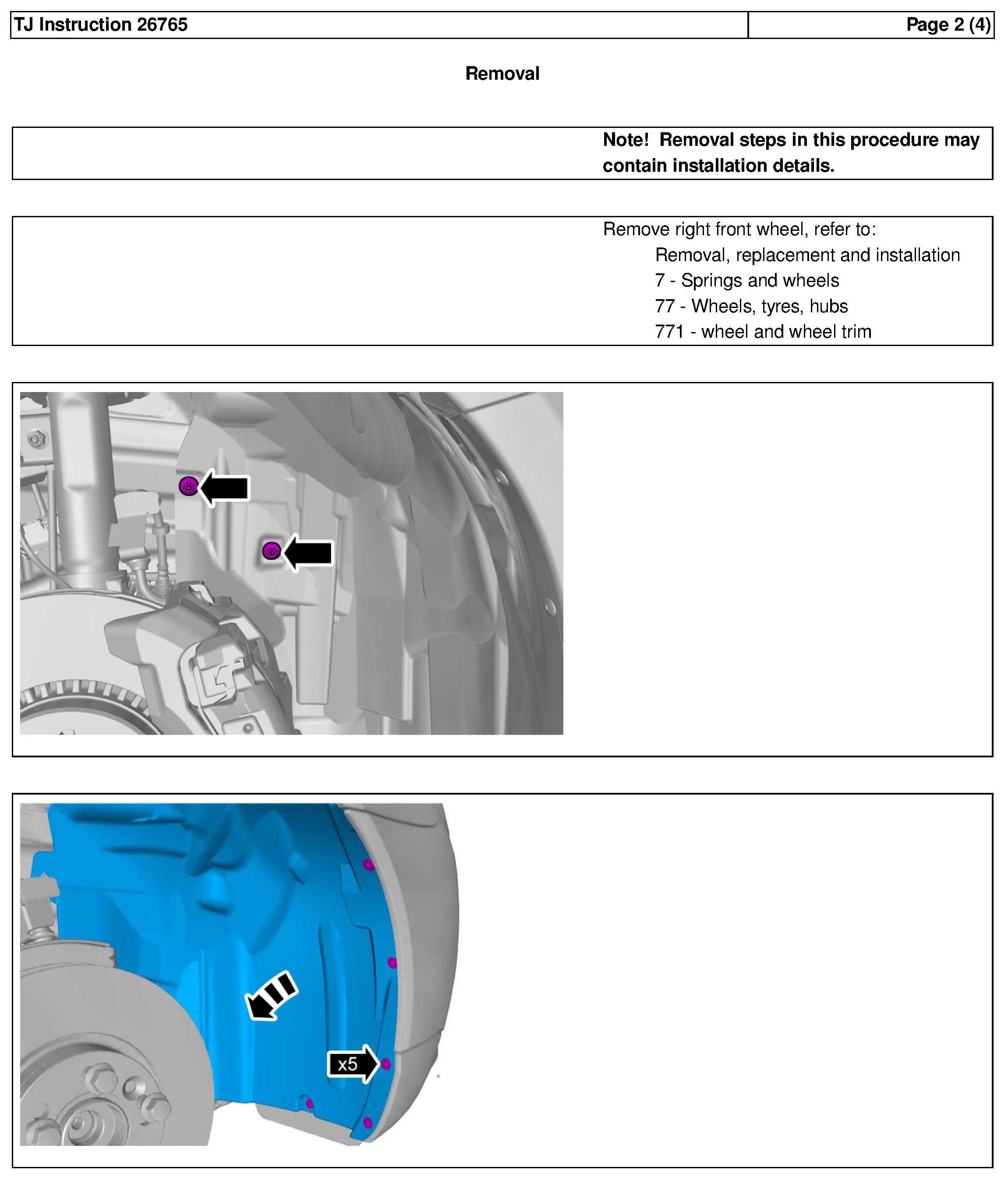

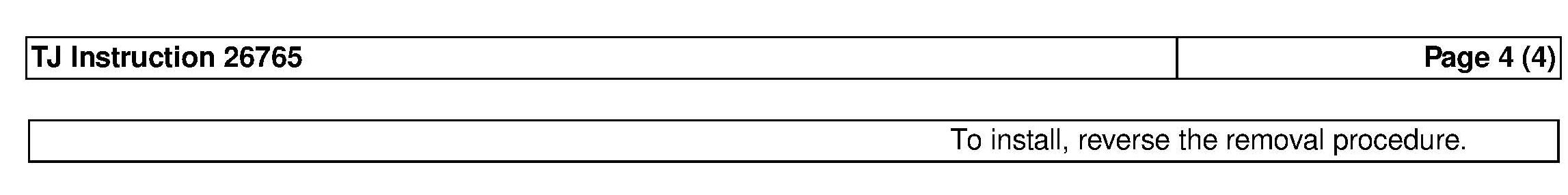

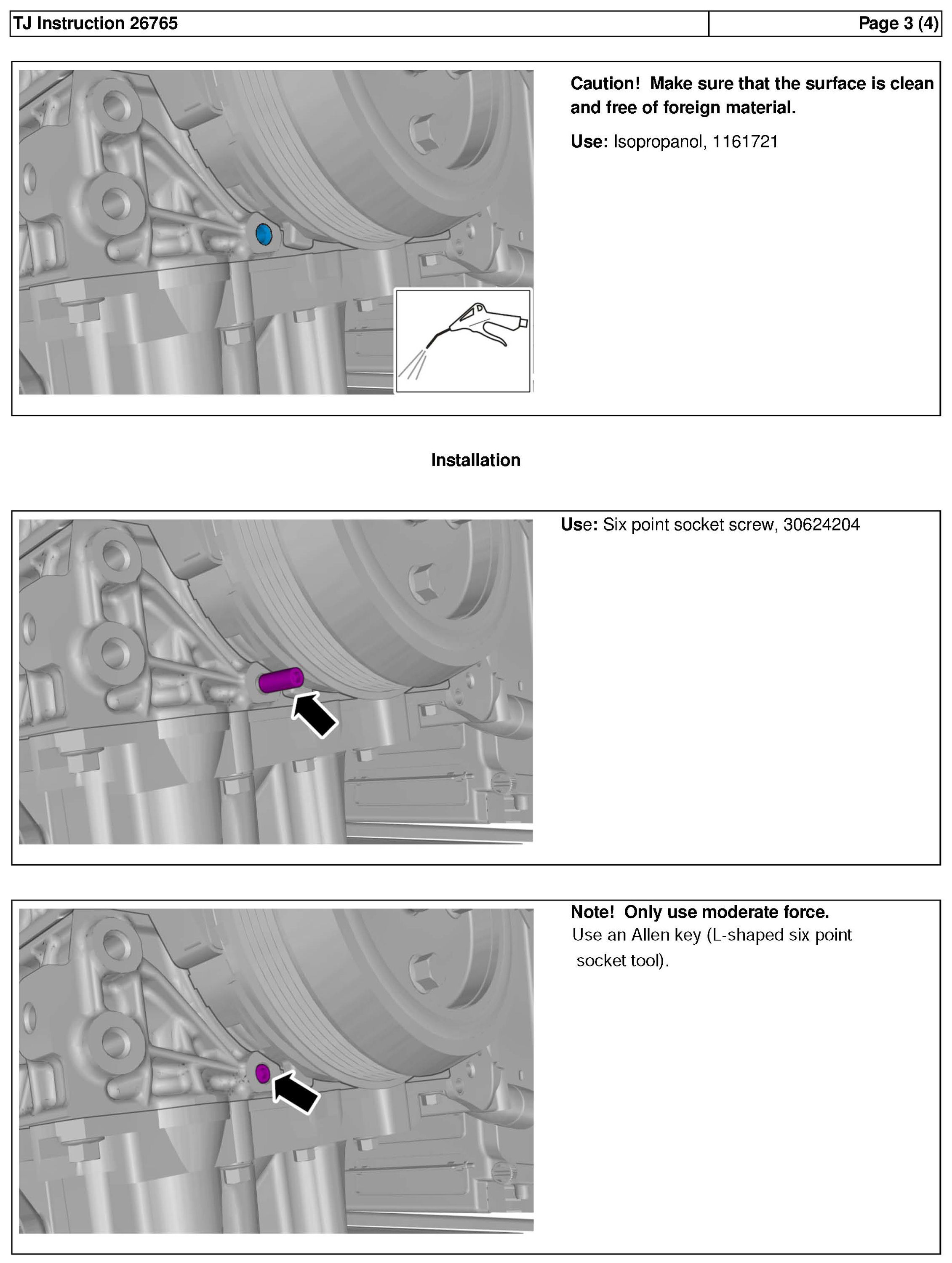

Seal the hole according to the instruction in this TJ. See attachment.
VSTG OPERATION NUMBER:
Operation number 98423-2 - Oil leak product fix acc. to TJ26765 - 0.3 hrs

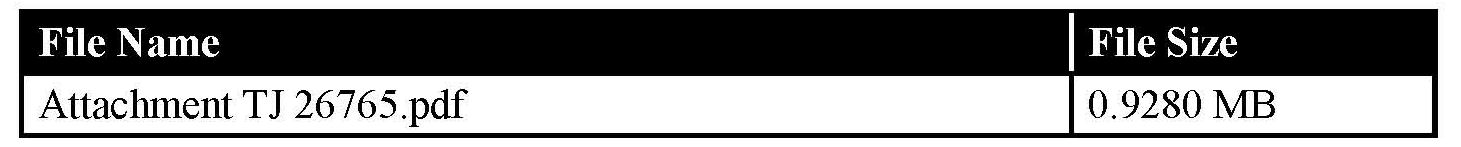

To view TJ attachment continue:
