Removal and Replacement
Throttle body (electronic throttle module (ETM)), replacing
Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.
Removal
Removing the air cleaner (ACL)
Remove the hose clamp from the mass air flow (MAF) sensor. Disconnect the connector from the mass air flow (MAF) sensor.
Remove:

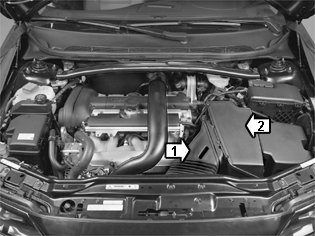

- the 4 x screws for the fresh air intake (1) between the front cover plate and the air cleaner (ACL). Remove the hose
- the 3 x screws for the air cleaner (ACL)
- the air cleaner (ACL) (2) assembly
- the charge air pipe between the charge air cooler (CAC) and the electronic throttle module (ETM).
Removing the electronic throttle module (ETM)
Disconnect the connector for the electronic throttle module.
Remove the 4 x screws for the electronic throttle module (ETM).
Lift out the electronic throttle module (ETM). Discard the gasket.
Installation
Note! For tightening torques, see: Tightening torque Tightening Torque.
Replacing the electronic throttle module (ETM)
Caution! Ensure that the surfaces between the electronic throttle module (ETM) and the intake manifold are clean.
Install a new electronic throttle module (ETM). Use a new gasket. Tighten the 4 screws.
Installing the air cleaner (ACL)
Hint: Heat the pipe at the connections to facilitate installation.
Install:
- the charge air pipe between the electronic throttle module (ETM) and the charge air cooler (CAC). Tighten the hose clamps
- the air cleaner (ACL) (2) assembly. Tighten the screws
- the fresh air intake (1) between the air cleaner (ACL) and the front cover plate. Tighten the screws. Connect the connector to the mass air flow (MAF) sensor. Tighten the hose clamp.
Finishing
After replacing the electronic throttle module (ETM), the electronic throttle module (ETM) must be adapted. See: VIDA vehicle communication: "Adaptation of the electronic throttle unit".
Start the vehicle. Check the function.
