Loudspeaker, Rear Side Door, Replacing






Loudspeaker, rear side door, replacing

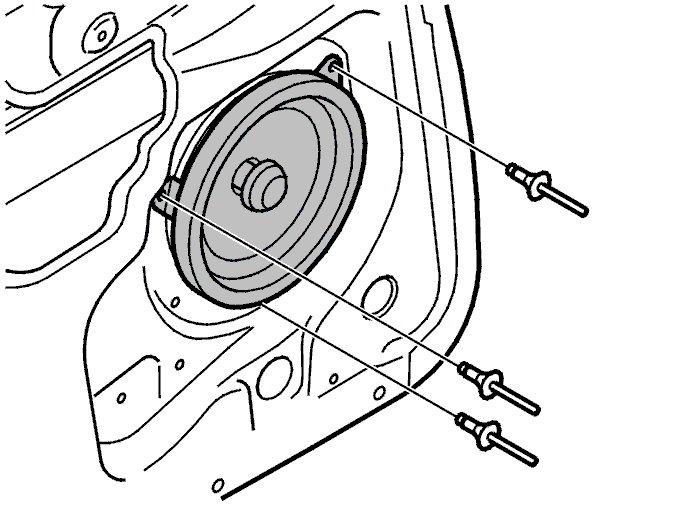

Removing the loudspeaker
Remove the panel. See Panel, rear side door, replacing Panel, Rear Side Door, Replacing.




Drill out the blind rivet. See Removing rivet .
Disconnect the cable harness.

Install:
- the cable harness
- the blind rivet
- the panel.

Note! Always use new blind rivets, P/N 982565.
