Entertainment Systems: Locations

Component position

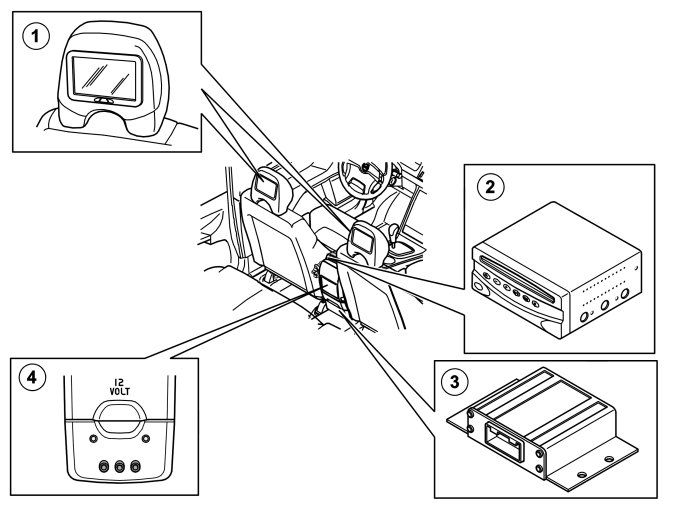

Location Of Components (Component Position):

1. Screen, headrest (16/81A, B).
2. DVD-player with integrated Rear seat entertainment module (RSE)(16/82).
3. Rear audio separation module (16/122).
4. Aux-outlet (16/123).
