Engine Compartment

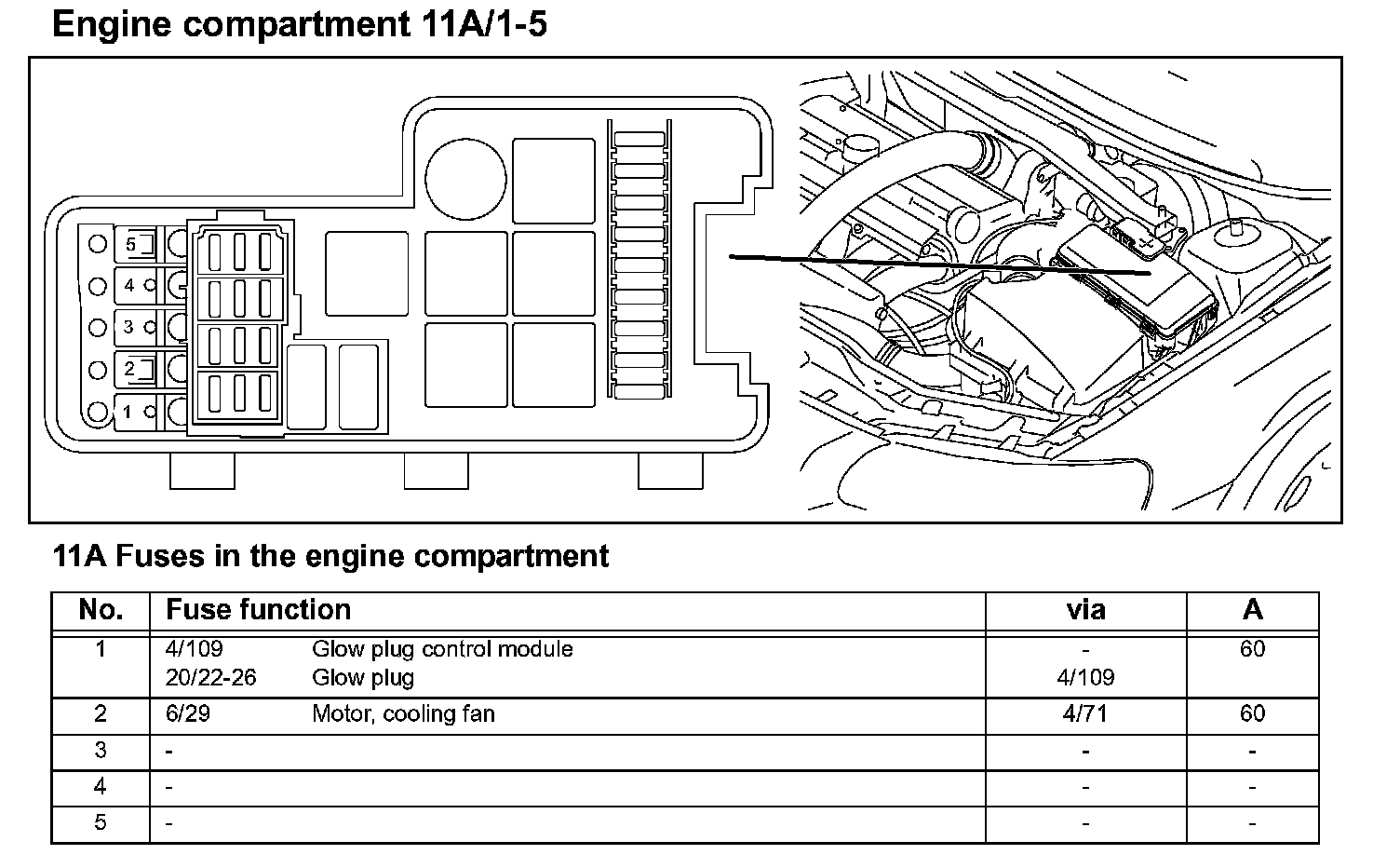

Engine Compartment 11A/1-5:

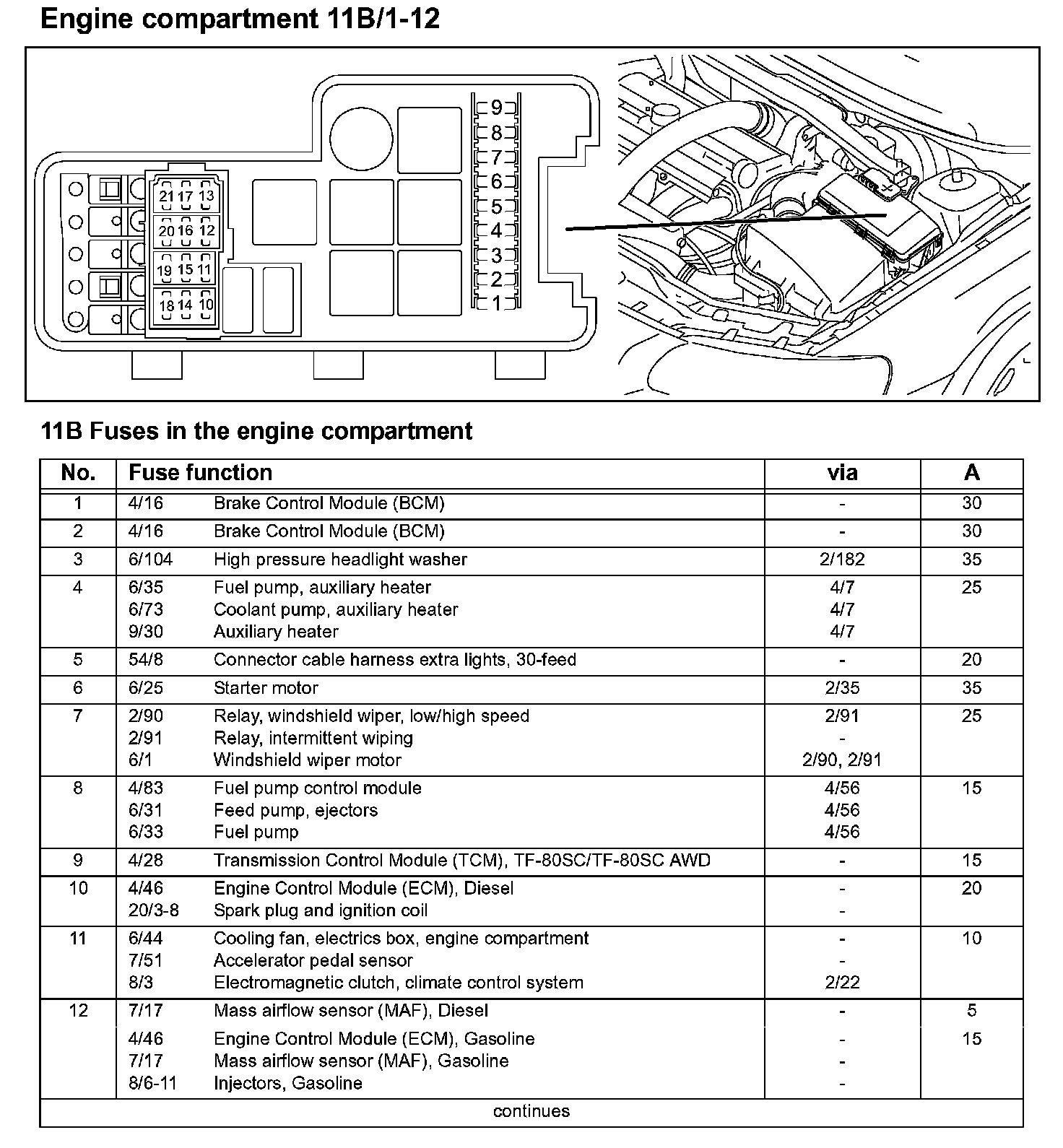

Engine Compartment 11B/1-12:

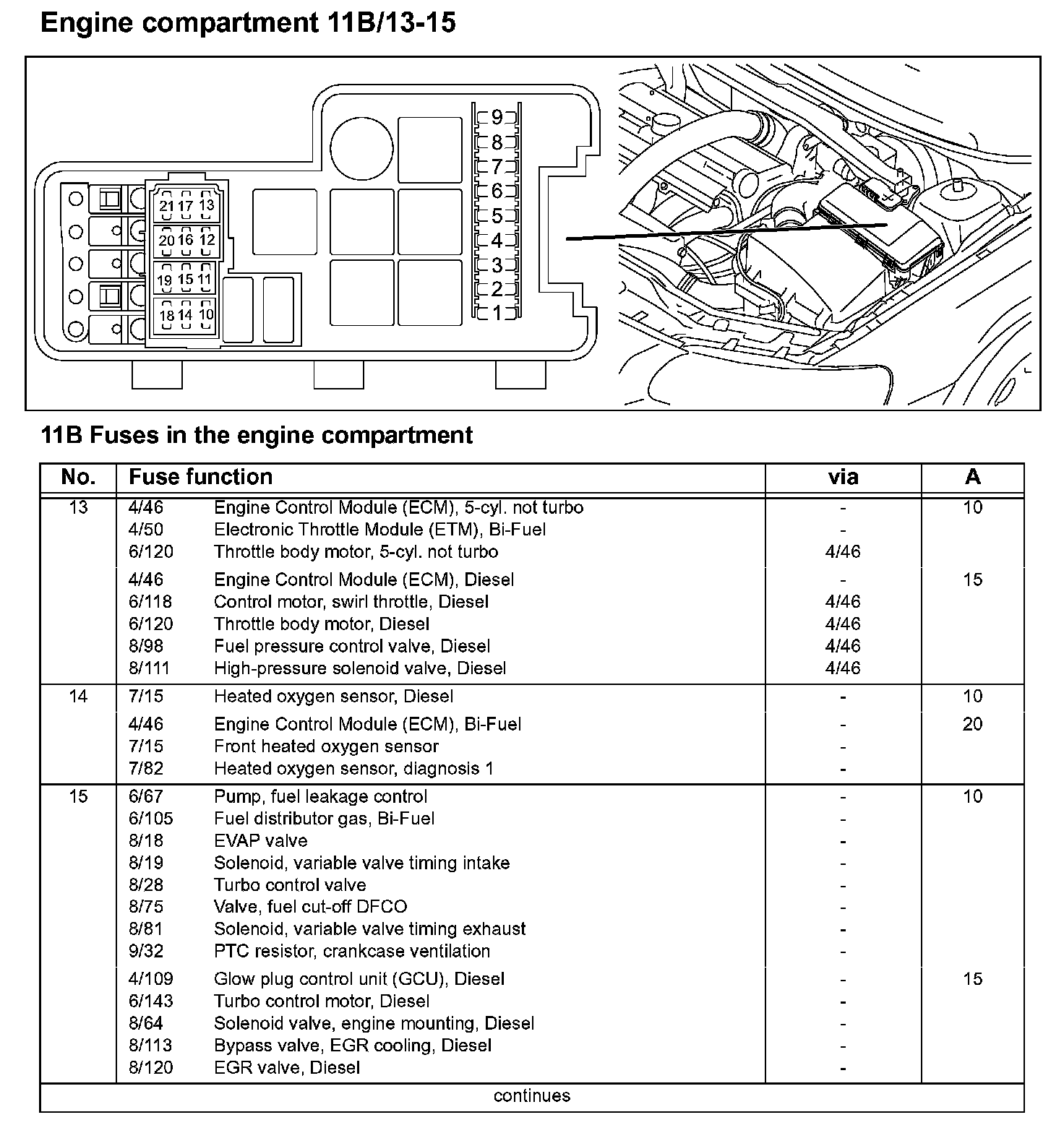

Engine Compartment 11B/13-15:

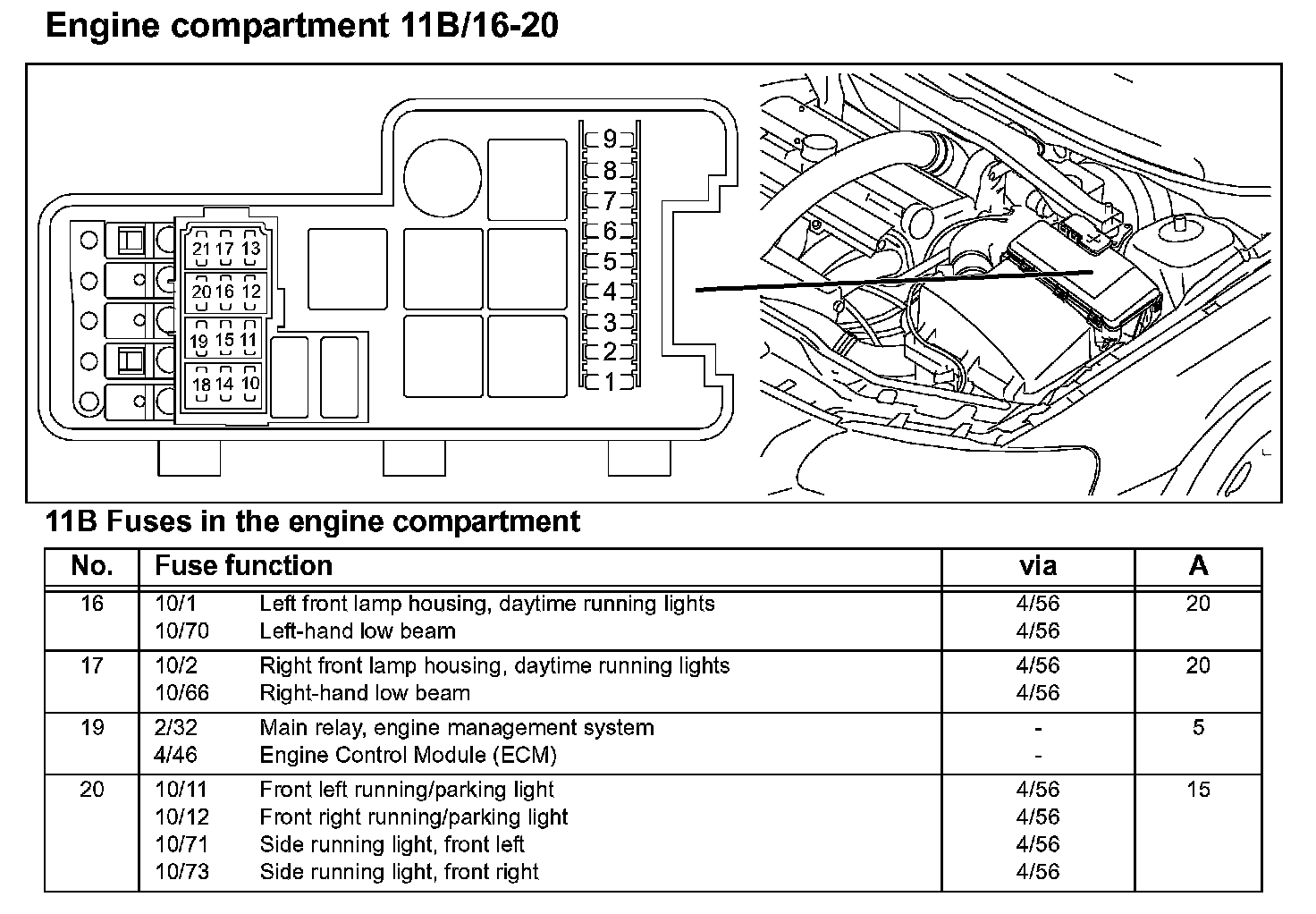

Engine Compartment 11B/16-20:
