Tightening Torque

Installing the cylinder head





Install a new cylinder head gasket.
Install the cylinder head.
Ensure that no wiring or hoses are trapped between the cylinder head and cylinder block.
Use new screws. Lubricate and install all the screws.

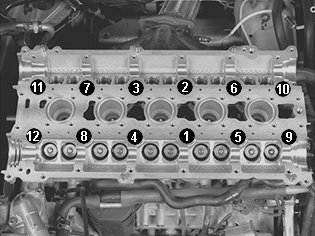

Tighten the screws as illustrated.
Tighten the screws in the following order:
1. 20 Nm.
2. 60 Nm.
3. Angle tighten 130°. Use protractor 951 2050 BEVEL PROTRACTOR 951 2050 Bevel Protractor.
