Front

Brake pads, front

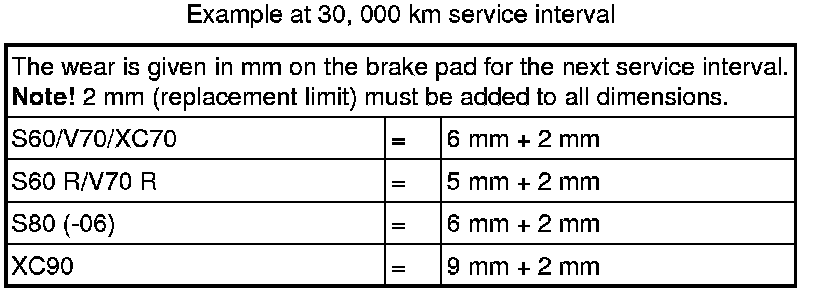

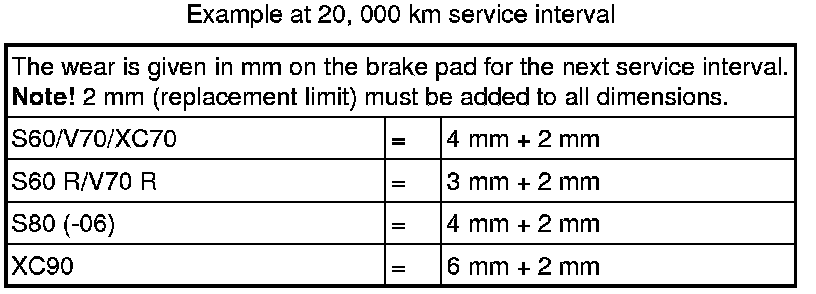

Note! The brake pads are measured in place in the brake caliper.

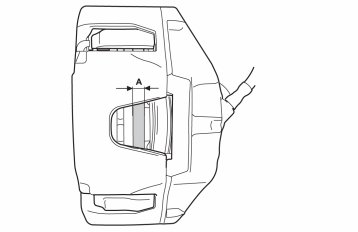

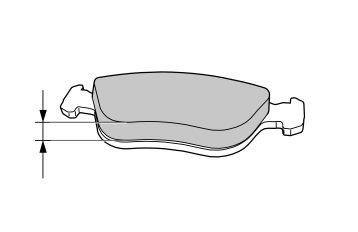

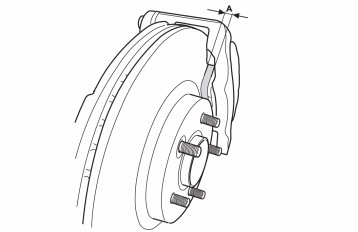

The illustrations show where to measure the thickness of the pad.

Note! The brake pad's backing plate is not included in the dimensions.
