Signal Specification, Supplemental Restraint System Module (SRS)

Signal Specification

General
All values given below are between the terminals stated in column 2 and the ground terminal on the body for the control module.

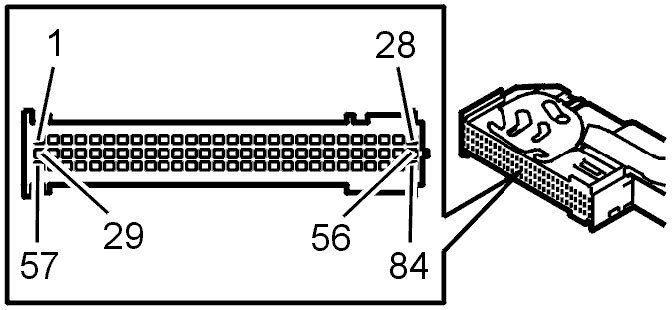

NOTE: It is important to connect the breakout box and check the ground terminals before taking readings. The adapter has two terminals for the breakout box. The signals in the 84-pin connector are split between adapter terminals A and B. For some VIDA fault-tracing, the connectors are numbered #1A-#28A, #1B-#28B and #1C- #28C. This is because fault-tracing is used from previous model years. From and including model year 2003, the connectors are numbered #1-#84.

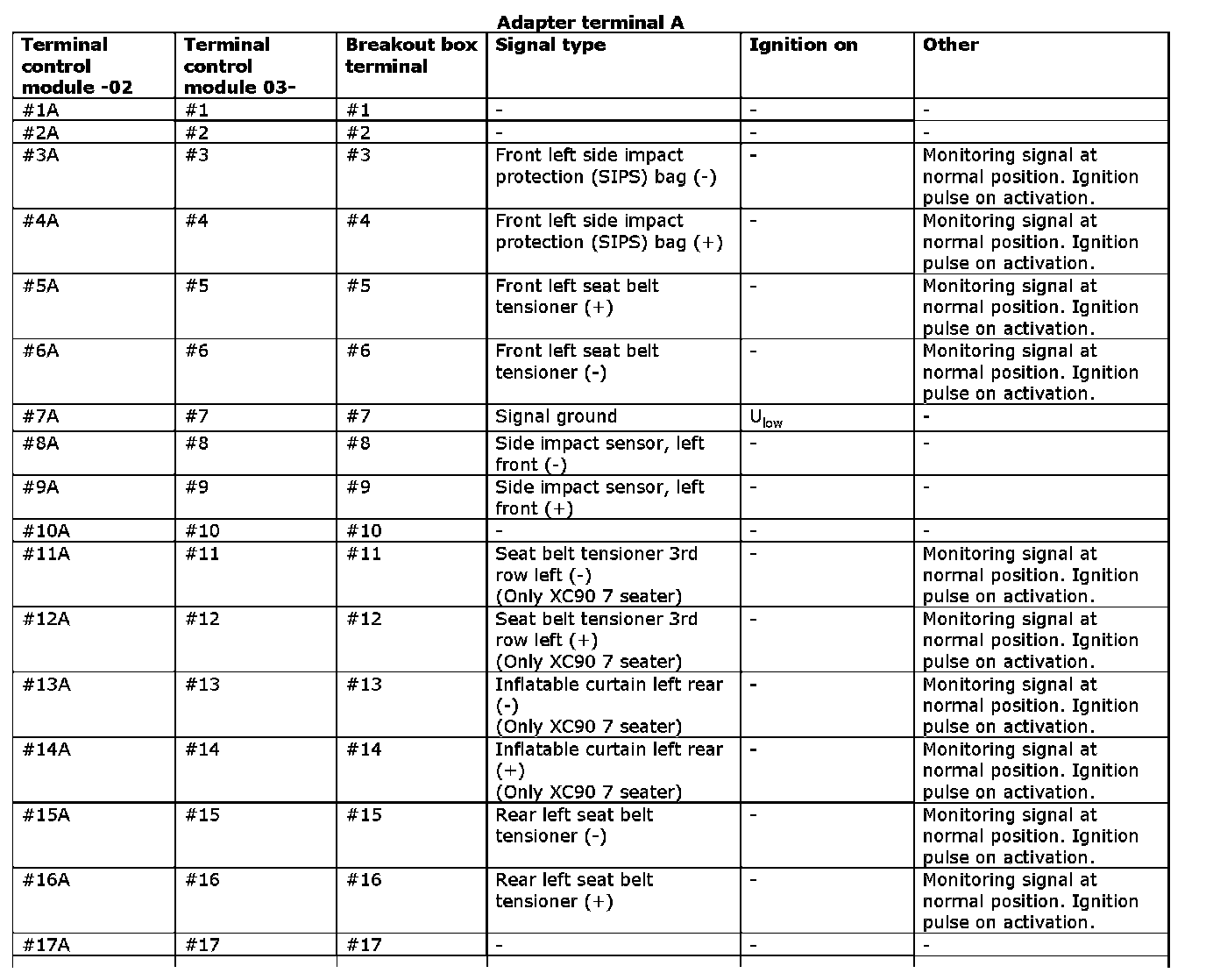

- Terminals #1A-#28A correspond to terminals #1-#28

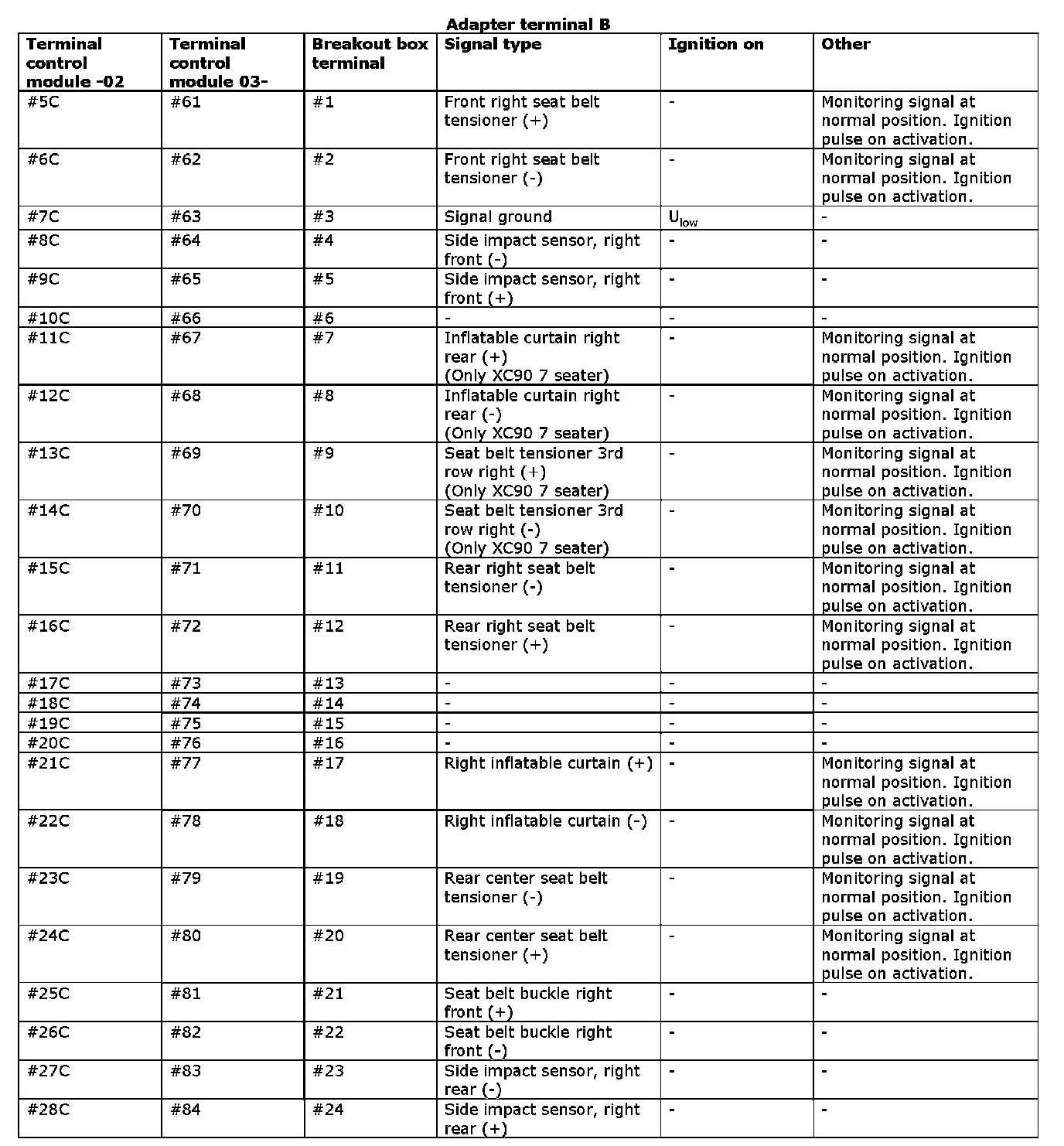

- Terminals #1B-#28B correspond to terminals #29-#56

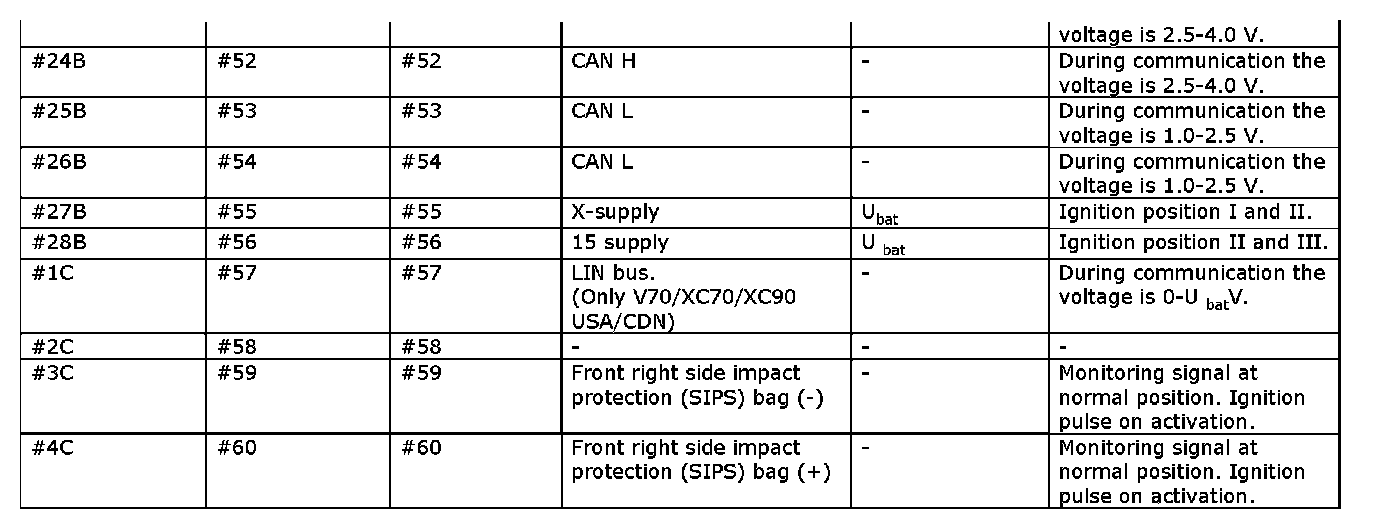

- Terminals #1C-#28C correspond to terminals #57-#84.

U= DC voltage in volts (V)
U(bat) = Battery voltage (V)
U(low) = Voltage approximately 0 V
