Fuel Pump Control Unit: Service and Repair

Control module fuel pump (FP), replacing

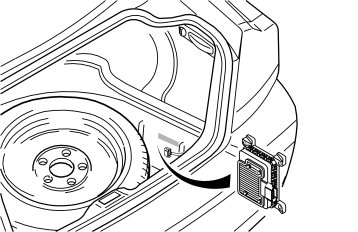

Note! Some variation may occur. However, the essential information in the illustrations is always correct.

Removal









Remove:
- luggage compartment mat/floor hatches so that the spare wheel well can be released
- connector from control module
- control module from Velcro fastener

Installation





Install:
- new control module
- connector for control module
- luggage compartment mat/floor hatches
