Headlamp Control Module: Specifications

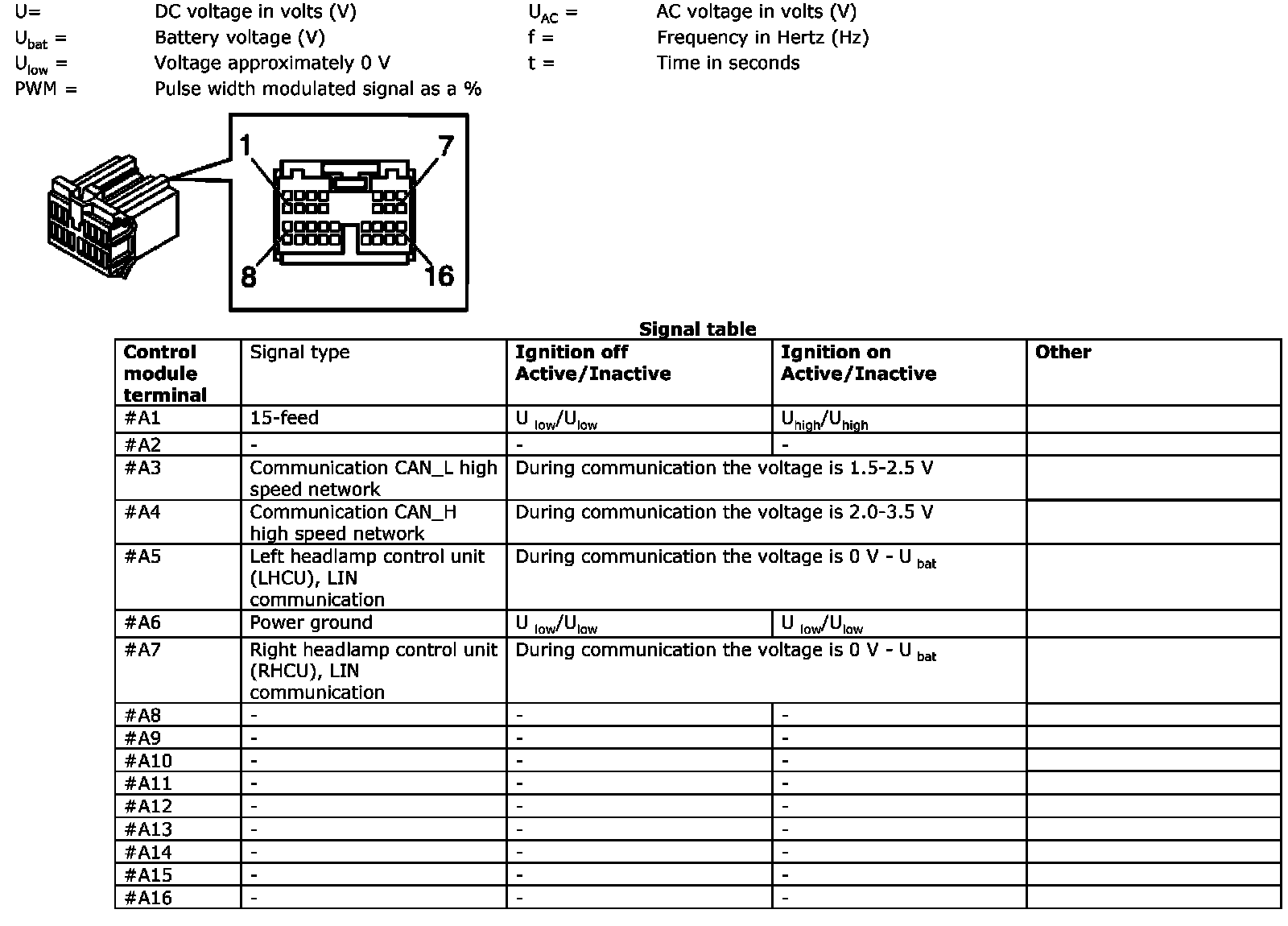

Signal description, headlamp control module (HCM)

Signal specification

General
All the values given below are between the respective terminal in column 1 and terminal #A6 in column 1 (power ground), if this is not the case, it is indicated within brackets.

NOTE: It is important to check ground terminals before taking readings.
