Home >> Volvo >> 2007 >> S60 2.5T AWD L5-2.5L Turbo VIN 59 B5254T2 >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams >> Automatic Transmission

Automatic Transmission

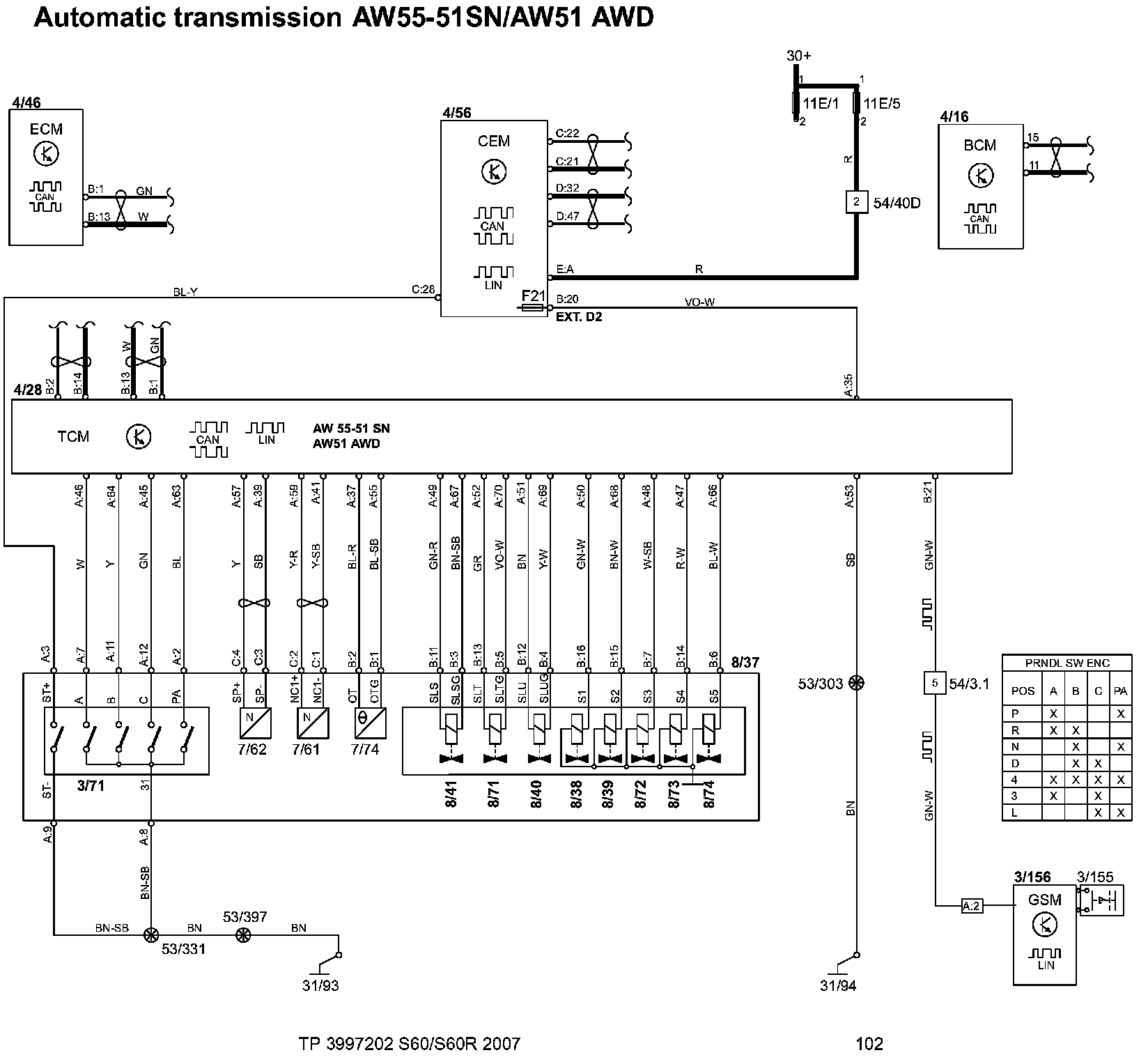

Automatic Transmission AW55-51SN/AW51 AWD


Automatic Transmission AW55-51SN/AW51:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
