Accessory Electronic Module (AEM)

Accessory Electronic Module (AEM)

Accessory Electronic Module (AEM)

Note!
- Steps 1 - 16 apply to S60 and S80.
- Steps 17 - 39 apply to V70.

Applies to S60 and S80

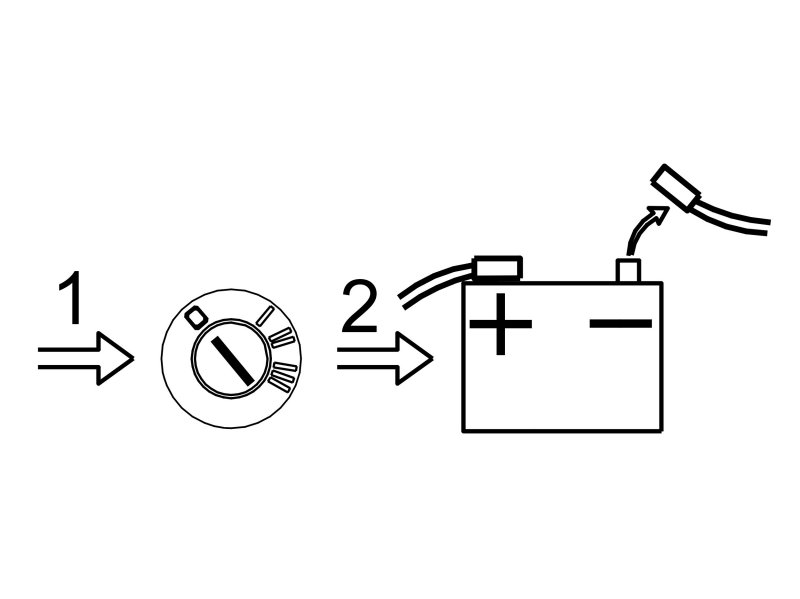

- Turn the ignition switch to position 0.
- Disconnect the battery negative lead.

Note! Wait at least five minutes before disassembling the connectors or removing other electrical equipment.

- Remove the cargo compartment carpet.
- Remove the clips from the lower edge of the folding panel by pressing in the clip centre until there is an audible click.
- Remove the clips.
- Unscrew the front clip.
- Repeat the operation on the other side.

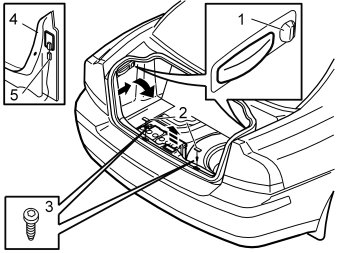

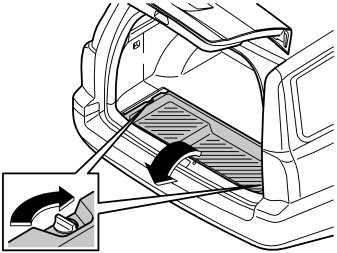

- Turn the knob (1) on the right/left side 90°.
- Fold the panels inwards. Lift the panels out
- Remove the two covers (2) and the screws (3) underneath (applies to S80 only).
- First pull the boot lid sill panel (4) forward until the two clips on the right/left side release. Pull hard but carefully as the panel is securely fastened. Then pull the panel straight up until the four clips in the bottom edge release.
- Remove the wiring (5) for the cargo compartment lighting.
- Lift out the sill trim panel.

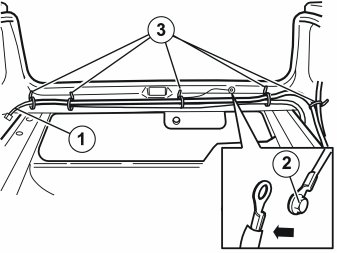

- Take the wiring harness (1) from the kit. Position it along the boot lid sill with the black connector to the right, in the rear edge on the right wheel housing.
- Remove the ground screw (2) and connect the ground cable of the new wiring harness to the existing grounding point. Tighten the ground screw securely.
- Take five cable ties (3) from the kit and secure the wiring harness to the existing wiring harness as illustrated.

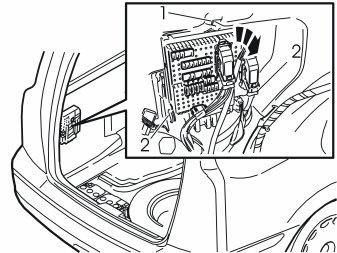

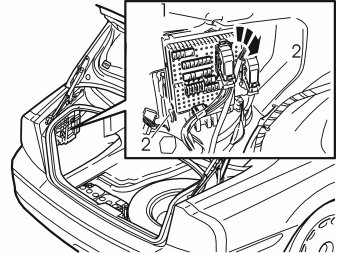

- Remove the Rear Electronic Module (REM) by opening the lock (1) on the top of the unit. Tip the unit forward and lift it out of the mountings (2).

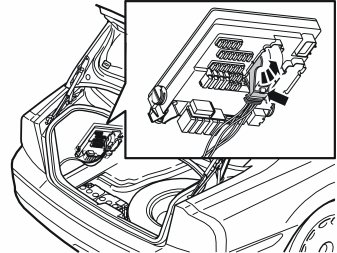

- Press in the catch on the rear brown connector in the fuse holder in the cargo compartment, turn the lock arm up as far as it will go and pull out the connector.

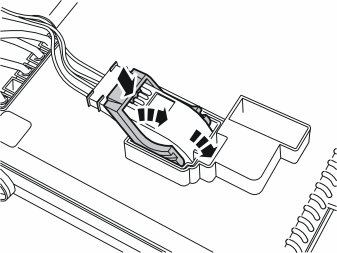

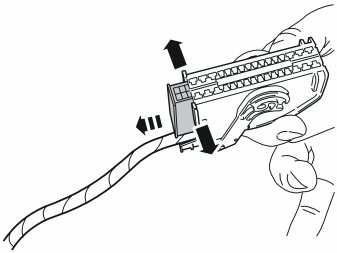

- Carefully prise apart the sides of the connector holder in the ends so that the connector can pass by the retaining hooks.
- Pull out the connector.

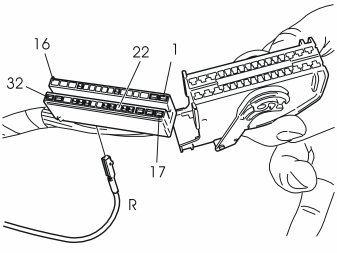

- Connect the red (R) cable to position 22.
- Reinstall the connector in the holder
- Reinstall the connector in the fuse holder.

- Press in the catch on the grey connector on the rear of the fuse holder in the cargo compartment, turn the lock arm up as far as it will go and pull out the connector.

- Carefully prise apart the sides of the connector holder in the ends so that the connector can pass by the retaining hooks.
- Pull out the connector.

Note! Make a note of the position number of the connector. These are located on the ends of the connector and in the bottom of the fuse holder.

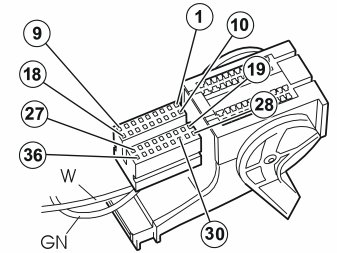

- Connect the green (GN) cable to position 19 in the connector. Connect the white (W) cable to position 30.
- Reinstall the connector in the holder
- Reinstall the connector in the fuse holder.
- Refit the Rear Electronic Module (REM).

- Fit fuse 15A from the kit in position 3 on the fuse holder.

- Install the new bracket on the right-hand rear side member as illustrated
- Install and tighten the bracket parallel with the side member. Use the screw and the nut from the kit

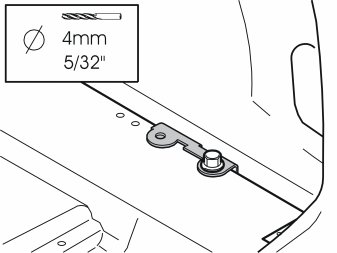

- Drill a -4 mm (5/32") hole in the side member, through the front hole in the bracket.
- Remove any swarf.
- Detach the bracket and treat the edges of the holes using a rust-proofing agent.
- Tighten the bracket to the side member.
- Tighten the rear bolt/nut to 10 Nm (8 lbf.ft.).

Applies to cars equipped with a Diversity aerial amplifier

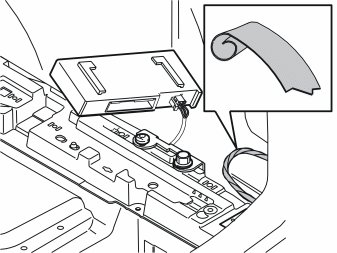

- Wrap foam tape around the cable / wiring for the aerial amplifier.

Applies to all models

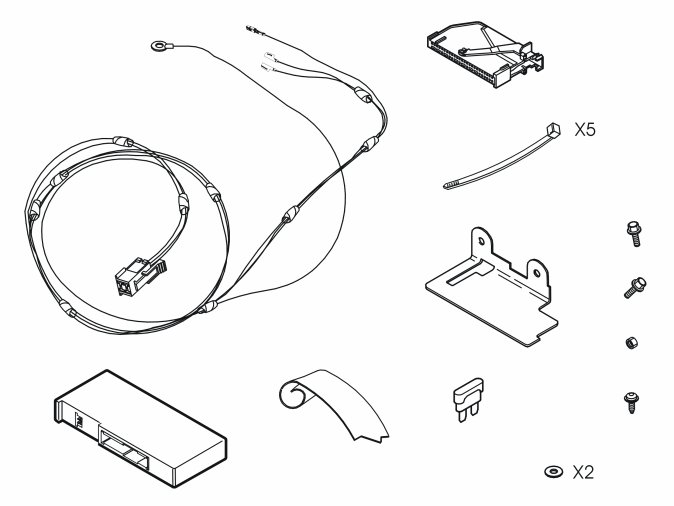

- Take the accessory electronic module from the kit. Connect the routed cable to the cable illustrated.

- Press the control module onto the bracket by the side member

- Plug in the connectors of the cargo compartment lighting and refit the sill panel.
- Turn the ignition key to position II.
- Reconnect the battery negative lead
- Reposition the folding panels and refit the cargo compartment carpet.
- Program the software according to the service information in VIDA.

Applies to the V70

- Turn the ignition switch to position 0.
- Disconnect the battery negative lead.

Note! Wait at least five minutes before disassembling the connectors or removing other electrical equipment.

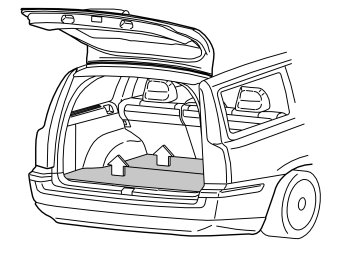

- Remove both the floor hatches. First lift the rear edges of the floor hatches slightly. Then pull the hatches backwards from their mountings.

- Remove the storage box under the rear floor hatch by turning the clip on the right and left-hand side 90°. Lift out the box.

- Remove the left folding panel from the cargo compartment.
- Repeat the operation on the other side.

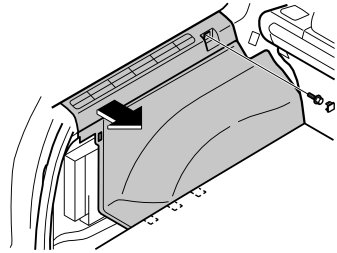

- Remove the left side panel by first removing the cover and the screw from the front edge.
- Pull the top edge of the panel out until the clips release
- Fold the panel inwards. Lift the panel out.
- Repeat the operation on the other side.

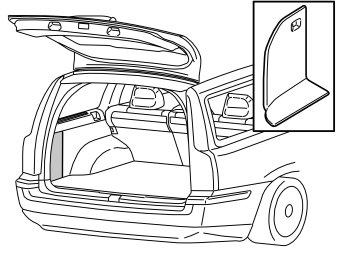

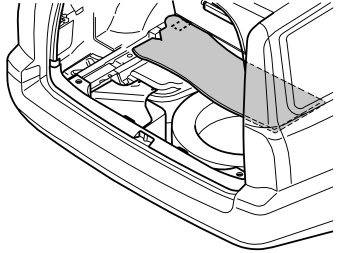

- Remove the insulation panel from the cargo compartment.

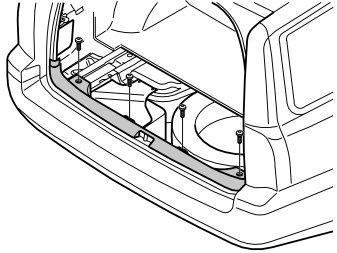

- Remove the 4 x screws in the tailgate sill panel.

- Remove the three screws (1) from the right-hand floor support
- Remove the floor support.

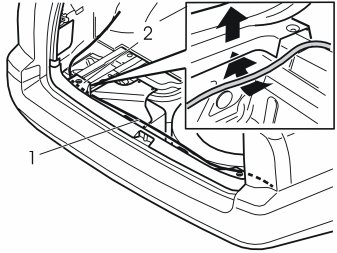

- Take the wiring harness (1) from the kit and position it along the tailgate sill panel with the black connector to the right.
- Carefully pull the tailgate sill panel upward at the left-hand corner until there is an audible click and the clips release.
- Lift the panel and insert the wiring harness into the gap between the floor support (2) and the panel.
- Insert the cable as far under the panel as possible. Ensure that the cable is not trapped
- Also insert the cable under the sill panel on the right side and then out to the rear edge of the wheel housing.

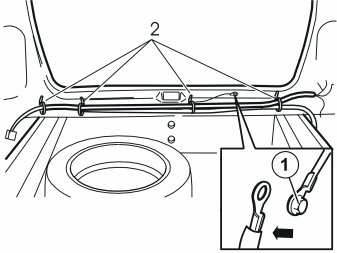

- Remove the ground screw (1) and connect the ground cable of the new wiring harness to the existing grounding point. Tighten the ground screw securely.

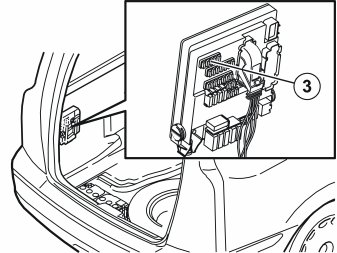

- Take four cable ties (2) from the kit and secure the wiring harness to the existing wiring harness as illustrated.
- Press the sill panel into place.
- Reinstall the screws in the panel. Tighten.

- Remove the Rear Electronic Module (REM) by opening the lock (1) on the top of the unit. Tip the unit forward and lift it out of the mountings (2).

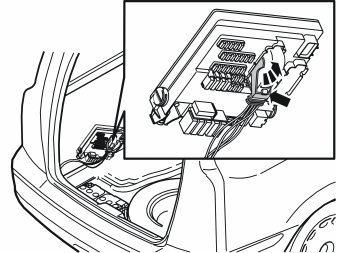

- Press in the catch on the rear brown connector in the fuse holder in the cargo compartment, turn the lock arm up as far as it will go and pull out the connector.

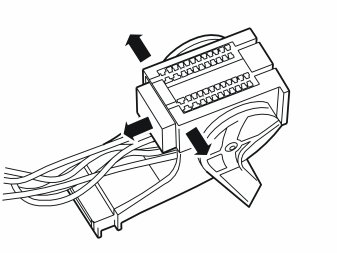

- Carefully prise apart the sides of the connector holder in the ends so that the connector can pass by the retaining hooks.
- Pull out the connector.

- Connect the red (R) cable to position 22.
- Reinstall the connector in the holder
- Reinstall the connector in the fuse holder.

- Press in the catch on the grey connector on the rear of the fuse holder in the cargo compartment, turn the lock arm up as far as it will go and pull out the connector.

- Carefully prise apart the sides of the connector holder in the ends so that the connector can pass by the retaining hooks.
- Pull out the connector.

- Fit fuse 15A from the kit in position 3 on the fuse holder.

- Tighten the bracket of the accessory electronic module in the rear right hole for the floor support parallel to the side member as illustrated. On newer cars, there is a foam rubber block on the right-hand side member. This is to be kept in place and is compressed when the bracket is fitted in place.

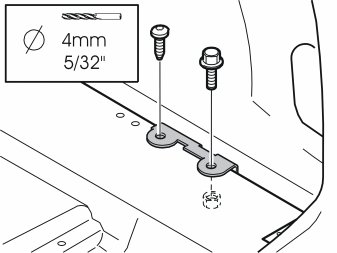

- Drill a -4 mm (5/32") hole in the side member, through the front hole in the bracket.
- Remove the screw and the bracket
- Remove any swarf.
- Treat the edges of the holes using a rust-proofing agent.

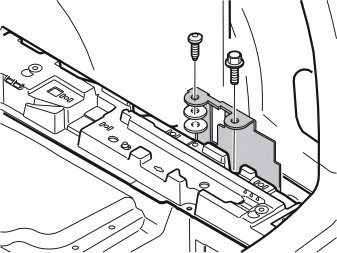

- Reinstall the floor support. Tighten the floor support together with the bracket for the accessory electronic module. Use the three M6-screws, tightening them to 10 Nm (8 lbf.ft.).
- Position two new spacer washers between the front hole in the bracket and the floor support. Tighten using a new self tapping screw.

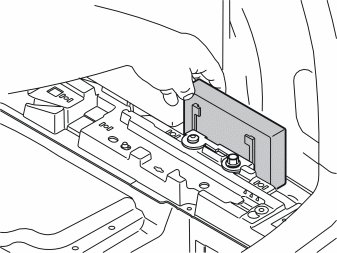

- Press the control module onto the bracket by the side member

- Turn the ignition key to position II.
- Reconnect the battery negative lead
- Reinstall the panels.
- Refit the insulation panel.
- Reinstall the storage box.
- Reinstall both floor hatches
- Program the software according to the service information in VIDA.
