Tow Hitch Cable Harness, 13-Pin



Tow Hitch Cable Harness, 13-pin

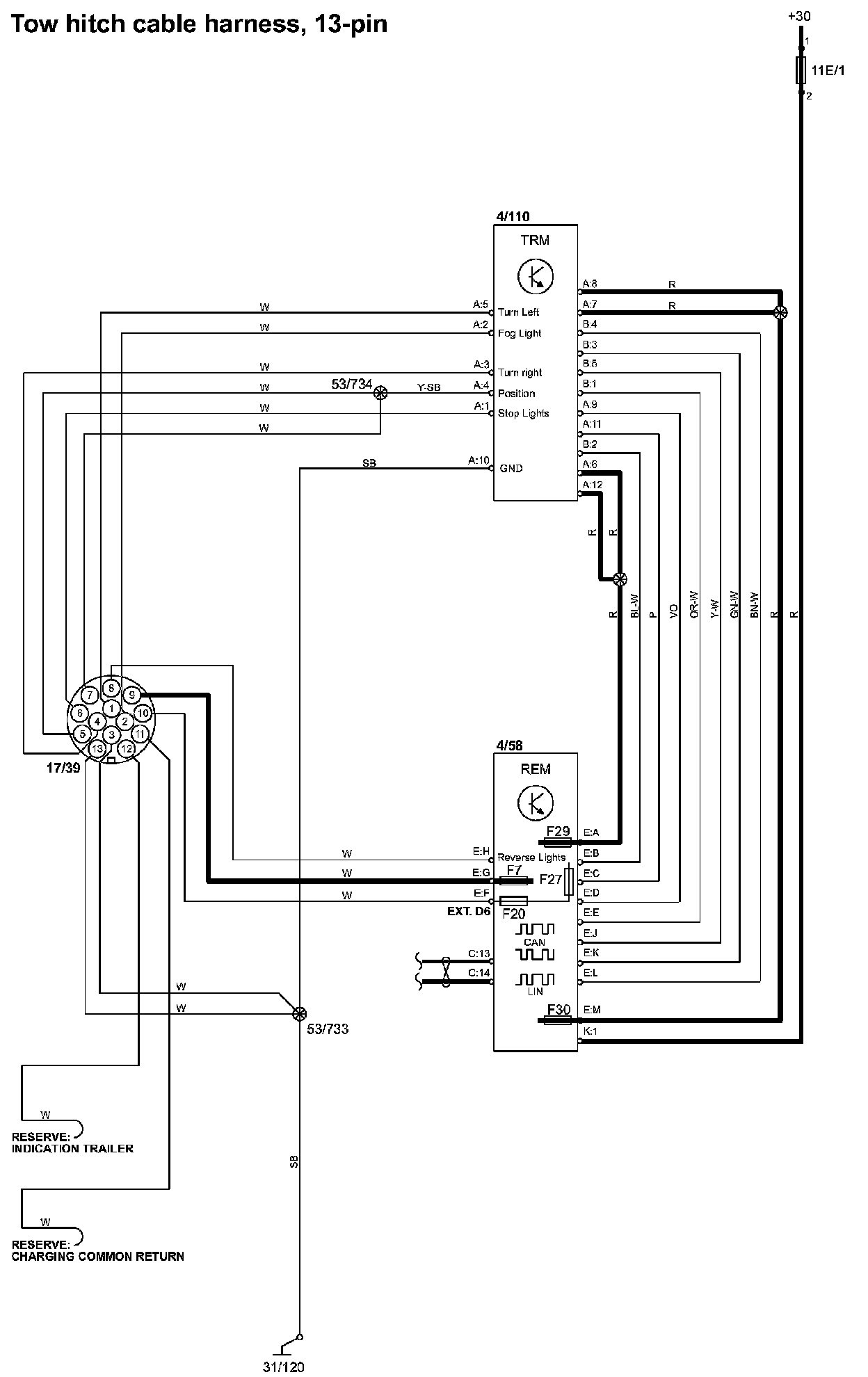

Tow Hitch Cable Harness, 13-Pin:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
