Audio With Auxiliary Amplifier

Audio With Auxiliary Amplifier

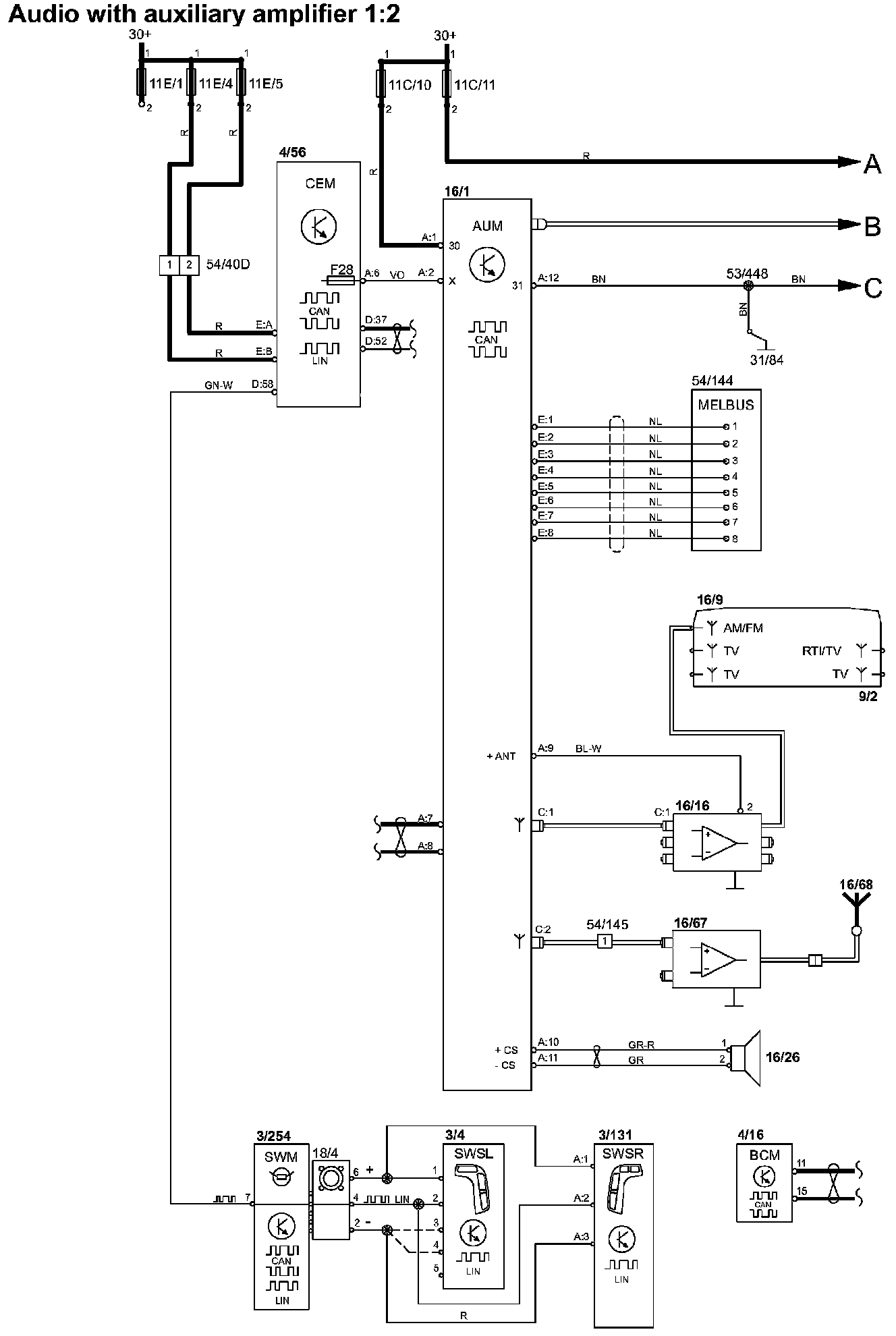

Audio With Auxiliary Amplifier 1:2:

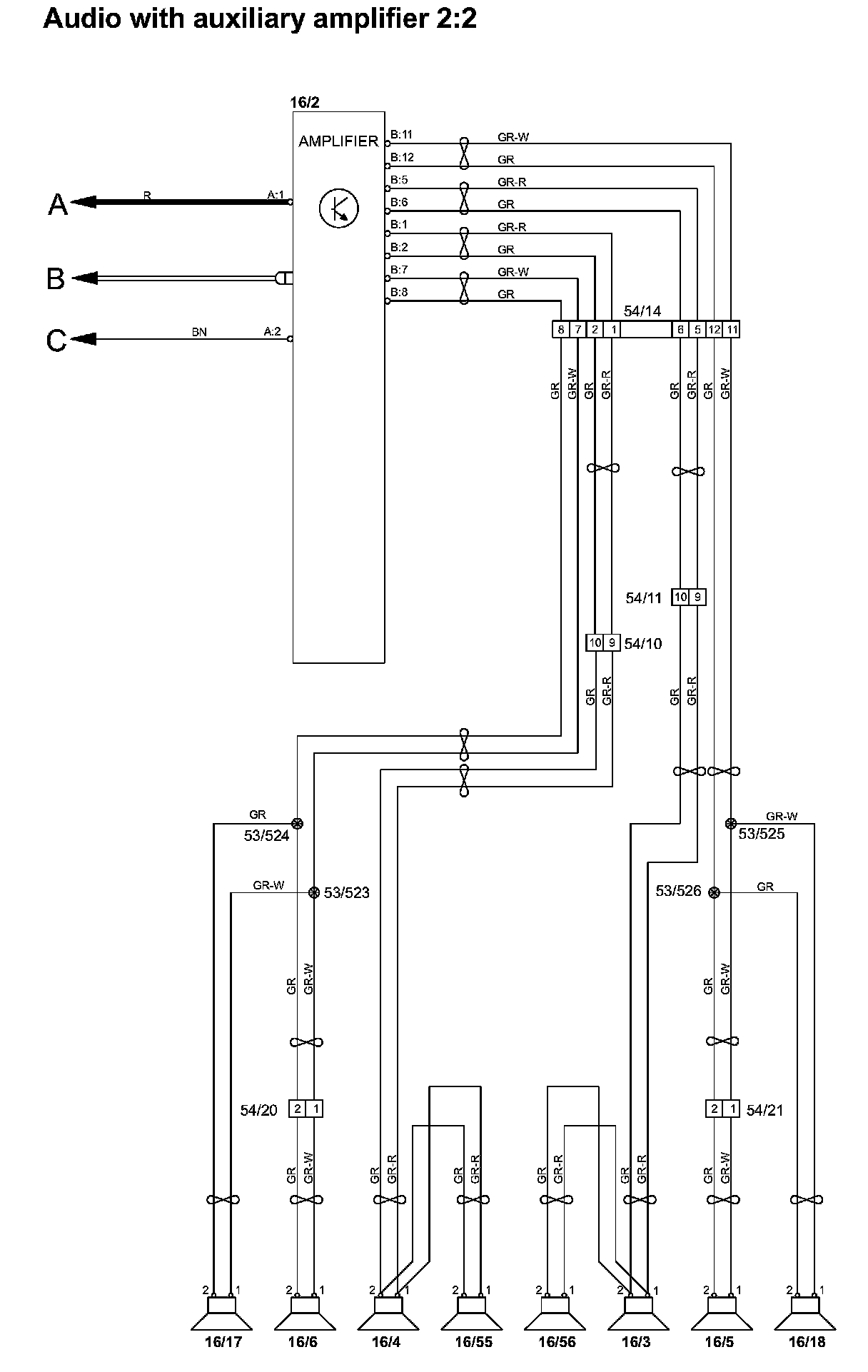

Audio With Auxiliary Amplifier 2:2:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
