System Diagram

Engine Management System, 5-cyl. Turbo

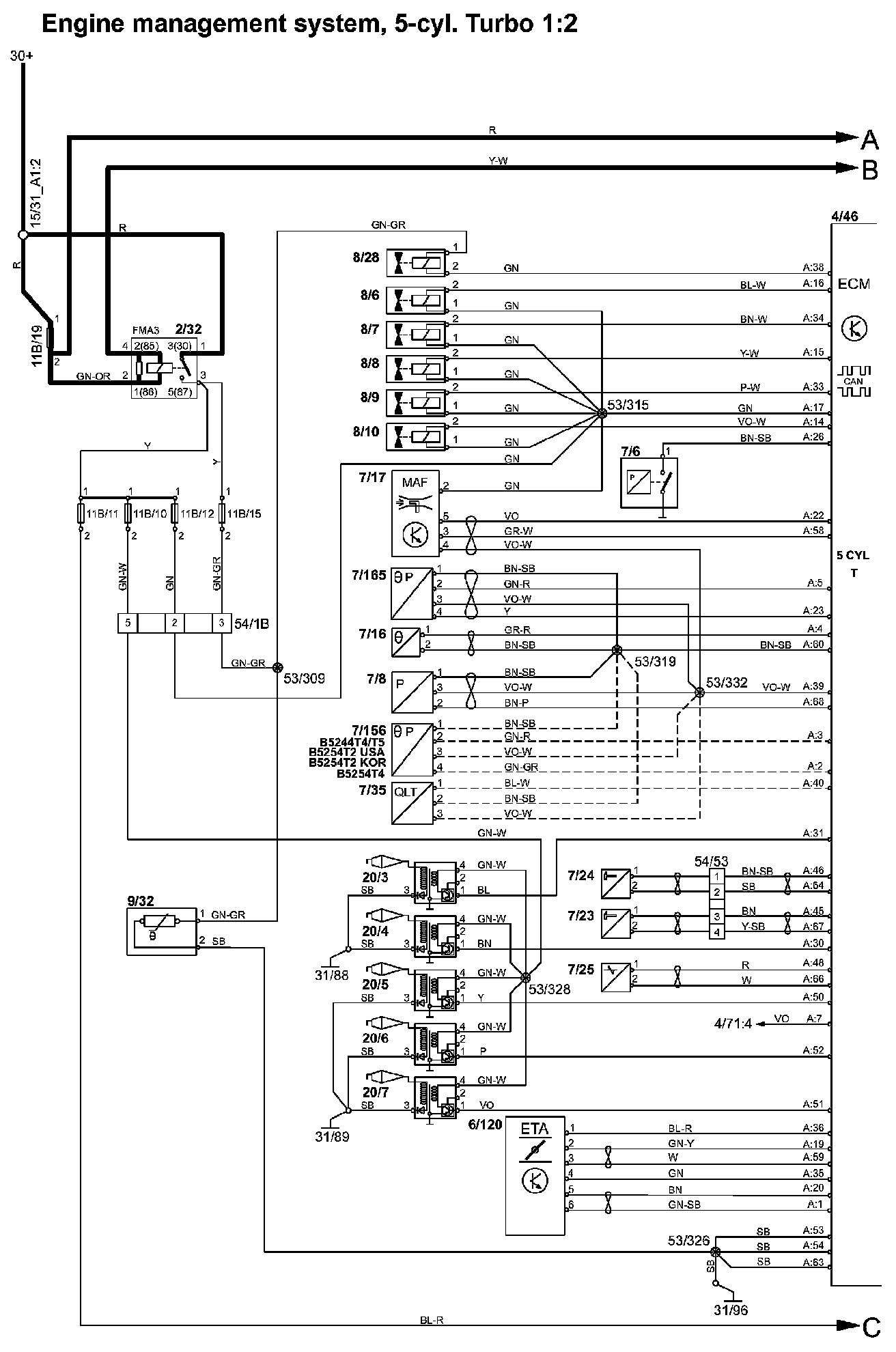

Engine Management System, 1:2:

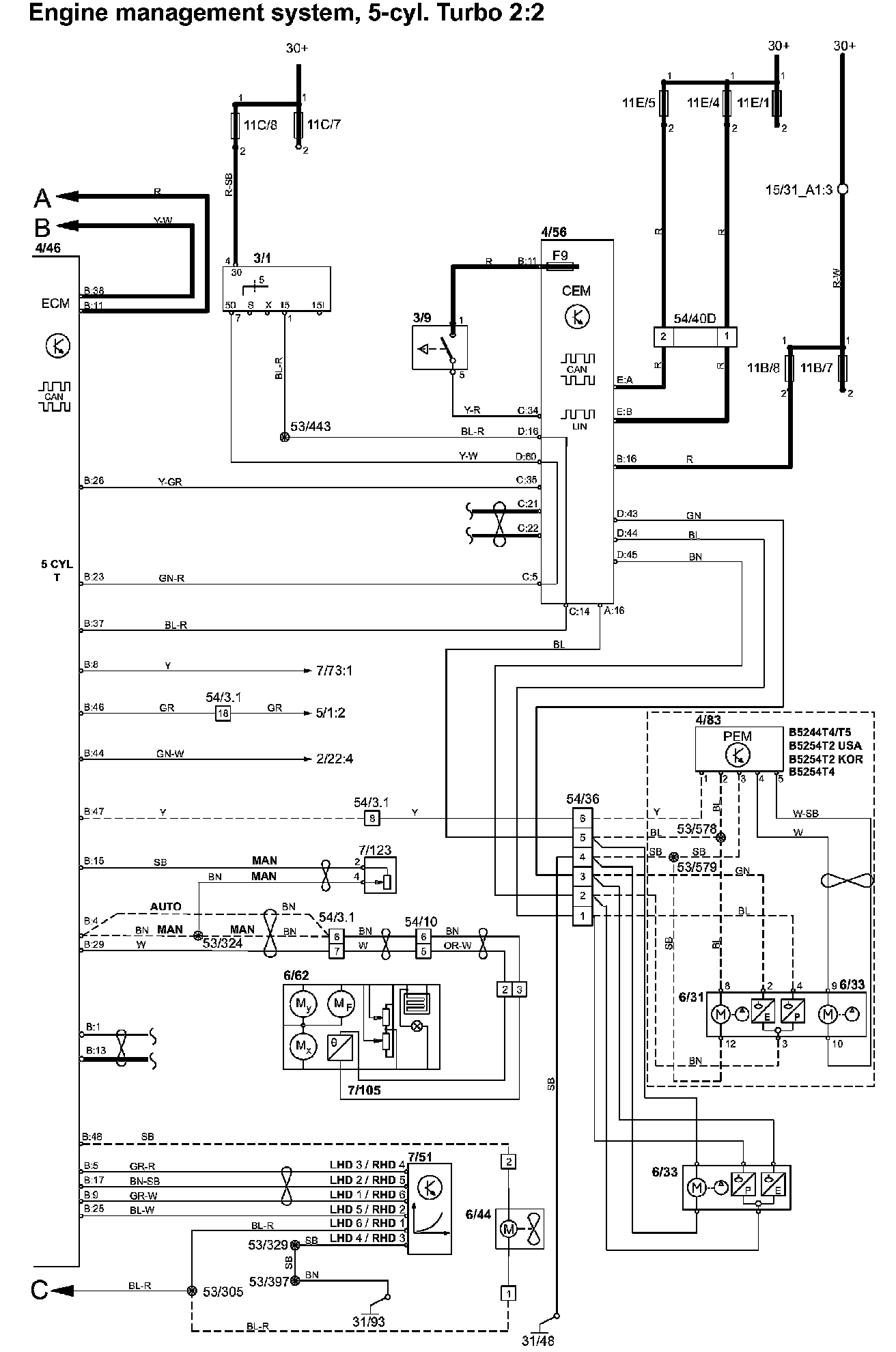

Engine Management System, 2:2:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
