Road Traffic Information Module (RTI) & CD Changer

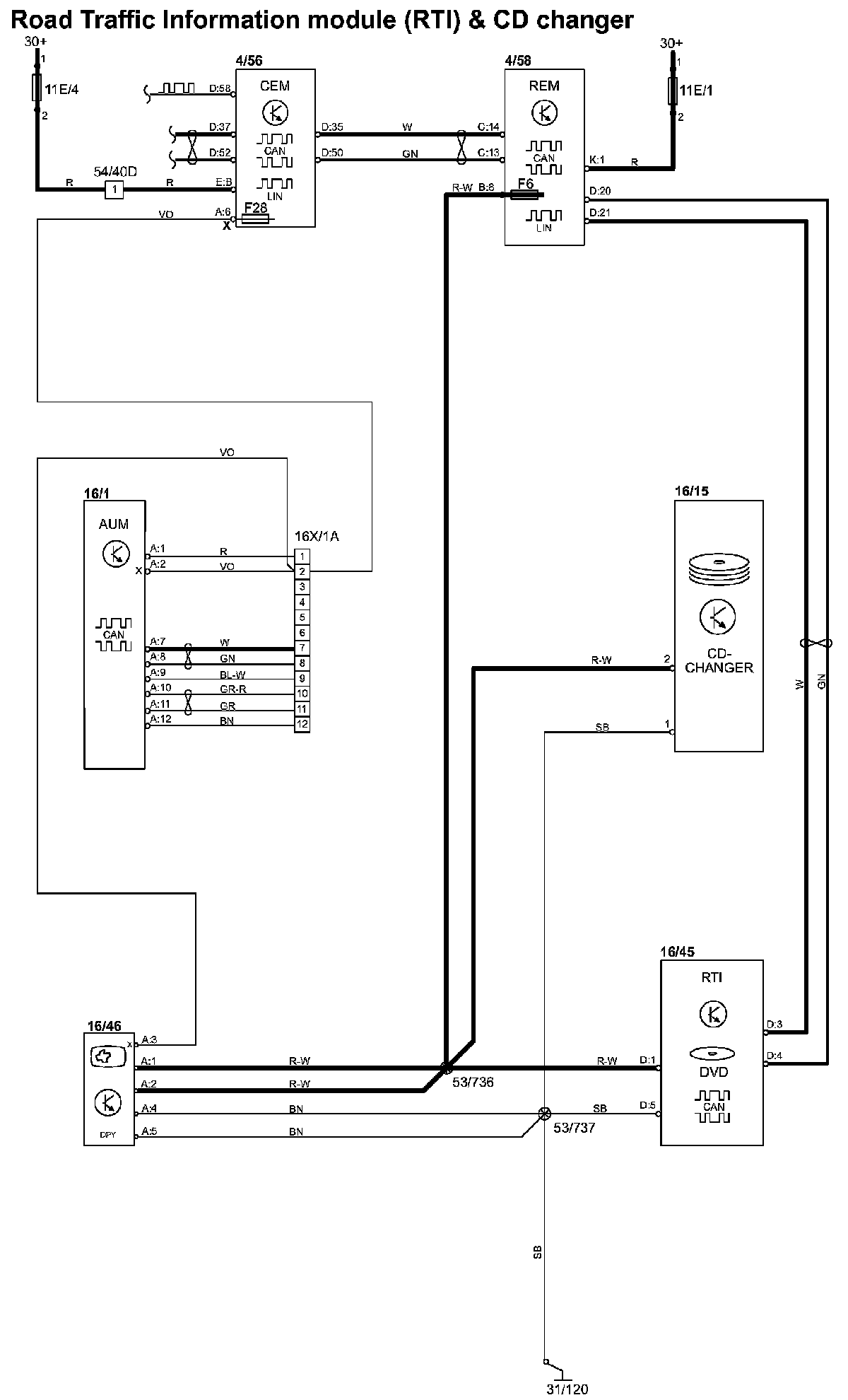

Road Traffic Information Module (RTI) & CD changer


Road Traffic Information Module (RTI) & CD Changer:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
