Navigation Module

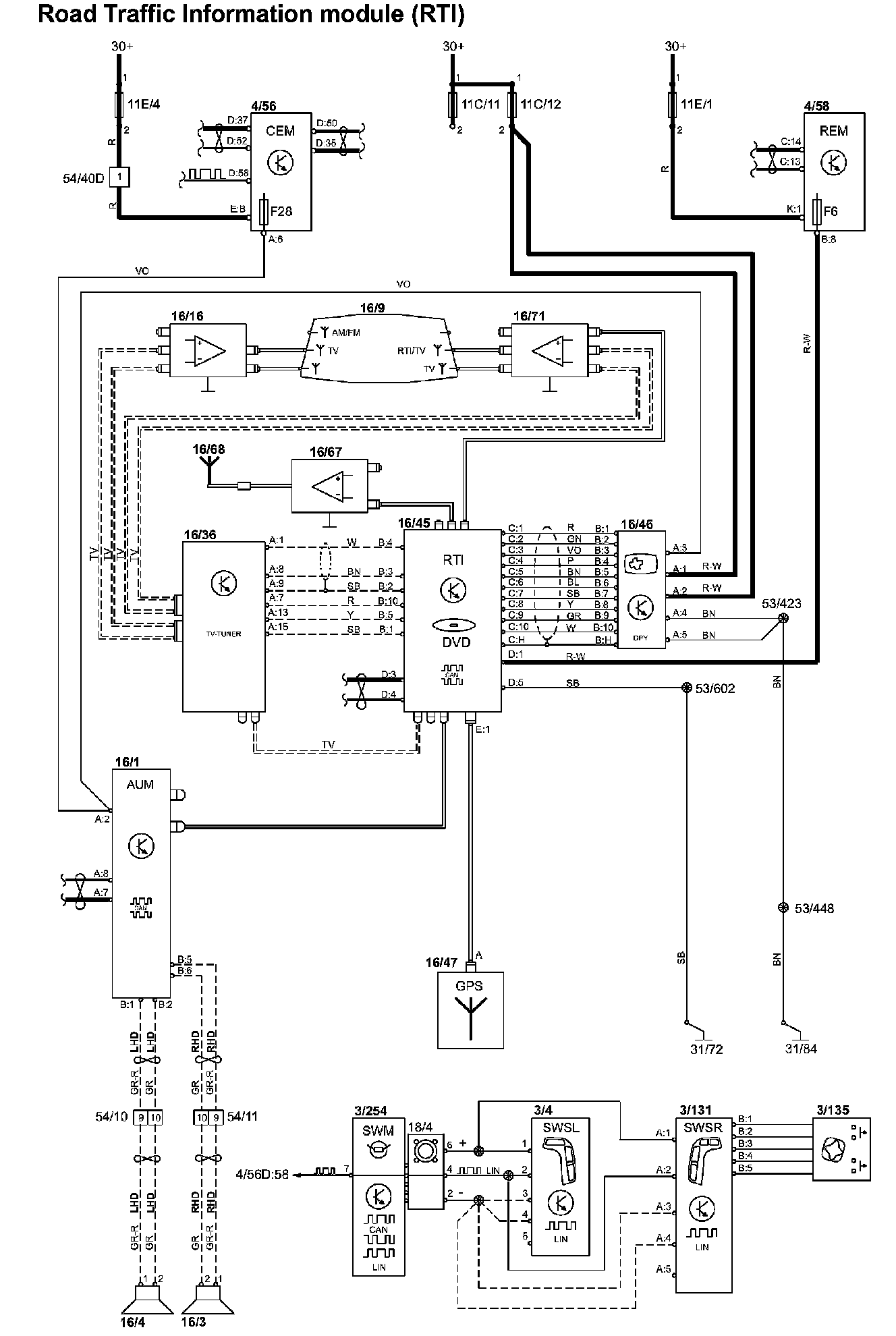

Road Traffic Information Module (RTI)

Road Traffic Information Module (RTI):

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
