R.H.D

Bushing, push rod, replacing

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work
Remove the brake lamp switch in accordance with: Stop lamp switch, replacing Service and Repair.

Removing the bushing

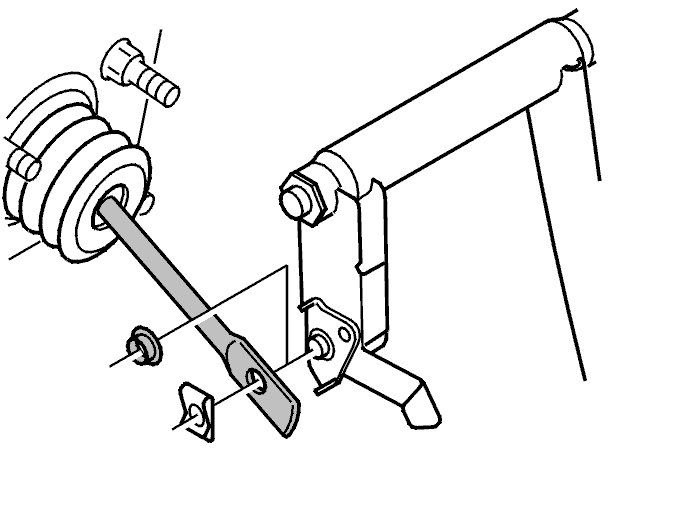

Remove the old bushing, for the push rod, located on the bracket.

Installing the bushing




Fit the new bushing. Lubricate with grease, part no. 1161241-3.

Finishing
Fit the brake lamp switch in accordance with: Stop lamp switch, replacing Service and Repair.
