Signal Specification, Brake Control Module (BCM) With STC/TRACS

Signal specification, brake control module (BCM) with STC/ TRACS

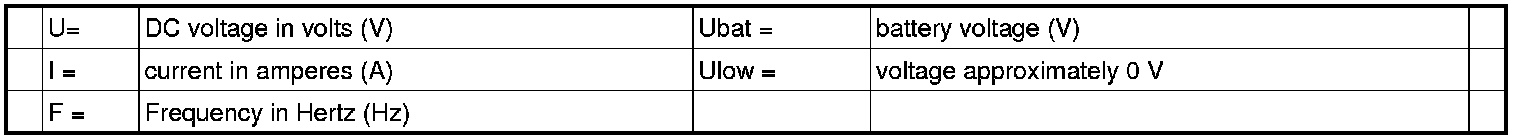

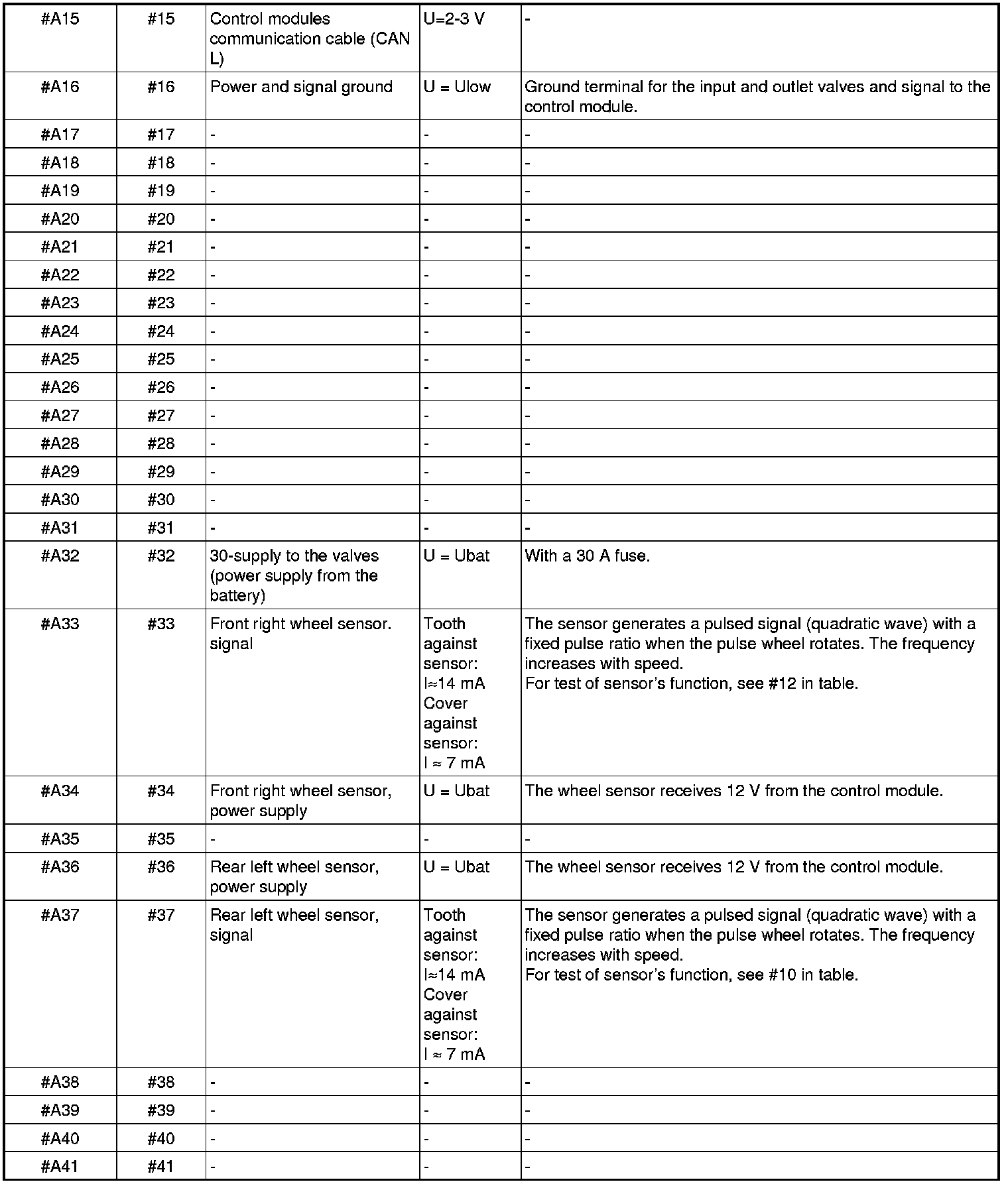

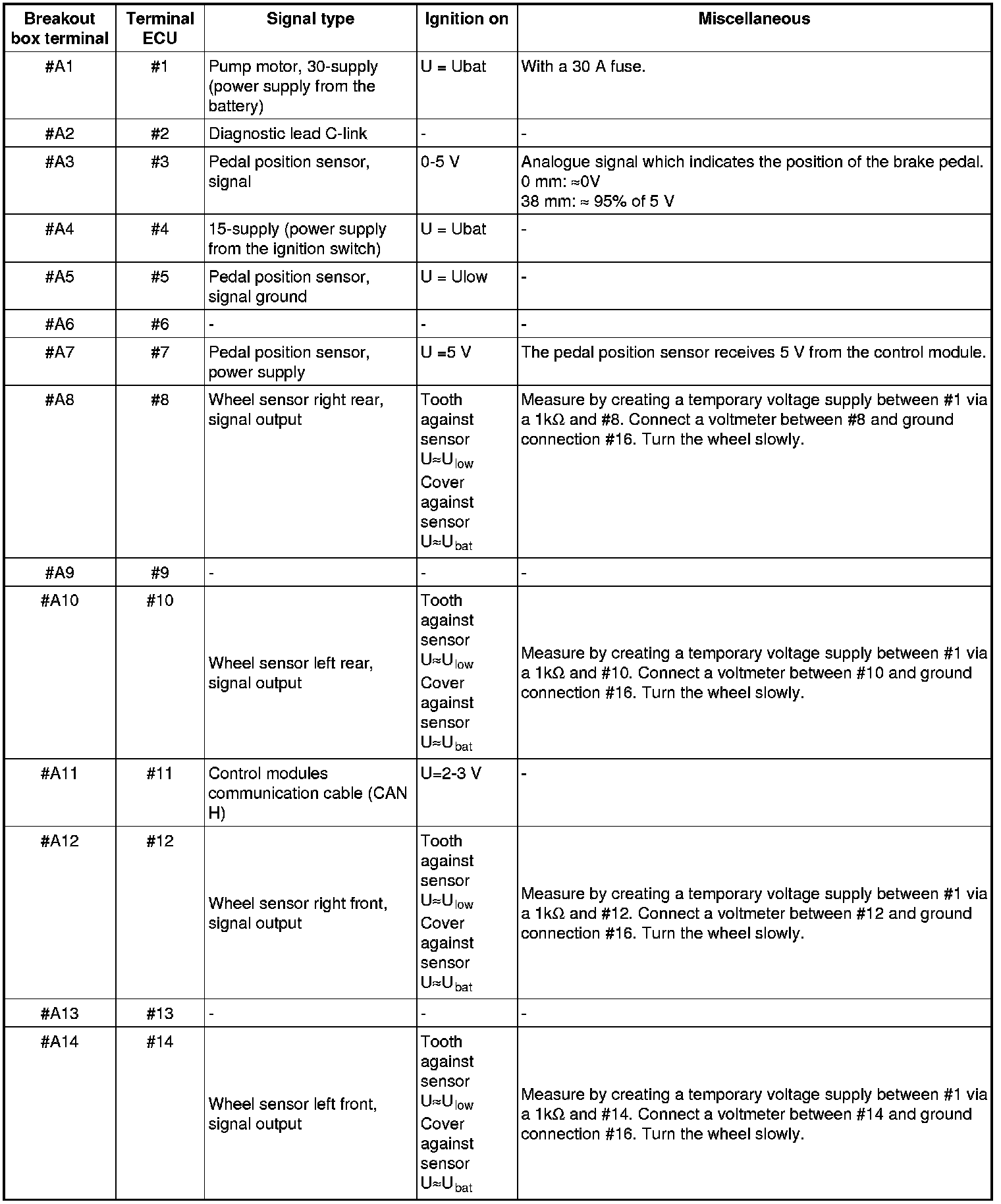

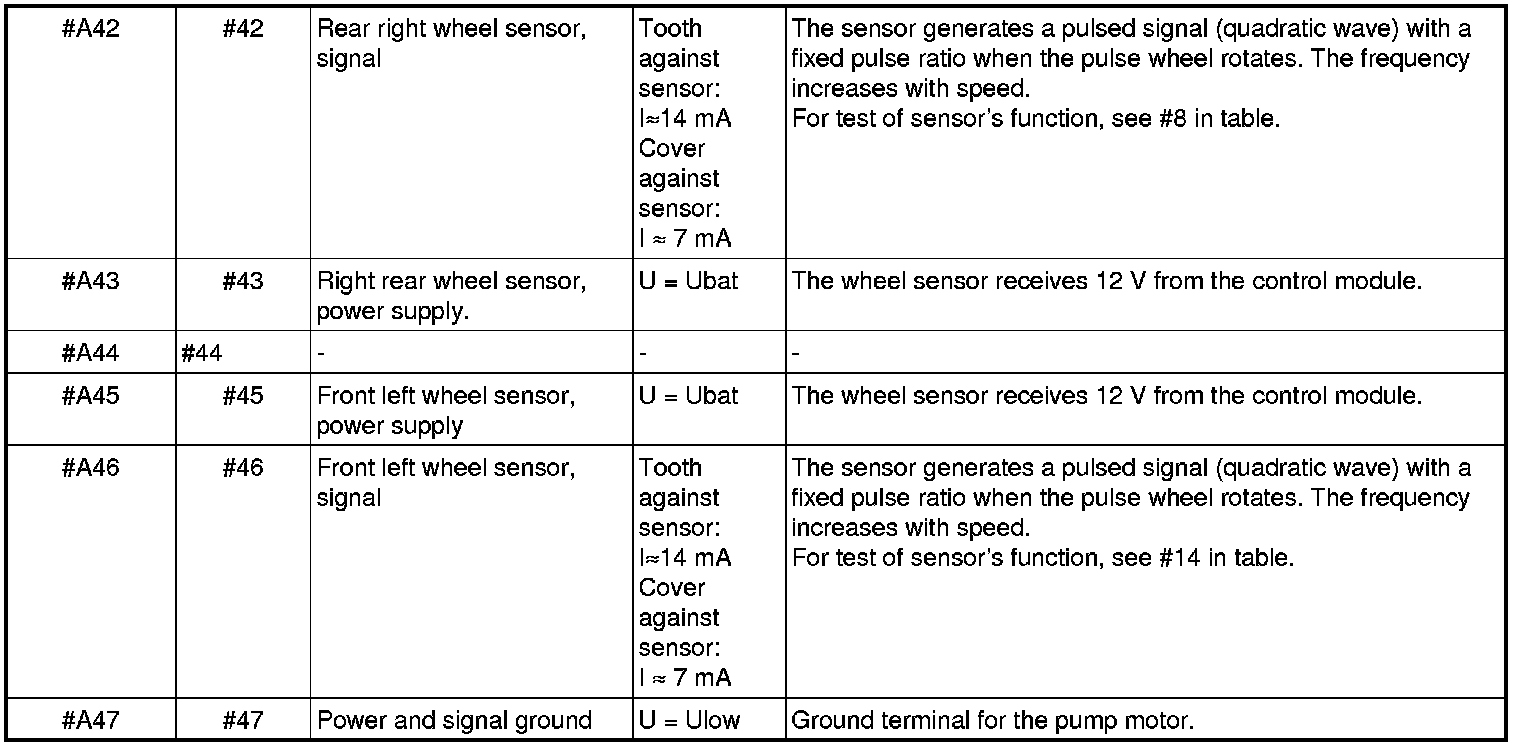

All values given are between the relevant terminal in column 1 and terminal #A16 or #A47 (ground), unless otherwise indicated in brackets.
Pins 6, 9, 13, 17-31, 35, 38-41 and 44 are not used.

Note! It is important that the breakout box is connected and that the ground connections have been checked before starting to measure.
