Trunk Lid Spoiler

Trunk lid spoiler

Operation number: 89106-x

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.









Remove the plastic cover from the trunk lid. Refer to: Plastic cover, trunk lid, replacing .

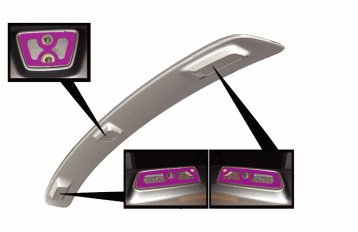

Use 2 T handles 951 2333 handle 951 2333 Handle and cutting wire 115 9785 PIANO WIRE 0.5 MM 115 9785 Piano Wire 0.5 mm.

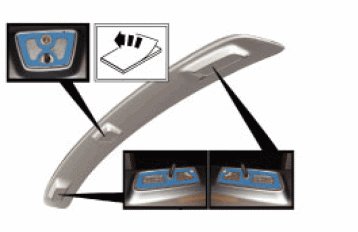

Caution! Make sure that the surface is clean and free of foreign material.

Use: Isopropanol, 1161721

blended with 50% water.

Note! Use lint free cloth.

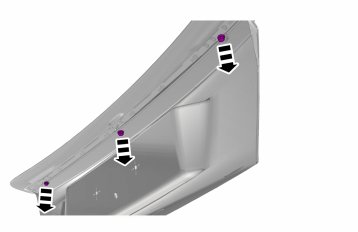

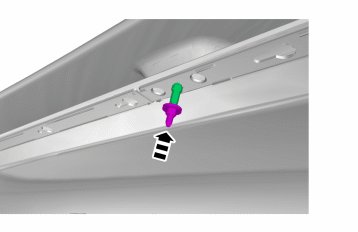

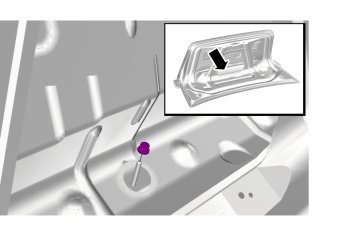

Drilling template for new plastic cover. Refer to: Drilling template, spoiler, trunk lid Description and Operation.

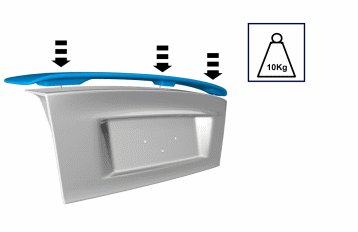

Installation





Caution! Make sure that the surface is clean and free of foreign material.

Use: Isopropanol, 1161721

blended with 50% water.

Note! Use lint free cloth.













Caution! Make sure that the surface is clean and free of foreign material.

Use: Isopropanol, 1161721

blended with 50% water.

Note! Use lint free cloth.

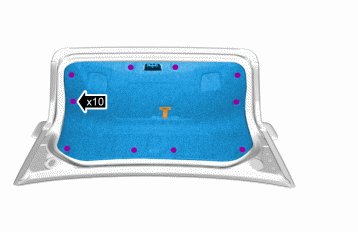

Remove the plastic cover and the spoiler at the trunk lid. Refer to: Plastic cover, trunk lid, replacing .

Note! The top of the plastic cap should separate from the plastic cap.
