Rear End Collision Module Front Seat

Rear end collision module front seat

Operation number: 85244-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.

Only applies to vehicle with fixed backrest.
Remove the front seat according to: Refer to: Front seat, replacing Front Seat, Replacing.





Caution! The operation must be performed on both sides of the seat.

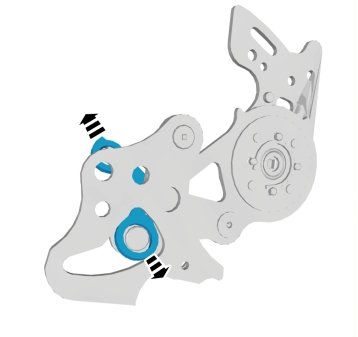

Note! On both sides.

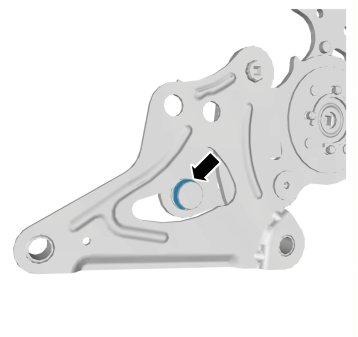

Note! On both sides.

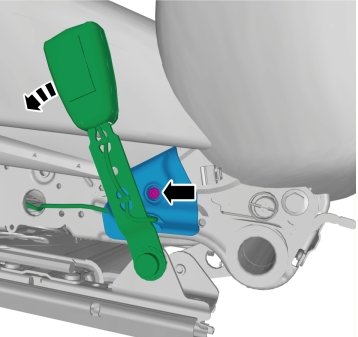

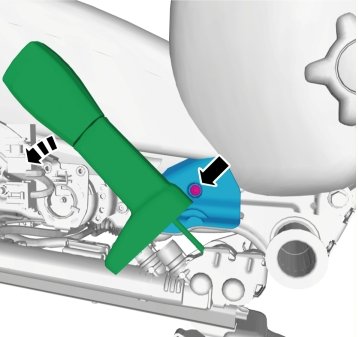

Torque: Backrest cushion to seat cushion , 45 Nm.

Loosen and fold aside the backrest cushion's upholstery according to: Refer to: Upholstery back rest, replacing Upholstery Back Rest, Replacing.

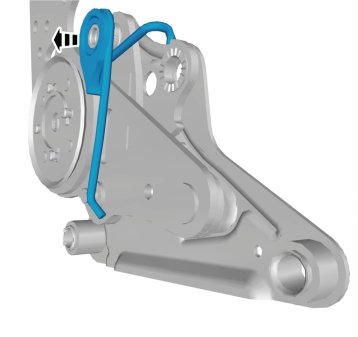

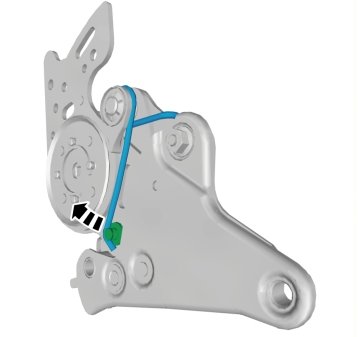

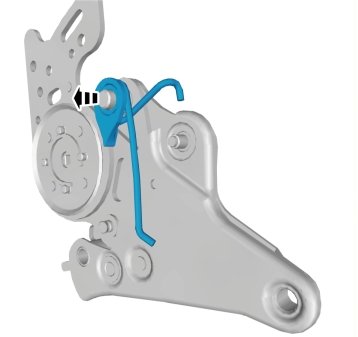

Warning! Be extra careful when handling the compressed spring.

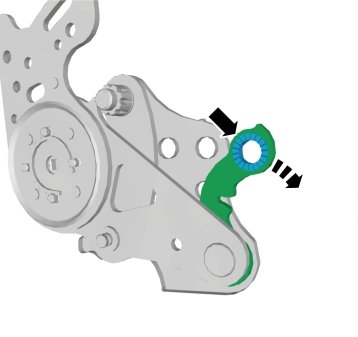

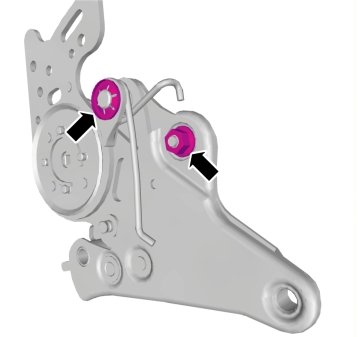

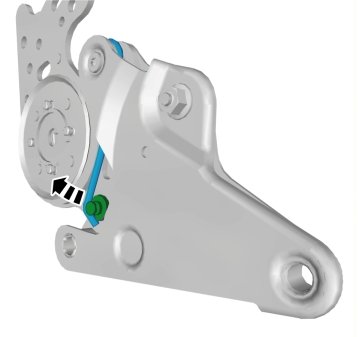

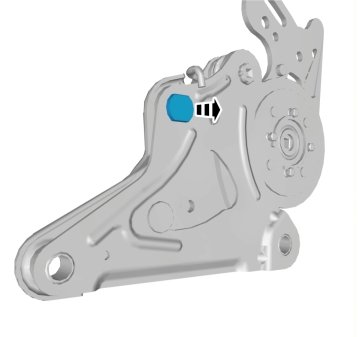

Torque: Fitting bolt, hinge, 18 Nm.

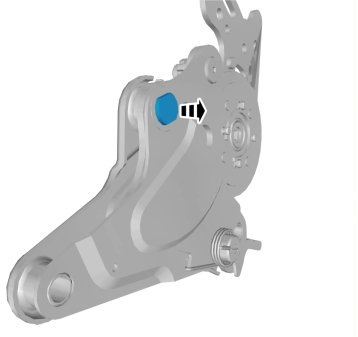

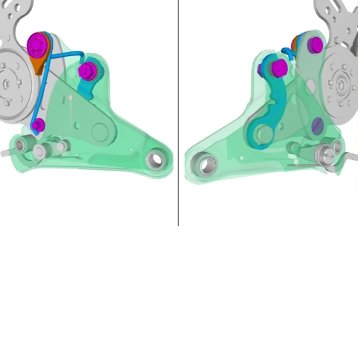

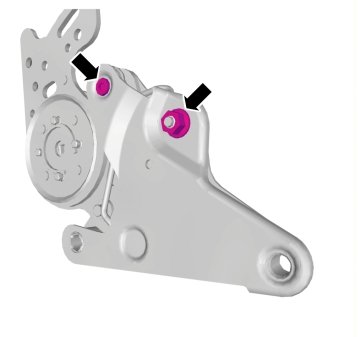

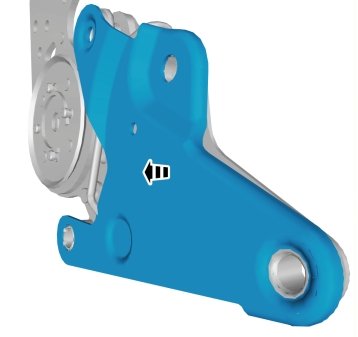

Torque: Hinge bracket to backrest, 9 Nm.





























Only applies to vehicle with foldable backrest.
Remove the front seat according to: Refer to: Front seat, replacing Front Seat, Replacing.





Caution! The operation must be performed on both sides of the seat.

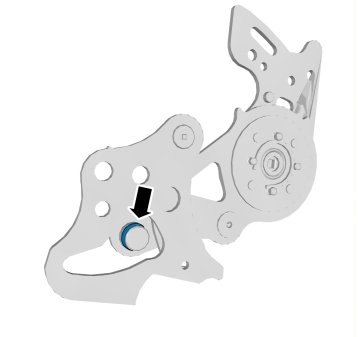

Note! On both sides.

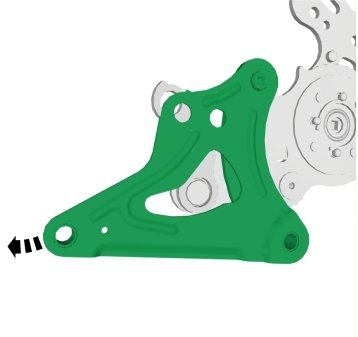

Note! On both sides.

Torque: Backrest cushion to seat cushion , 45 Nm.

Loosen and fold aside the backrest cushion's upholstery according to: Upholstery back rest, replacing Upholstery Back Rest, Replacing.

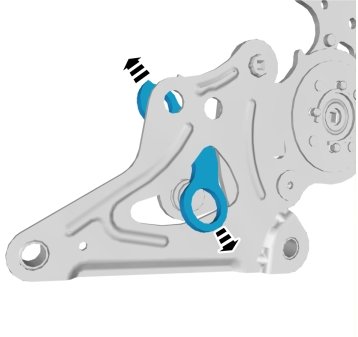

Warning! Be extra careful when handling the compressed spring.

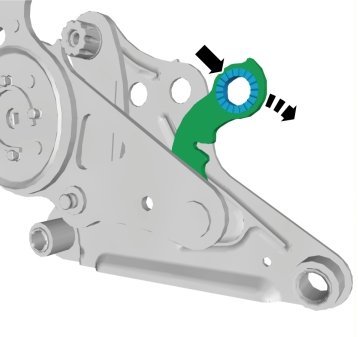

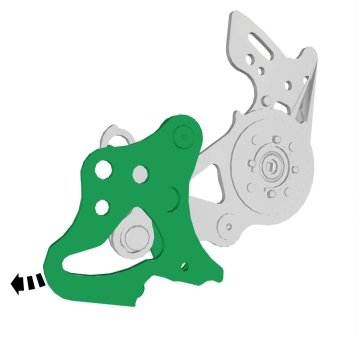

Torque: Fitting bolt, hinge, 18 Nm.





























Installation

To install, reverse the removal procedure
