Seat Rail

Seat rails front seat, replacing

NOTE: The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

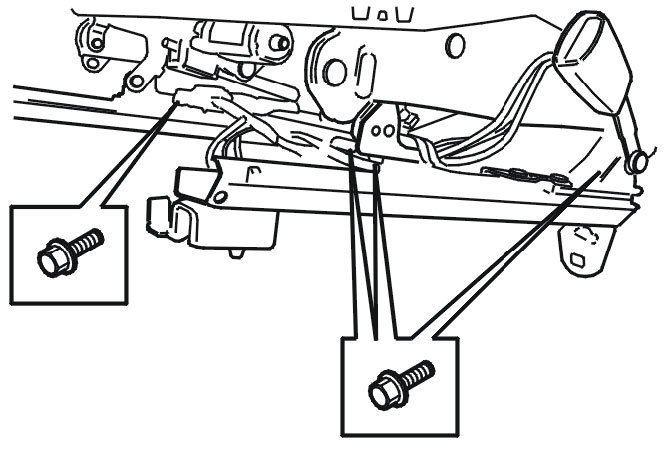

Removing the seat rails

Remove:
- the front seat.
- the seat belt buckle.
- the motor for front-rear adjustment.







- 4 x M8 stud screws.

- the 4 rivets.
- seat rails.

Installation

NOTE: For tightening torques, see: Specifications. Specifications

Installing the seat rails

Install:
- 4 rivets
- seat rails.

NOTE: Apply a drop of locking fluid before installing the stud screws.

Install:
- 4 x M8 stud screws. Tighten
- the seat belt buckle.
- the motor for front-rear adjustment.
- the front seat.
