Rear View Mirror External

Rear view mirror external

Operation number: 84622-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.

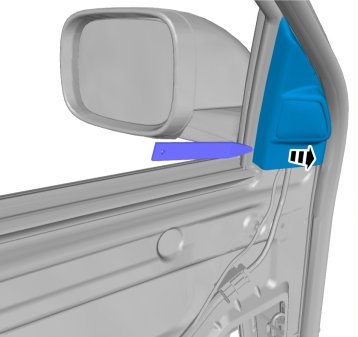

Remove the door panel. Refer to: Replacing the front door side panel Front Door Side Panel.

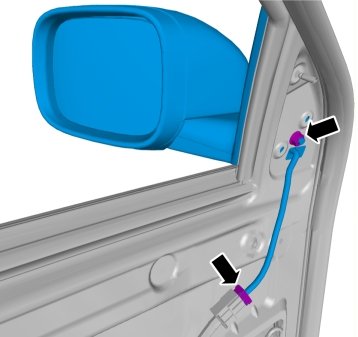

Torque: Rear view mirror to front door , 20 Nm





Installation

Install in the reverse order.
