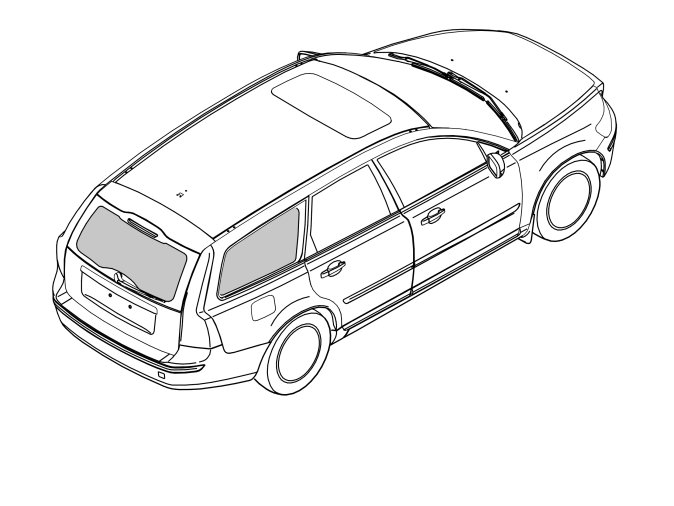

Cargo Compartment Sun Blind

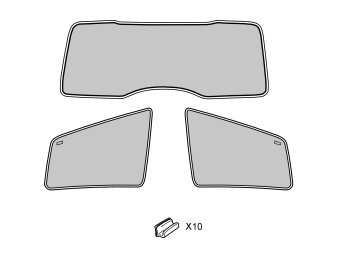

Cargo compartment sun blind


















Cargo compartment sun blind

Note! The sun blinds open using spring force.

Side sun blind




The sun blinds are the same for the right and left-hand sides.

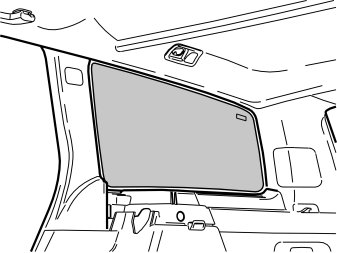

- Hold the side sun blind up against the side window. Ensure that the Volvo decal is towards the rear of the car and secured at the top edge
- Press the edges of the sun blind against the side window.

- Repeat the operation on the other side window.

Rear sun blind

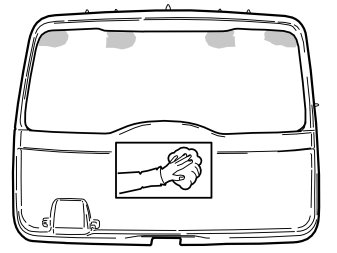

- Clean the marked surfaces (as illustrated) on the rear windscreen, where the holders for the sun blind are to be installed. Use a mixture of 30% windscreen washer fluid and 70% water
- Wipe dry.

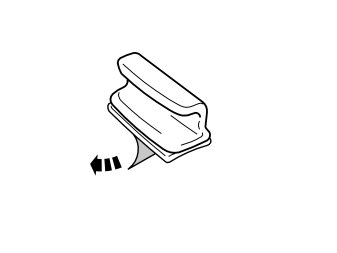

- Remove the masking tape from the four holders. The holders secure the sun blind at the top edge of the rear windscreen.

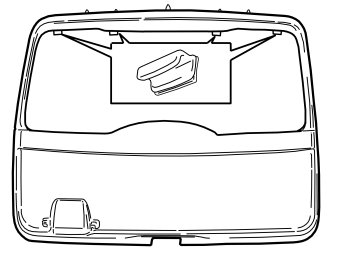

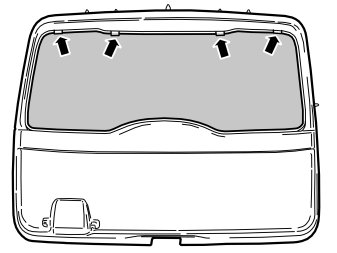

- Press the four holders into place on the rear windscreen, as close to the top and bottom edges of the panel as possible.




- Hold the rear windscreen sun blind up against the rear windscreen. Ensure that the Volvo decal is at the top edge
- Hook the sun blind into the holders on the rear windscreen
- Press the edges of the sun blind against the rear windscreen.

Packing up the sun blind

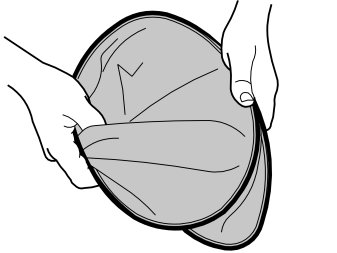

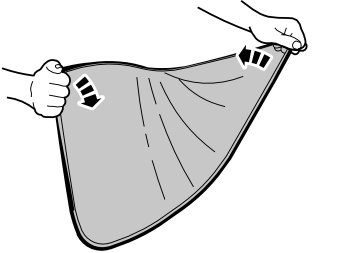

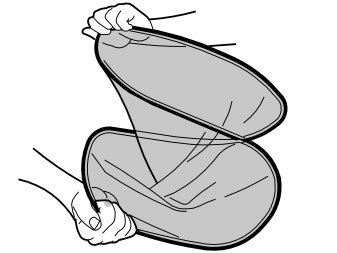

- Grip two diagonal corners and twist the sun blind as illustrated. Turn the sunblind on itself. Minimal force is required to fold the sun blind.
