Mug Holder, Front

Mug holder, front










Mug holder, front

Illustration A





Illustration B




- Open the centre console cover

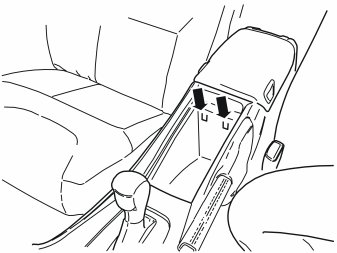

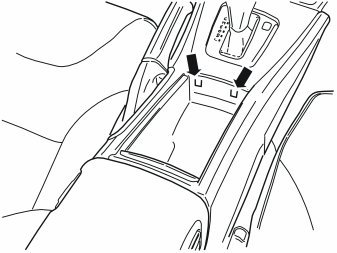

- Press in the two perforated snap washers in the front and the rear edges of the centre console.

Illustration A





Illustration B




Note! It may be necessary to release and lift the rear edge of the gear selector panel when the front section of the mug holder is being pushed down.

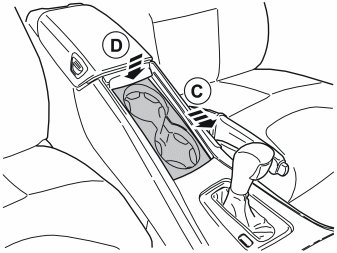

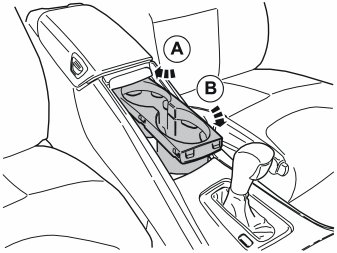

Insert the upper/rear edge of the mug holder first (A), fold down the front edge (B) and slide into the two cut outs at the front (C)
- Press the rear edge (D) down into the rear holes until a click is heard
- Press the gear selector panel into the rear edge if removed.
